ESIE07-04 The Digital Controller
Part 2 – Functional Description 2–69
3
2
4
5
1

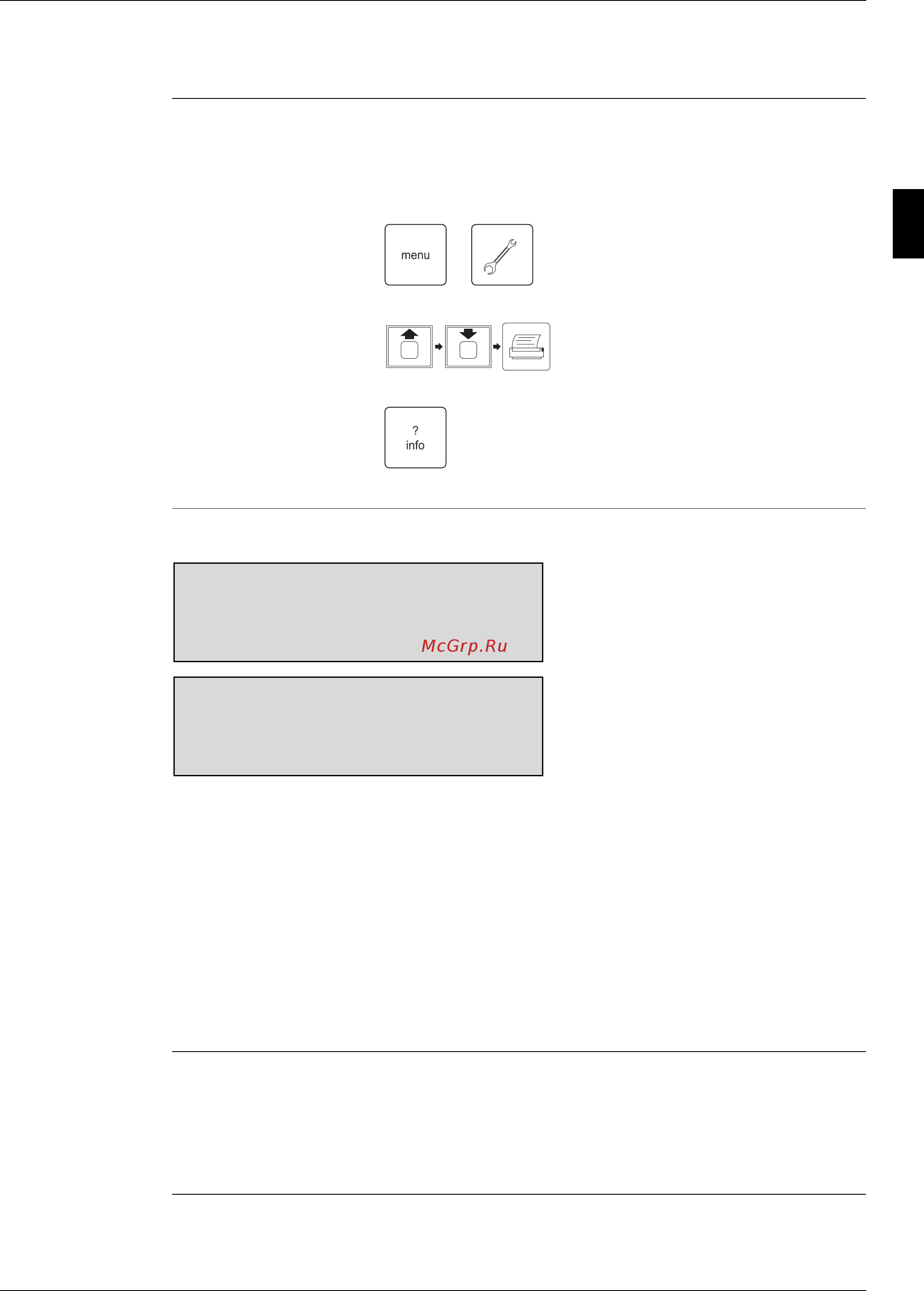

2.4.11 Service Menu
Operational
information
Using this menu you can operate the different circuits in manual mode. When the chiller is working in
manual mode and a safety prevention is met (LP prevention / HP prevention / Freeze prevention / ...),
the chiller will automatically switch over to normal (auto) mode. This is to prevent the unit from tripping.
This function can only be used during commissioning or troubleshooting.
Compressor
manual mode
These screens allow you to operate a compressor in manual mode.
Remark : Switching between auto and manual mode can be done without compressor stop.
Service menu on
control board # 2
(comp 3 and 4)
If compressor 3 or 4 is present, you can scroll between control board # 1 (comp 1 and 2) and control
board # 2 (comp 3 and 4).
When you press the info button, the following screens will appear for control board # 2 :
P Compressor manual mode screens (see page 2–69)
Key :
+
Password :
Switching between
control board # 1 and # 2 :
P Compressor # 1 : Compressor circuit 1
P Manual Load : The requested load during manual mode (25% till 100%)
P State :
Auto : Manual mode is disabled
Manual : Manual mode is enabled, unit will work with manual load setpoint
Off : Compressor is disabled (switched off)
Compressor # 1
Manual Load 050 %
State Auto
Compressor # 2
Manual Load 050 %
State Auto
