The Digital Controller ESIE07-04
2–24 Part 2 – Functional Description
3
1
2
4
5

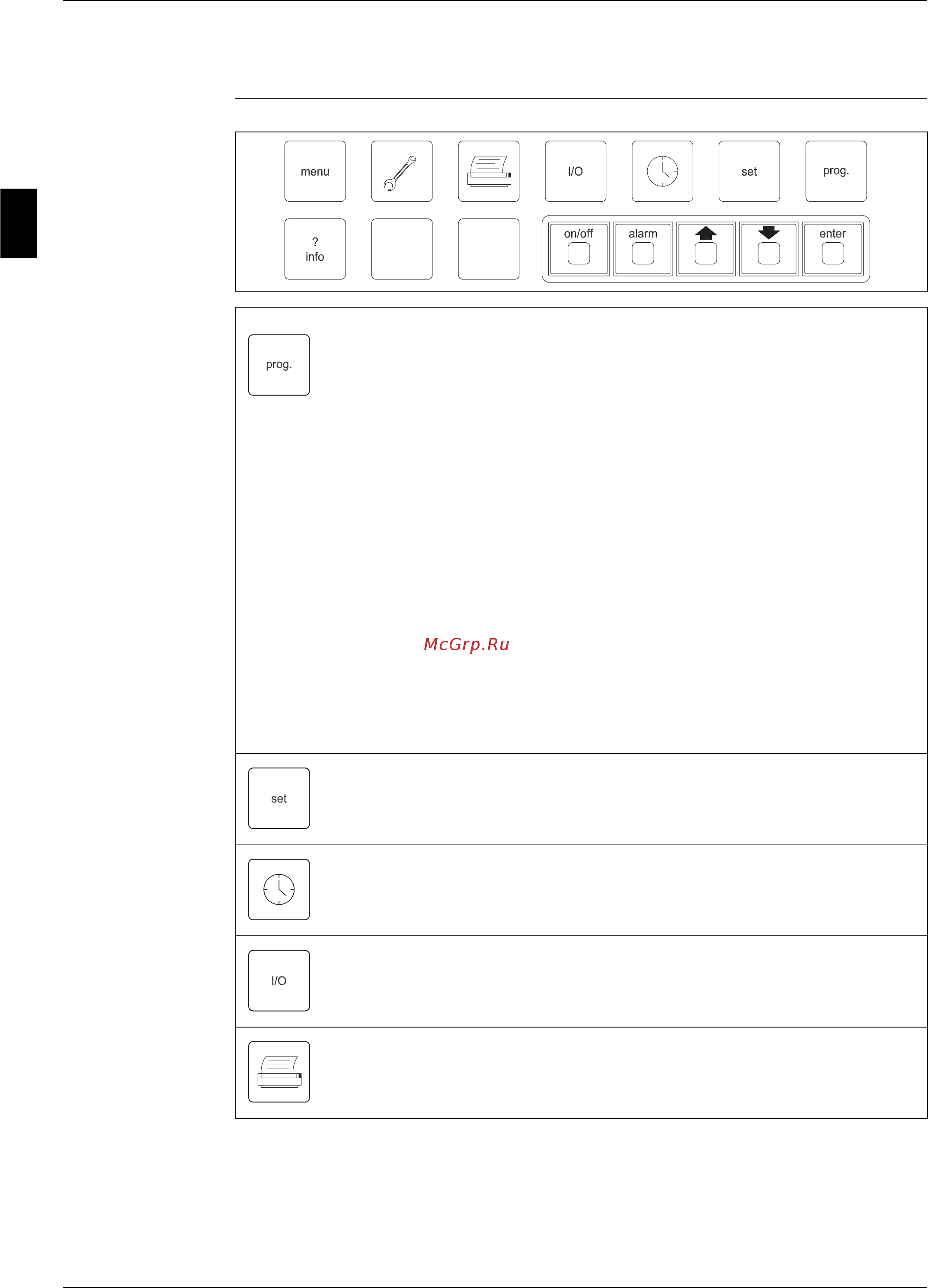

2.4.2 Keypad Keys and their Functions
User parameters, by password it is possible to set the following parame-
ters:
P Setpoints reset parameters
P Enable double setpoint
P Soft load parameters
P Unit load limiting parameters
P Compressor sequencing logic
P Fan Silent Mode values
P Main pump timing
P Digital and supervisor inputs enabling
P Auto restart after power failure and external alarm behaviour
P Time scheduling
P Supervisor communication parameters
P Interface language
Setpoints adjustment within the limits set under maintenance password
Date and time setting
Input/Output and corresponding circuit functions visualization
(=print)
Print (not available)
