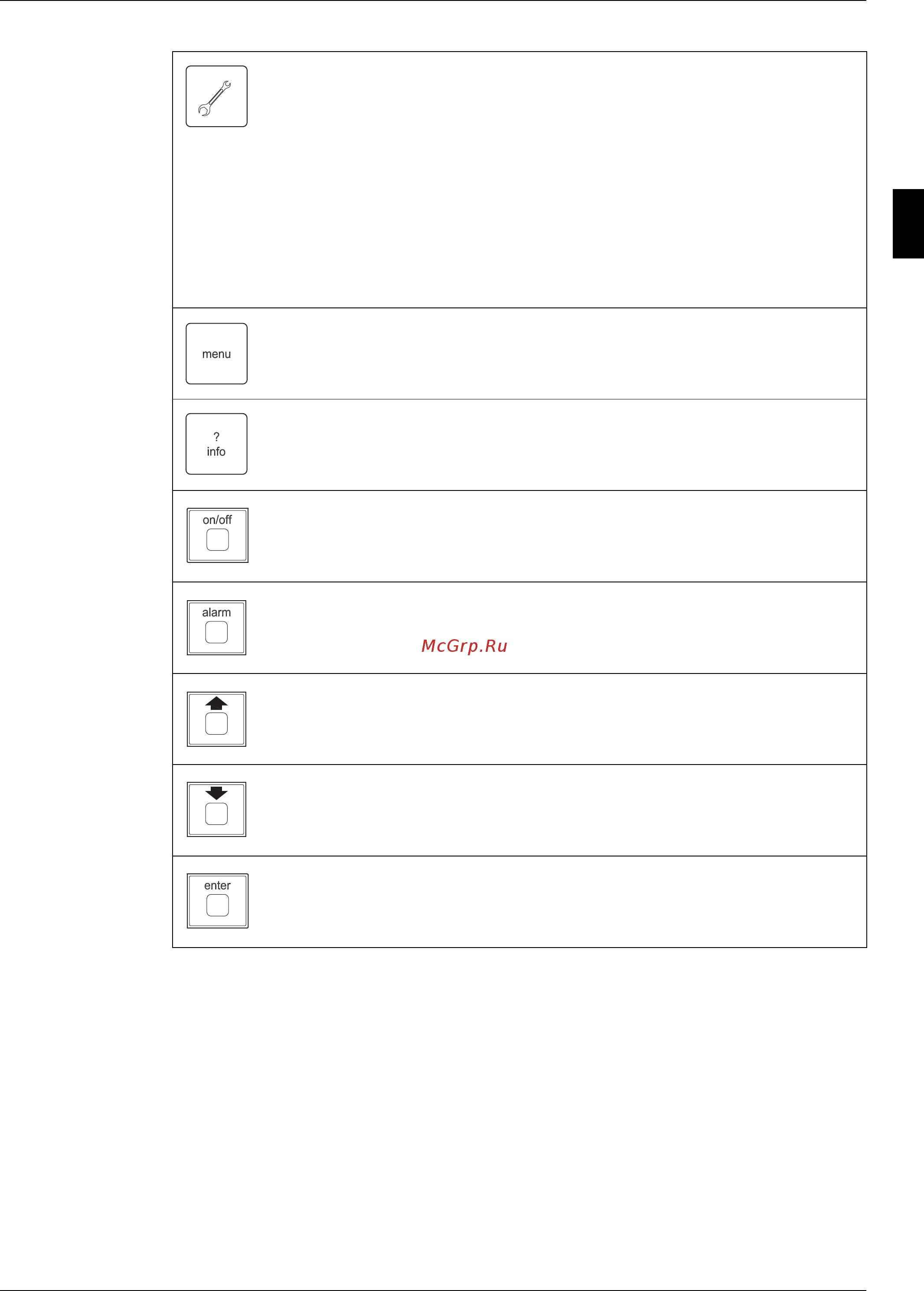

ESIE07-04 The Digital Controller
Part 2 – Functional Description 2–25
3
2
4
5
1
(=maint)
Maintenance parameters; by Password it is possible to set the following
parameters :
P Hour and start counters reset
P Water regulation parameters
P Condensation regulation parameters
P Setpoint limits
P Probes enabling
P Probes offset
It allows to visualize the main menu
It allows the passage from a control board to the other one (visualizing
parameters of corresponding compressors, more precisely compressors
# 1 and # 2 for board # 1 and compressors # 3 and # 4 for board # 2)
Key On/Off unit
It indicates the presence of possible anomalies and their causes
(=up)
It allows the passage to the previous display screen
(=down)
It allows the passage to the next display screen
It enables the set values
