The Digital Controller ESIE07-04
2–26 Part 2 – Functional Description
3
1
2
4
5

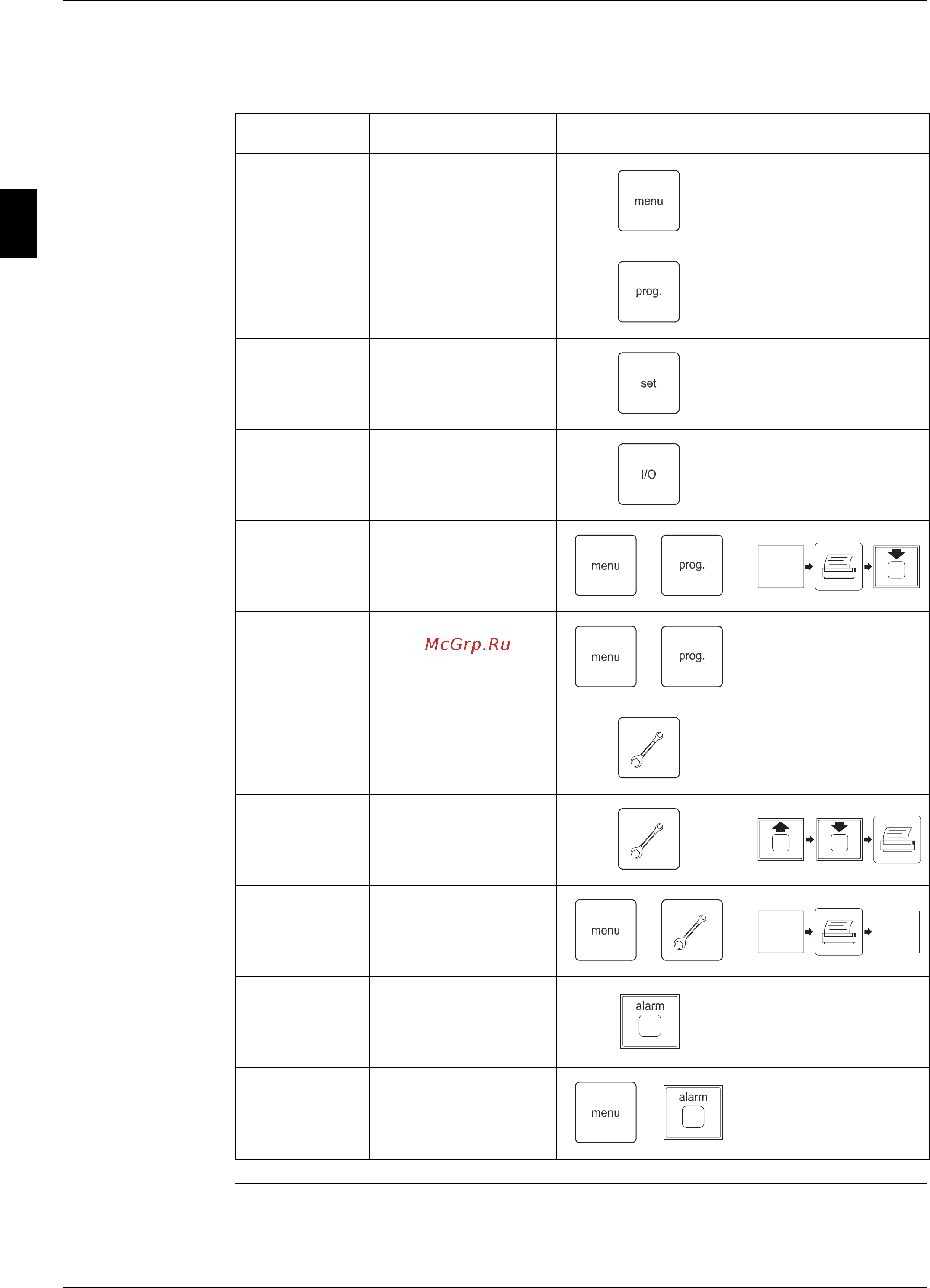

Using the keypad it is possible to access the different sections of the program. In particular there are
9 screen categories, shown in the following table with the keys to use to access them and with the type
of operation they allow.
Category Description Keys Password
Main
Operating parameters
access (output)
NO
User
Parameters setting by
user (input)
0003
Setting
Setpoint setting
(input/output)
NO
Input/Output
Compressors working
parameters display
(output)
NO
Manufacturer
Manufacturer
parameters setting
(input)
+
EXV Setting
EXV working parameter
settings (input)
+
0013
Maintenance
Output
Maintenance parameter
access (output)
NO
Maintenance
Input
Maintenance parameter
access (input)
Service Service (input)
+
Alarm Alarms (output) NO
Alarm
history
Storage of last 10
alarms (output)
+
NO
blue
Yellow blue
