General Outline ESIE07-04
1–70 Part 1 – System Outline
3
1
1
4
5

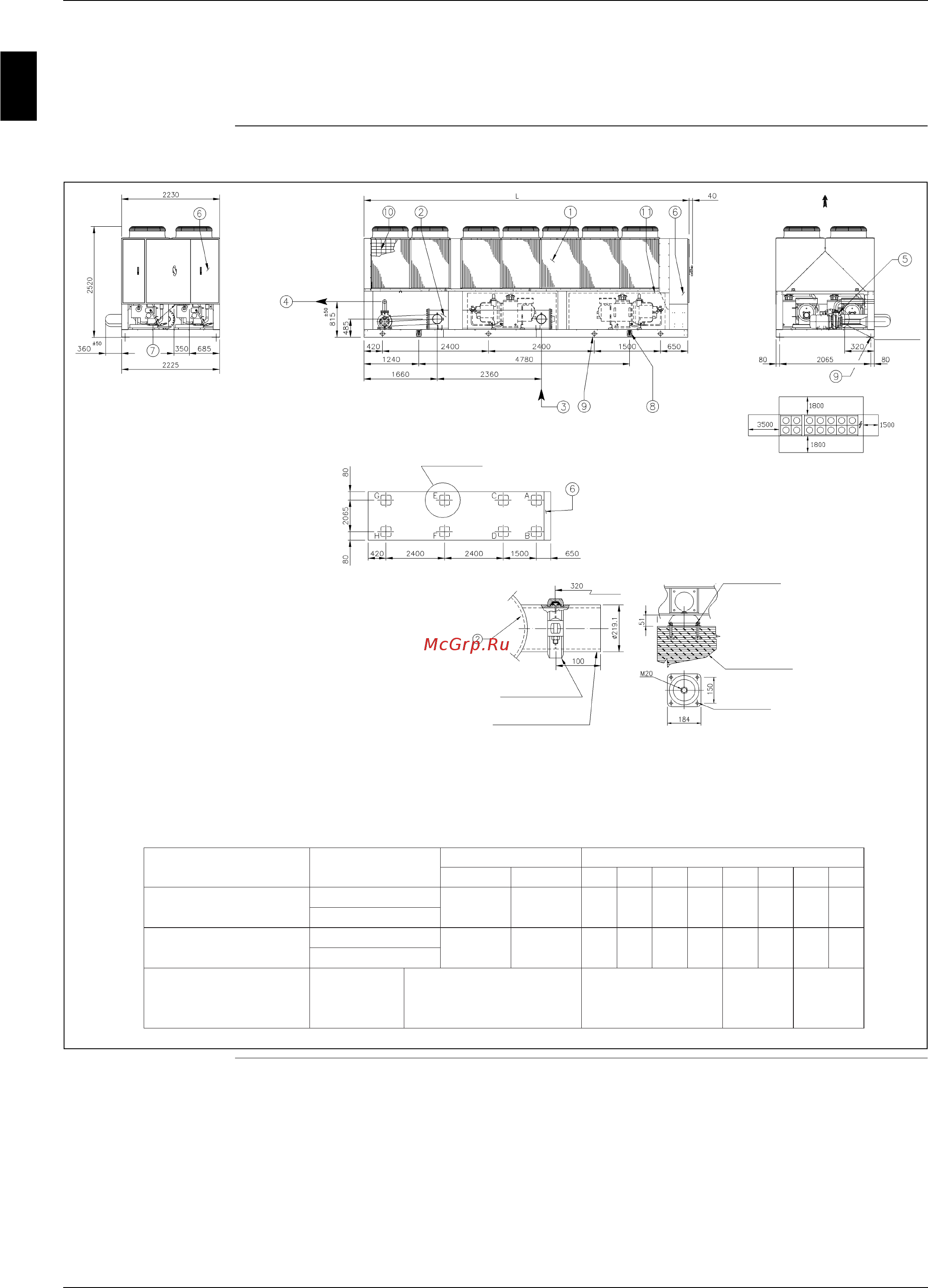

1.39 Outlook Drawing: EWAD950BJYNN+OPSP, EWAD950BJYNN+OPRN+OPSP and
EWAD950BJYNN+OPLN+OPSP
The illustration below shows the outlook, the dimensions and the installation and service space of the
unit (mm).
(Frame)
(Control box)
Air discharge
See
detail B
Fan arrangements and minimum
clearance requirements
See detail A
Isolators location
Detail "A" rubber isolator
Fixing bolt (not furnished)
Refer
Detail B
''Victaulic''coupling-furnished
Connecting pipe-furnished
Concrete footing
I.D. 13 N. 4 holes
Version Condenser Type
Weight KG
Type (q/ty)
786010-m
(4 Pz.)
786010-m
(2 Pz.)
786010-w
(2 Pz.)
Shipping Operating A B C D E F
1135 1135 890 890 1310 13107750 8170
Isolators load KG
Aluminum
Acrylic coated
Rubber isolators
EWAD950BJYNN+OPSP
EWAD950BJYNN+OPRN+OPSP
EWAD950BJYNN+OPSP
EWAD950BJYNN+OPRN+OPSP
EWAD950BJYNN+OPLN+OPSP
1195 1195 970 970
GH
750 750
750 7501350 13508110 8530
Aluminum
Acrylic coated
EWAD950BJYNN+OPLN+OPSP
L=7400 Unity with standard control panel
L=7500 Unity with soft starter in the control panel
