ESIE07-04 Procedure for Software Upload/Download
Part 3 – Troubleshooting 3–25
33
4
5
1
19
20

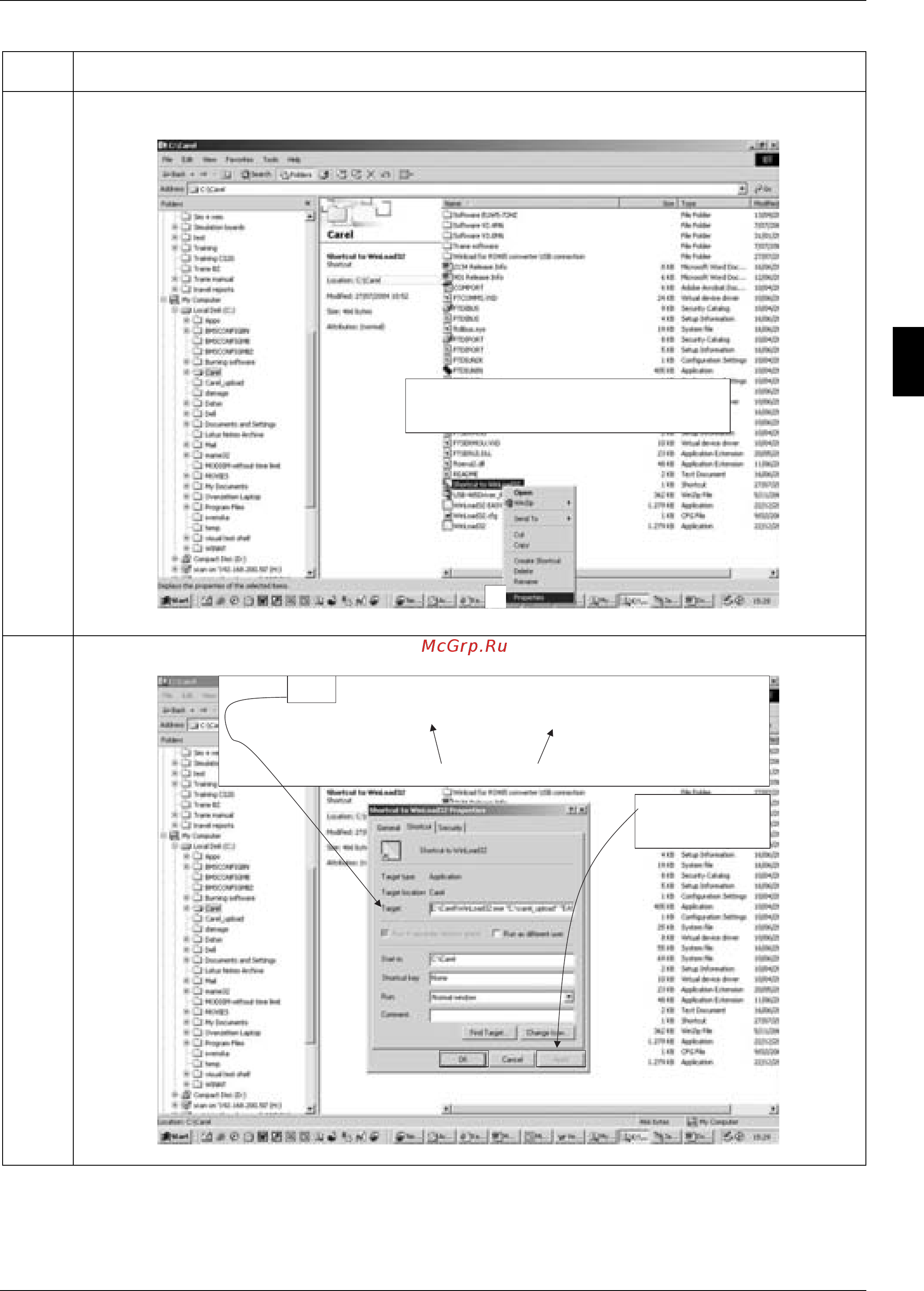

Step Action
1. Go to the shortcut “shortcut to winload32”
2. Select properties
1
2
1. Go to target and type
C:\Carel\WinLoad32.exe "C:\carel_upload" "EASY_BOOT "
don’t forget the place ‘spaces’
2. Press apply
3. Press OK
