EP2C626D24LM / EP2C622D24LM / EP2C621D24LM-AB
14 15
English

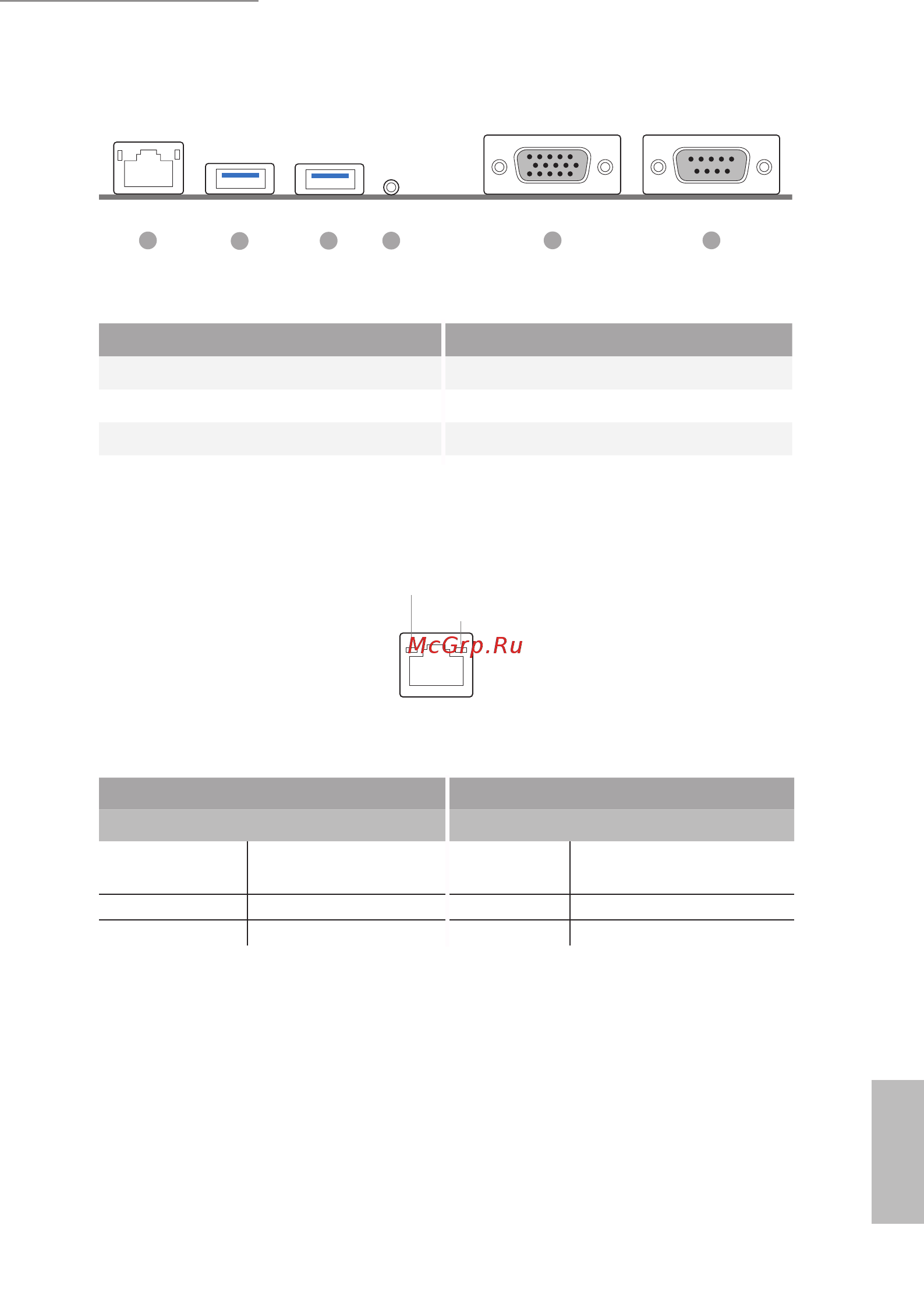

1.6 I/O Panel
6
1
2
3
4
5
No. Description No. Description
1 IPMI LAN Header (IPMI1) 4 UID Switch (UID)
2 USB 3.0 Port (USB3_1) 5 VGA Header (VGA1)
3 USB 3.0 Port (USB3_2) 6 Serial Port (COM1)
LAN Port LED Indications
*ere are two LED next to the LAN port. Please refer to the table below for the LAN port
LED indications.
Dedicated IPMI LAN Port LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10M bps connection or no
link
Blinking Yellow Data Activity Yellow 100M bps connection
On Link Green 1G bps connection
ACT/LINK LED
SPEED LED
LAN Port
