EP2C626D24LM / EP2C622D24LM / EP2C621D24LM-AB
68 69
English

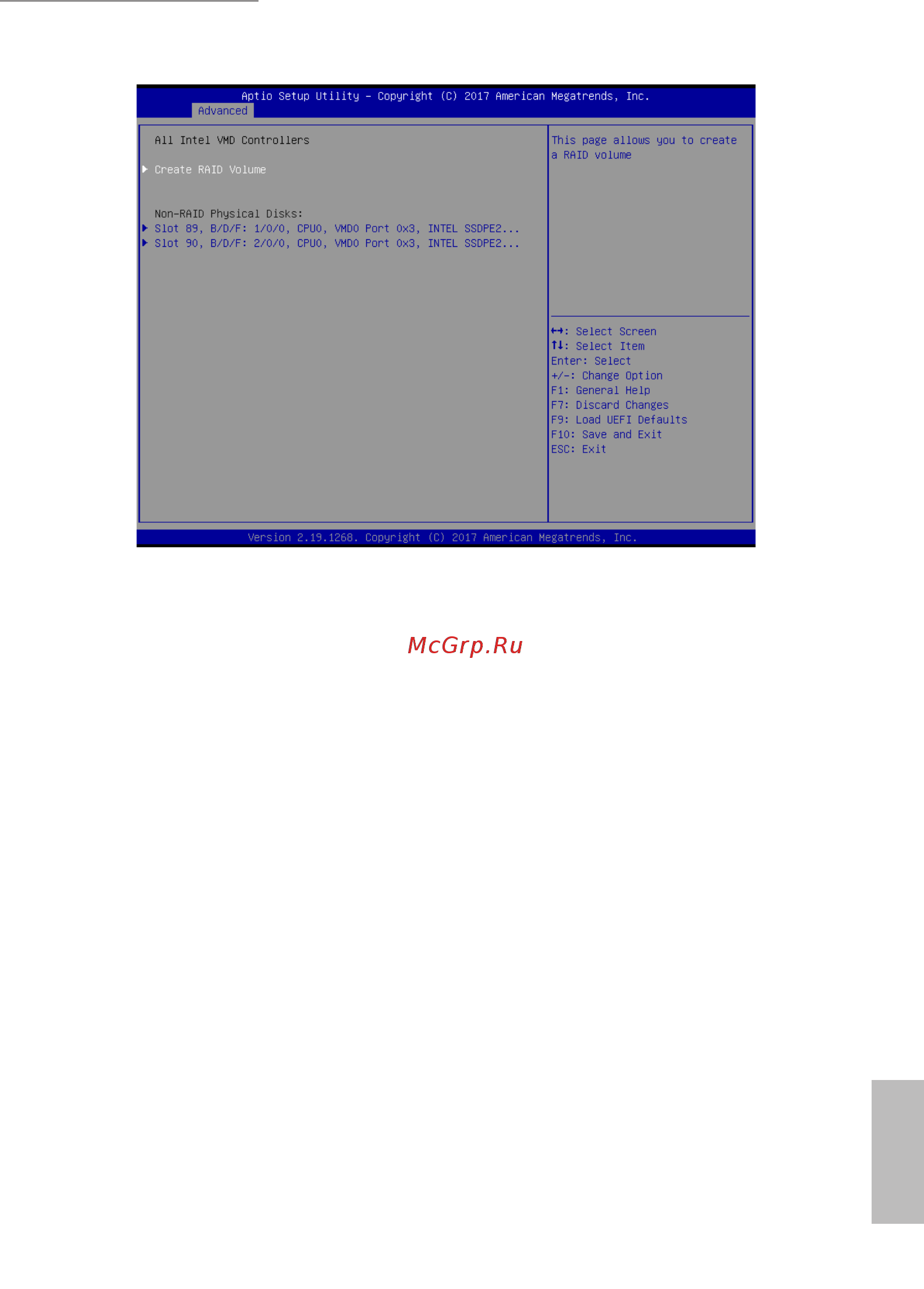

Create RAID Volume
is page allows you to create a RAID volume.
Non-RAID Physical Disks
(Available when no RAID is created.)
Select to see more information about the disk.
RAID Volumes
(Available aer the RAID has been created.)
Select to see more information about the RAID Volume.
Volume Actions
Delete
Select to delete the created RAID.
