70 71
English

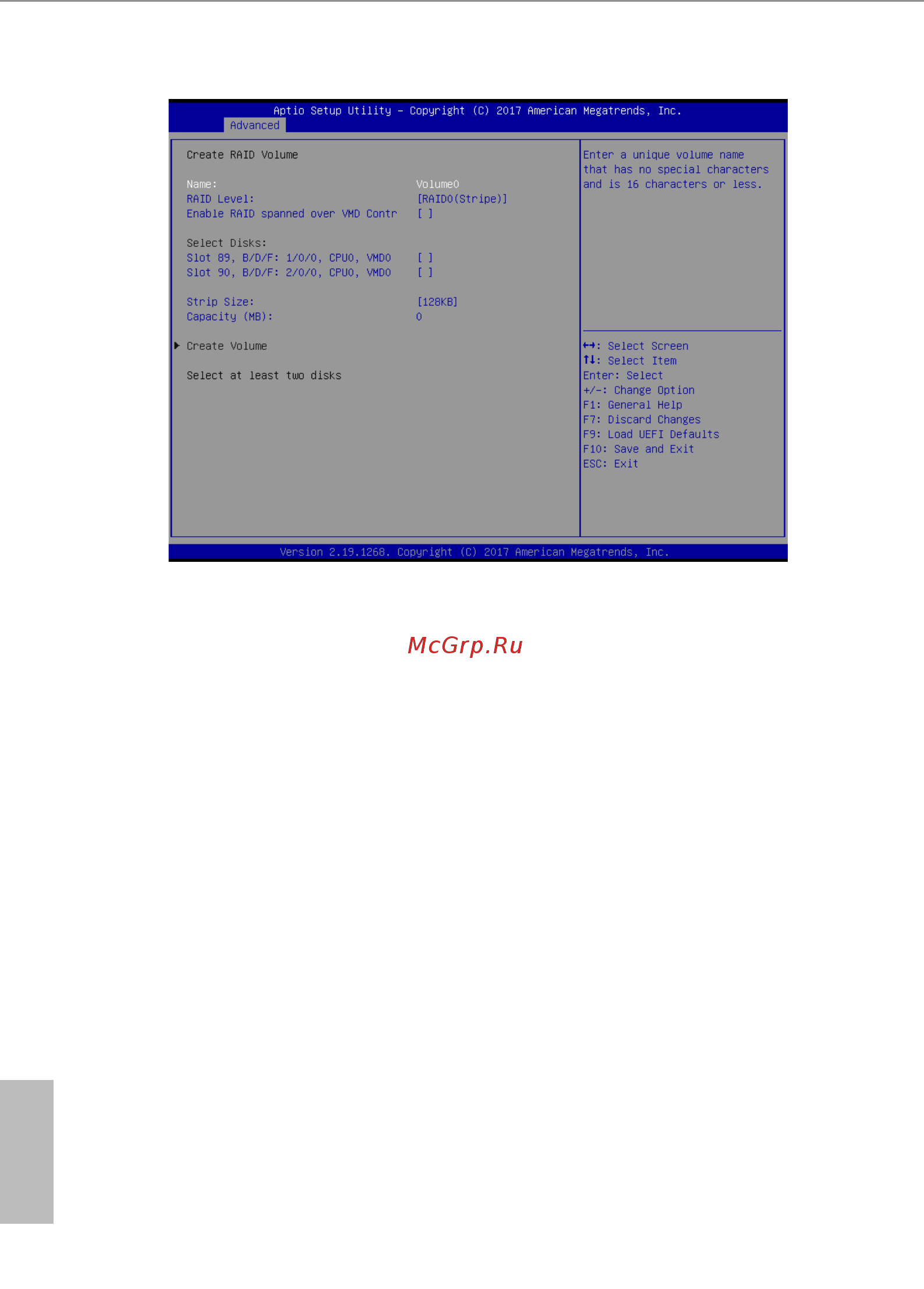

Name
Enter an unique volume name that has no special characters and is 16 charaters or less.
RAID Level
Select RAID Level.
Enable RAID spanned over VMD Controllers
Select [X] to enable RAID spanned over VMD Controllers.
Select Disks
Select [X] to select disks.
Strip Size
Select strip size.
Capacity (MB)
Determine the capacity in MB.
Create Volume
Select to start creating RAID immediately. (Available aer selecting at least two disks.)
