ASRock EP2C622D24LM [66/97] English
![ASRock EP2C622D24LM [66/97] English](/views2/1694459/page66/bg42.png)
60 61
English

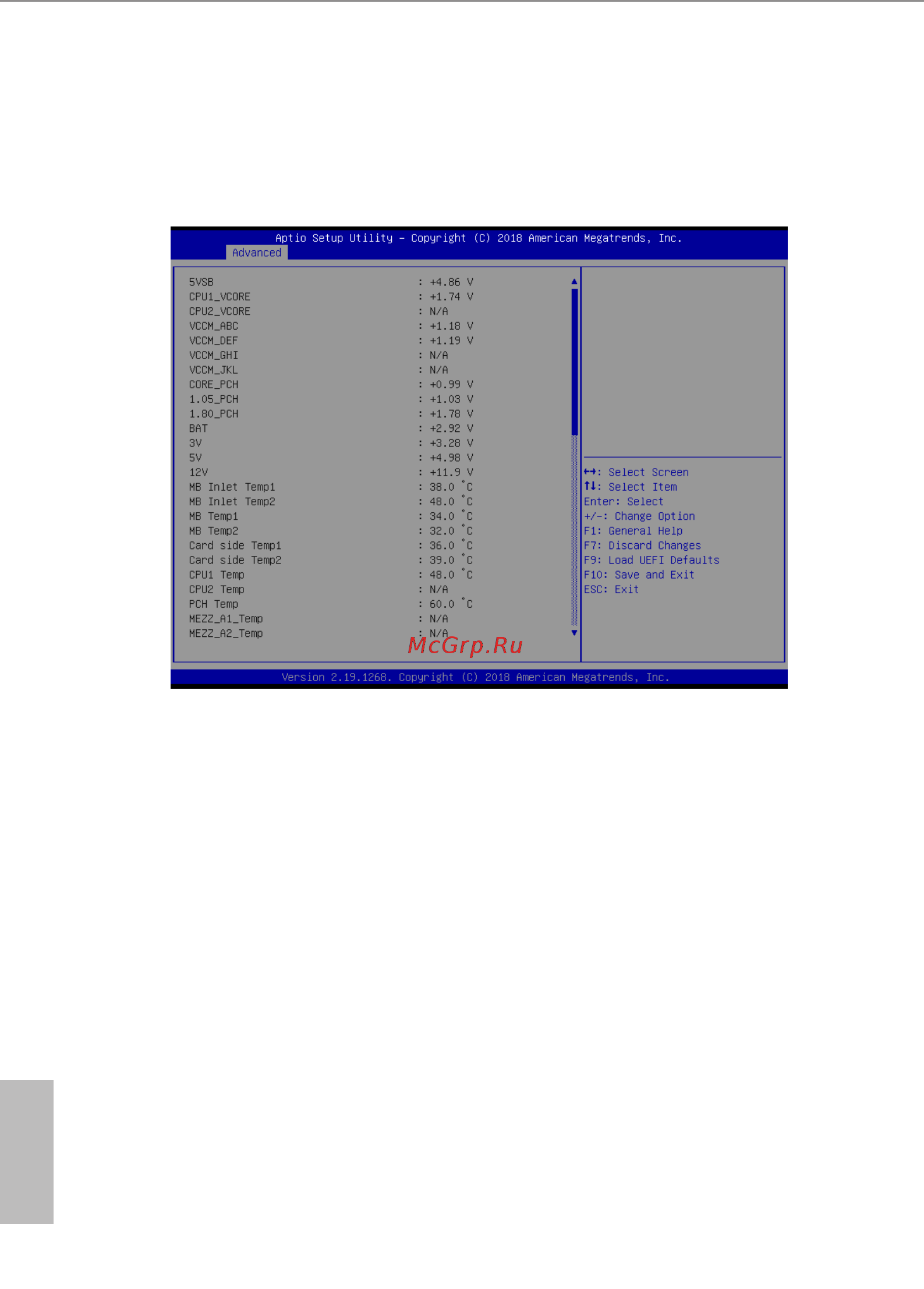

3.3.9 H/W Monitor
In this section, it allows you to monitor the status of the hardware on your system, includ-
ing the parameters of the CPU temperature, motherboard temperature, CPU fan speed,
chassis fan speed, and the critical voltage.
Fan Control
If [Auto] is selected, the fan speed will controlled by BMC.
If [Manual] is selected, congure the items below.
CPU1_FAN1
is allows you to set the CPU fan1’s speed. e default value is [Smart Fan].
CPU2_FAN1
is allows you to set the CPU fan2’s speed. e default value is [Smart Fan].
FRNT_FAN 1
is allows you to set the front fan 1’s speed. e default value is [Smart Fan].
FRNT_FAN 2
is allows you to set the front fan 2’s speed. e default value is [Smart Fan].
FRNT_FAN 3
is allows you to set the front fan 3’s speed. e default value is [Smart Fan].
