78 79
English

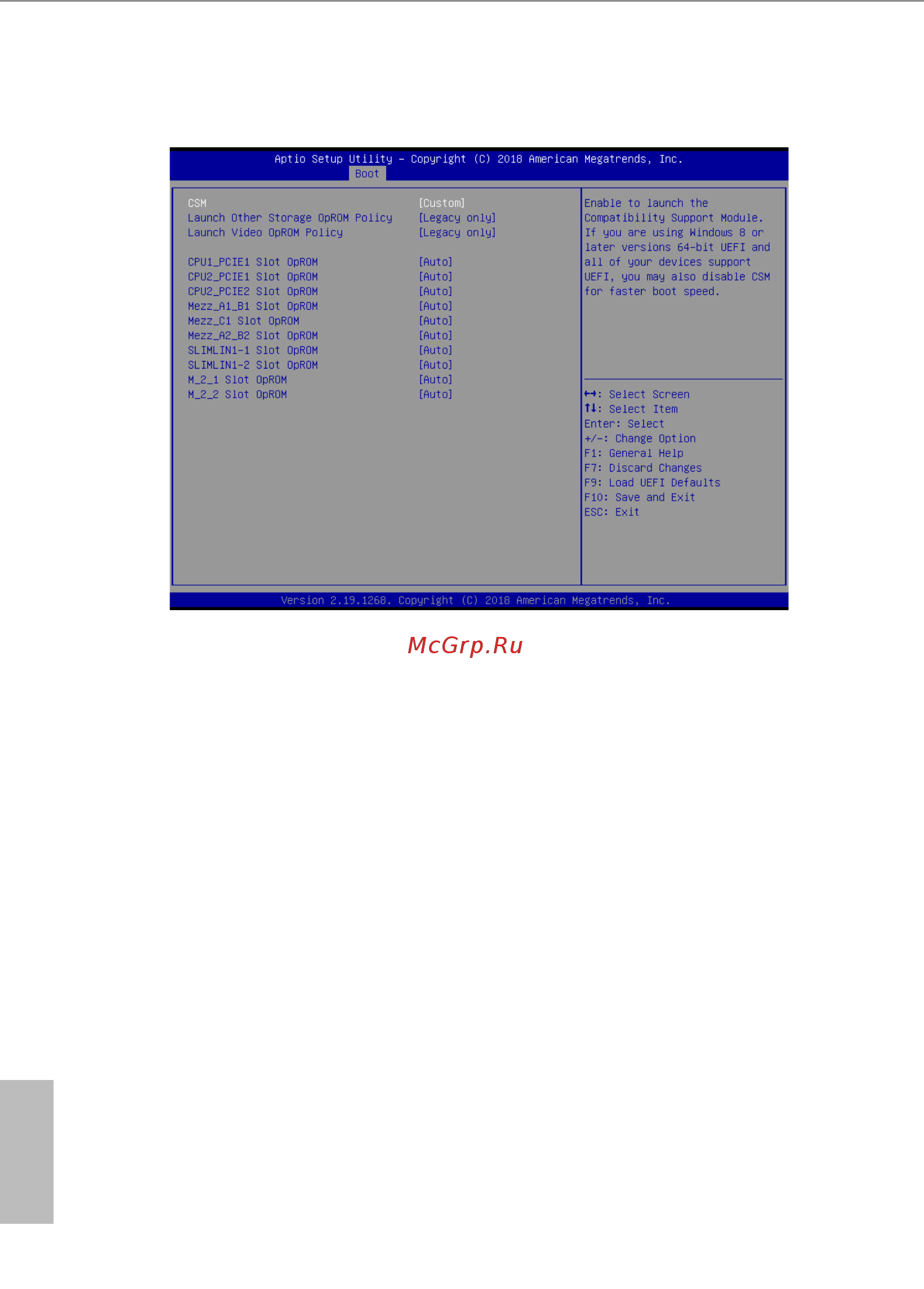

3.5.1 CSM Parameters
CSM
Enable to launch the Compatibility Support Module. Please do not disable unless
you’re running a WHCK test. If you are using Windows 10 64-bit and all of your
devices support UEFI, you may also disable CSM for faster boot speed.
Launch Other Storage OpROM Policy
Select UEFI only to run those that support UEFI option ROM only. Select Legacy only to
run those that support legacy option ROM only. Select Do not launch to not execute both
legacy and UEFI option ROM.
Launch Video OpROM Policy
Select UEFI only to run those that support UEFI option ROM only. Select Legacy only to
run those that support legacy option ROM only. Select Do not launch to not execute both
legacy and UEFI option ROM.
CPU1_PCIE1 Slot OpROM
is option controls Legacy/UEFI ROMs priority.
CPU2_PCIE1 Slot OpROM
is option controls Legacy/UEFI ROMs priority.
