EP2C626D24LM / EP2C622D24LM / EP2C621D24LM-AB
32 33
English

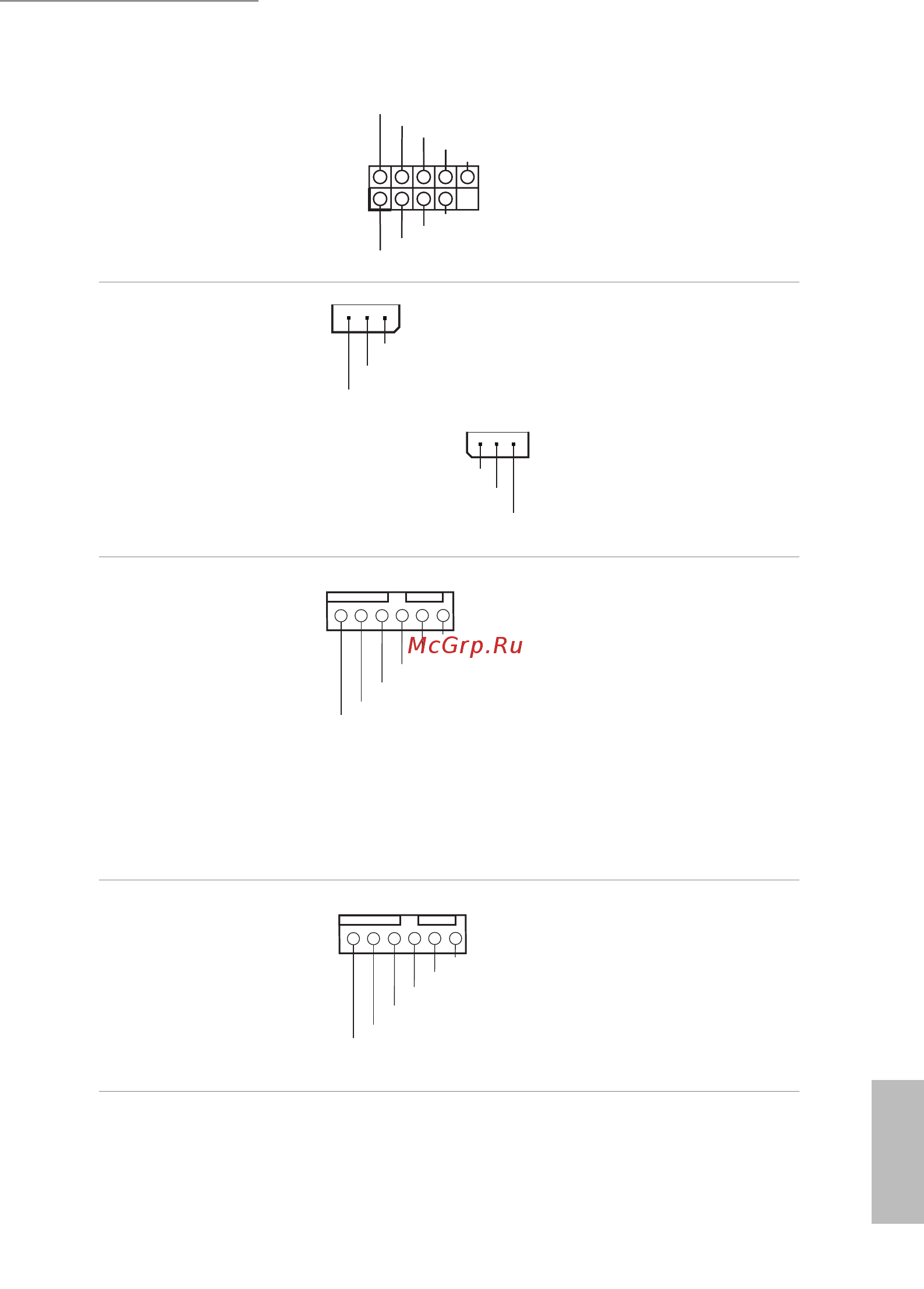

USB 2.0 Header
(19-pin USB_1_2)
DUMMY
GND
GND
+B
-B
USB_PWR
+A
-A
USB_PWR
1
ere is one USB 2.0 header on
this motherboard. is USB 2.0
header can support two USB
2.0 ports.
Backplane PCI Express
Hot-Plug Connectors
(3-pin HSBP_CPU1_1)
(3-pin HSBP_CPU2_1)
1
CPU_PE_HP_G_SCL
PVCCIO_CPU
CPU_PE_HP_G_SDA
1
CPU_PE_HP_G_SCL
PVCCIO_CPU
CPU_PE_HP_G_SDA
ese headers are used for the
hot plug feature of HDDs on
the backplane.
EP2C621D24LM-AB:
Front Fan Connectors
(6-pin FRNT_FAN1)
(see p.10, No. 26)
(6-pin FRNT_FAN2)
(see p.10, No. 21)
(6-pin FRNT_FAN3)
(see p.10, No. 18)
(6-pin FRNT_FAN4)
(see p.10, No. 13)
FAN1 SENSOR
FAN_SPEED_CONTROL
12V(FAN_VOLTAGE)
GND
65 4321
FAN2 SENSOR
NC
Please connect fan cables to the
fan connectors and match the
black wire to the ground pin.
All fans support Fan Control.
EP2C621D24LM-AB:
CPU Fan Connectors
(6-pin CPU1_FAN1)
(see p.10, No. 23)
(6-pin CPU2_FAN1)
(see p.10, No. 15)
FAN_SPEED
FAN_SPEED_CONTROL
FAN_VOLTAGE
GND
65 4321
SENSOR
NC
Please connect fan cables to the
fan connectors and match the
black wire to the ground pin.
All fans support Fan Control.
