English

2.10 M.2_SSD (NGFF) Module Installation Guide

The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and

versatile card edge connector that aims to replace mPCIe and mSATA. The M.2_SSD

(NGFF) Socket 3 can accommodate either a M.2 SATA3 6.0 Gb/s module or a M.2 PCI

Express module up to Gen 3 x2 (10Gb/s).

e M.2 socket (M2_1) is shared with the SSATA_0 connector. If you install a M.2 SATA module to the M.2

Socket (M2_1), the internal SSATA_0 will not function (and vice versa). e M.2 socket (M2_2) is shared with

the SSATA_1 connector. If you install a M.2 SATA module to the M.2 Socket (M2_2), the internal SSATA_1 will

not function (and vice versa).

Installing the M.2_SSD (NGFF) Module

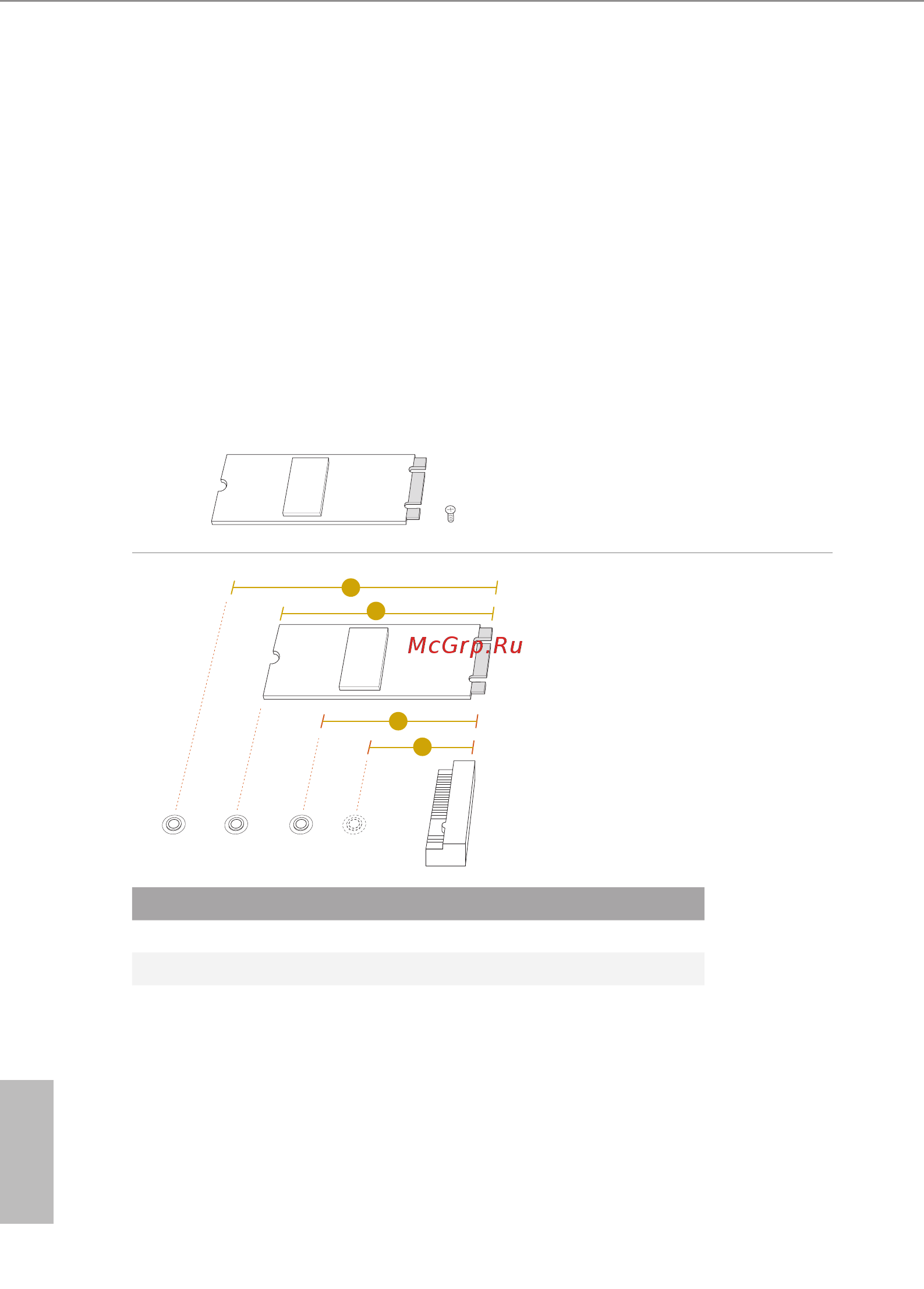

Step 1

Prepare a M.2_SSD (NGFF) module

and the screw.

BCD

Step 2

Depending on the PCB type and

length of your M.2_SSD (NGFF)

module, nd the corresponding nut

location to be used.

No. 1 2 3 4

Nut Location A B C D

PCB Length 3cm 4.2cm 6cm 8cm

Module Type Type2230 Type 2242 Type226 0 Ty pe 228 0
