English

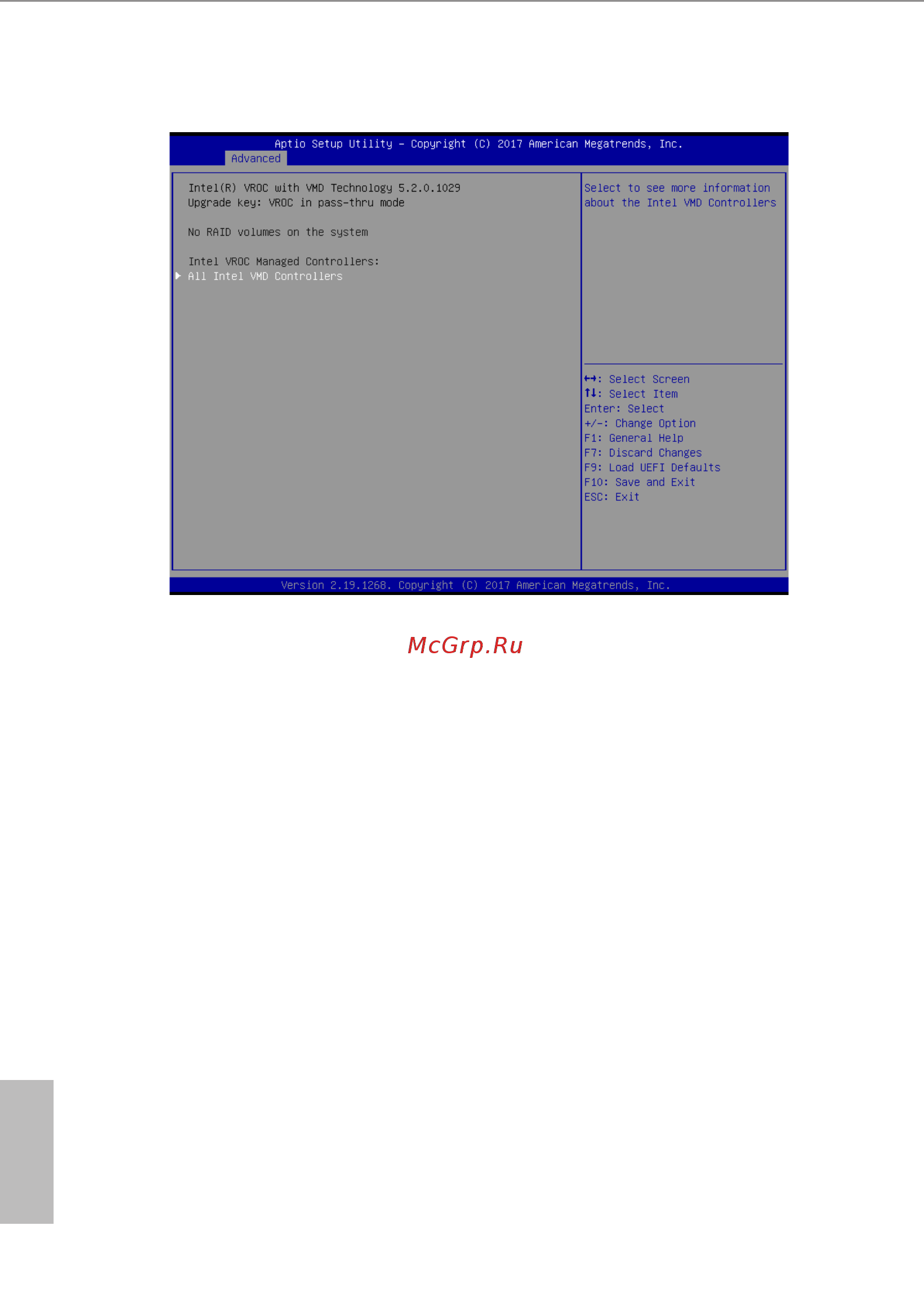

3.3.13 Intel® Virtual RAID on CPU
Intel VROC Managed Volumes
(Available aer the RAID has been created.)
Select to see more information about the RAID Volume.
All Intel VMD Controllers
Select to see more information about the Intel VMD Controllers.
