EP2C626D24LM / EP2C622D24LM / EP2C621D24LM-AB
48 49
English

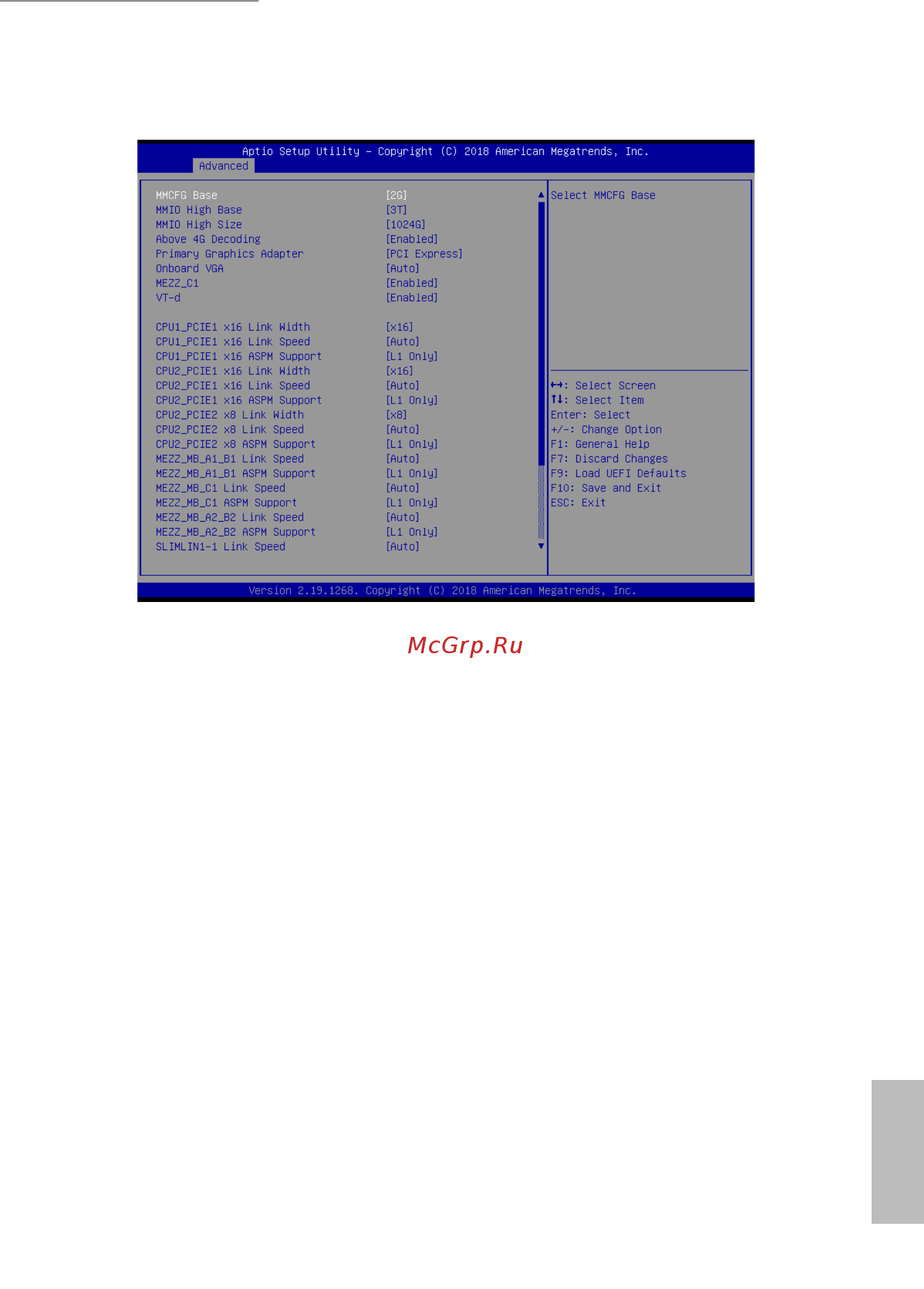

3.3.3 Chipset Conguration
MMCFG Base
Use this item to select MMCFG Base.
MMIO High Base
Use this item to select MMIO High Base.
MMIO High Size
Use this item to select MMIO High Size.
Above 4G Decoding
Enable or disable 64bit capable Devices to be decoded in Above 4G Address Space (only if
the system supports 64 bit PCI decoding).
Primary Graphics Adapter
If PCI Express graphics card is installed on the motherboard, you may use this option to
select PCI Express or Onboard VGA as the primary graphics adapter.
*If no PCI Express graphics card is installed, [Onboard VGA] is the default graphics adapter.
Onboard VGA
Use this to enable or disable the Onboard VGA function. e default value is [Auto].
*is item is not available when the Primary Graphic Adapter is set to [Onboard VGA].
