EP2C626D24LM / EP2C622D24LM / EP2C621D24LM-AB
26 27
English
2.6 Jumper Setup

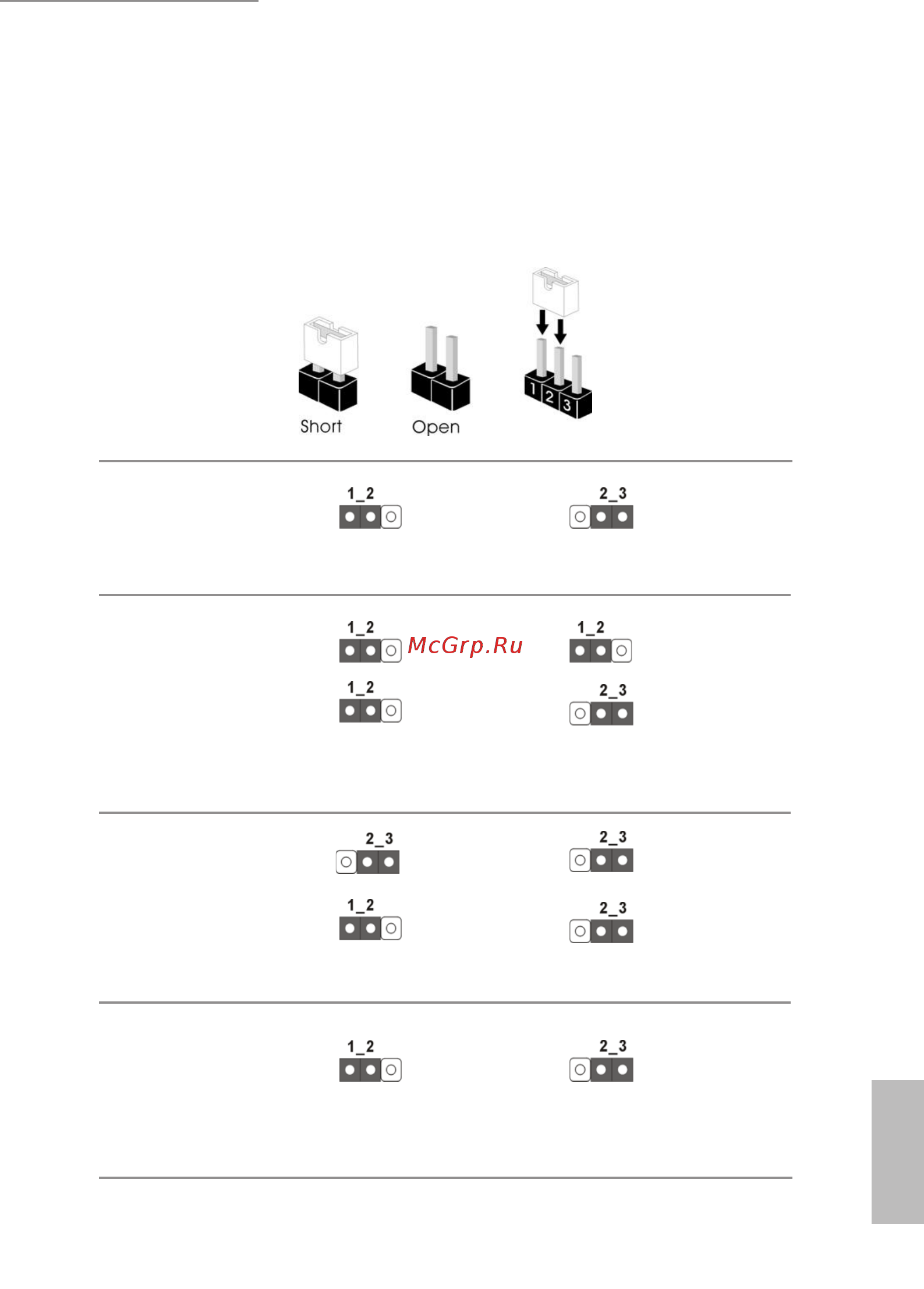

e illustration shows how jumpers are setup. When the jumper cap is placed on
the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper
is “Open”. e illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”
when a jumper cap is placed on these 2 pins.
ME Recovery Jumper
(3-pin ME_RECOVERY1)
Normal Mode (Default)
ME Recovery Mode
NCSI Mode Jumpers
(3-pin NCSI_SEL1)
(3-pin NCSI_SEL2)
N/A
NCSI is set to Mezzanine
Card (Default)
NCSI Mode Jumpers
(3-pin NCSI_SEL1)
(3-pin NCSI_SEL2)
N/A
NCSI is set to Phy Card
Security Override Jumper
(3-pin SEC_OR1)
Descriptor Security
Override
Not override (Default)
