Si34-601A Field Setting
Test Operation 177

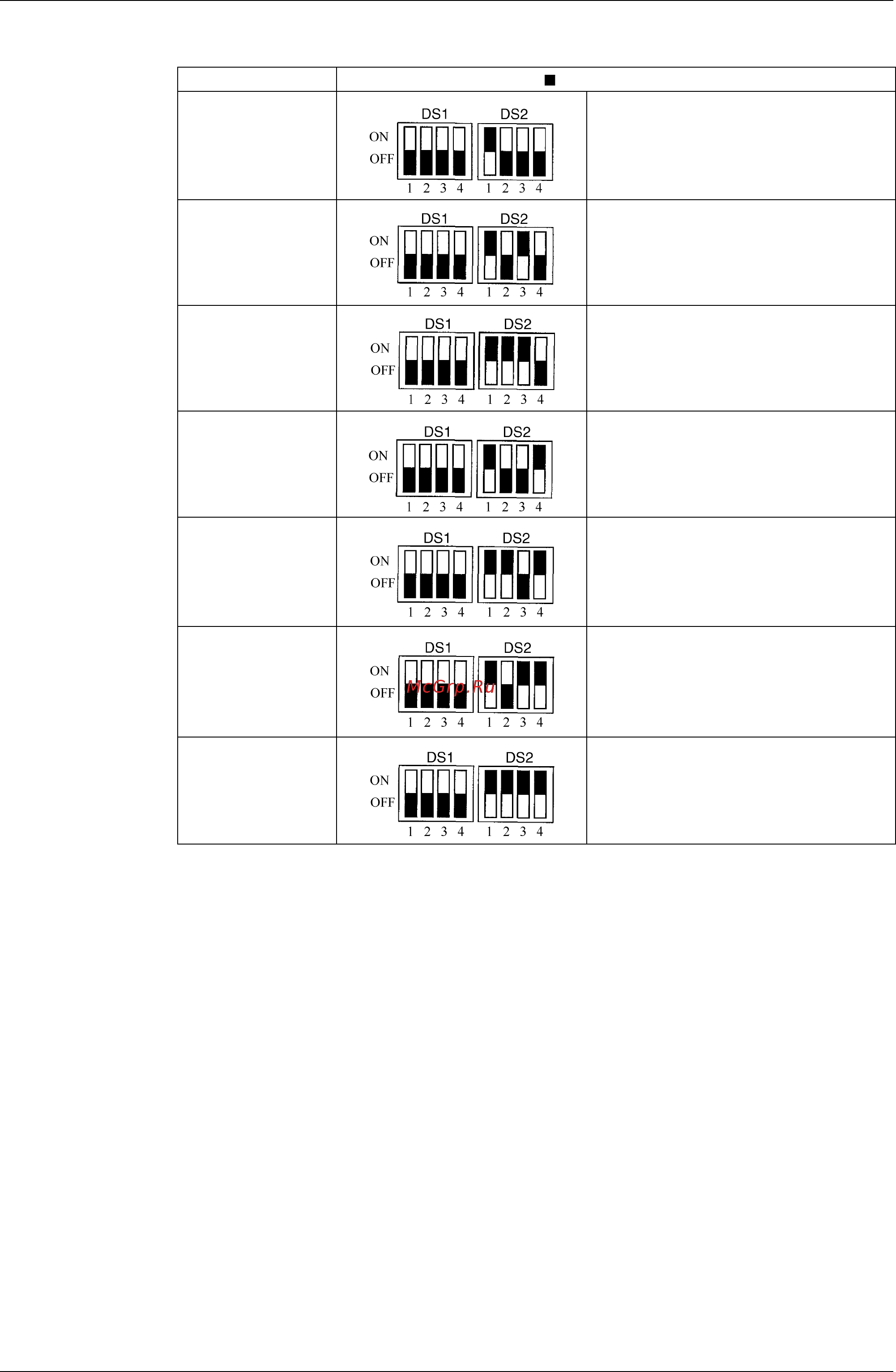

“Detail of DS1-1~4, DS2-1~4 setting” (for Overseas general)
Unit Setting method ( represents the position of switches)
HEAT PUMP(5HP)
RXYQ5PY1
Set DS2-1 to ON.
HEAT PUMP(8HP)
RXYQ8PY1
Set DS2-1 and DS2-3 to ON.
HEAT PUMP(10HP)
RXYQ10PY1
Set DS2-1, DS2-2 and DS2-3
to ON.
HEAT PUMP(12HP)
RXYQ12PY1
Set DS2-1 and DS2-4 to ON.
HEAT PUMP(14HP)
RXYQ14PY1
Set DS2-1, DS2-2 and DS2-4
to ON.
HEAT PUMP(16HP)
RXYQ16PY1
Set DS2-1, DS2-3 and DS2-4
to ON.
HEAT PUMP(18HP)
RXYQ18PY1
Set DS2-1, DS2-2, DS2-3, and DS2-4
to ON.
