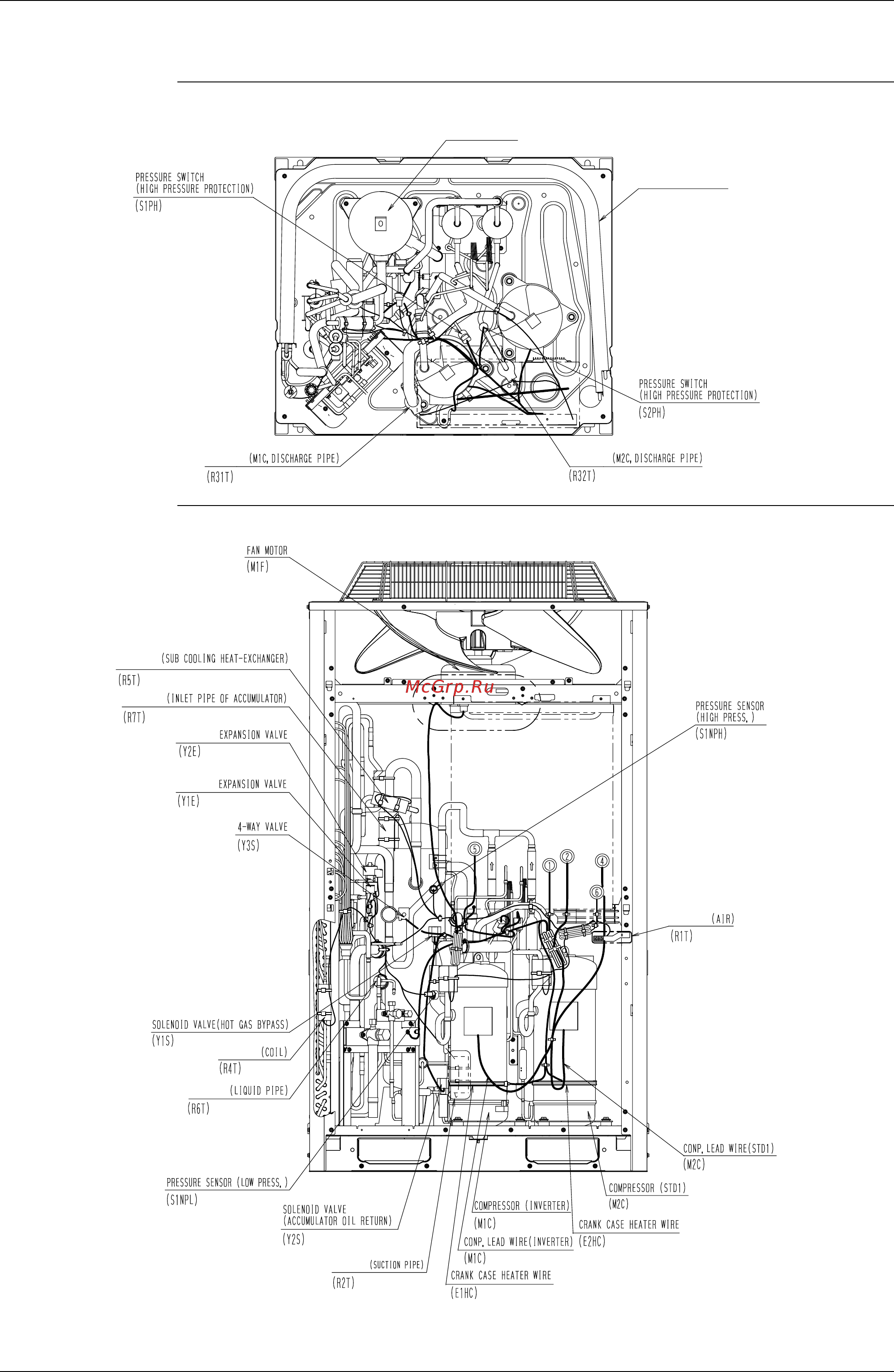

Si34-601A Functional Parts Layout
Refirgerant Circuit 71
2.3 RXYQ10P, 12P (12P: EUROPE)
Plan
Front View
THERMISTOR
THERMISTOR
Accumulator
Heat exchanger
THERMISTOR
THERMISTOR
THERMISTOR
THERMISTOR
THERMISTOR
THERMISTOR
ELECTRONIC
ELECTRONIC
