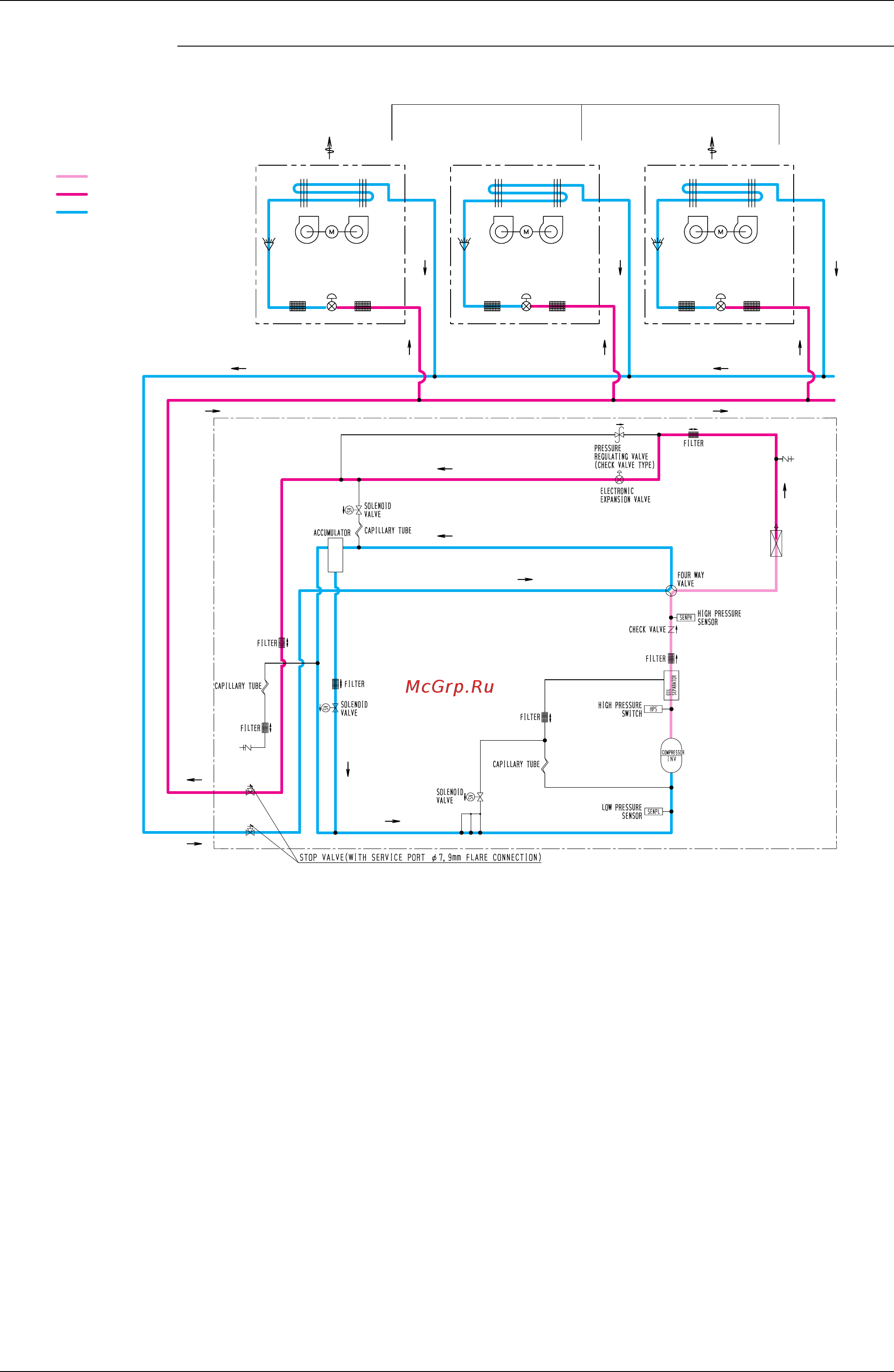

Si34-601A Refrigerant Flow for Each Operation Mode
Refirgerant Circuit 75
Cooling Oil Return Operation
Thermostat "OFF"
" OFF " " ON "
" ON "
FanFan
Indoor unit operation
Indoor unit
Electronic expansion valve
EV:Nomal
FilterFilter
Heat exchanger
Indoor unit
Electronic expansion valve
EV:224pls
FilterFilter
Heat exchanger
Fan ON Fan OFF Fan ON
Thermostat "ON"
Indoor unit
"High temperature, high pressure gas"
"High temperature, high pressure liquid"
"Low temperature, low pressure"
Heat exchanger
Electronic expansion valve
EV:Nomal
control
FilterFilter
Fan
