Field Setting Si34-601A
190 Test Operation
Supplementation on
e
and
f
.

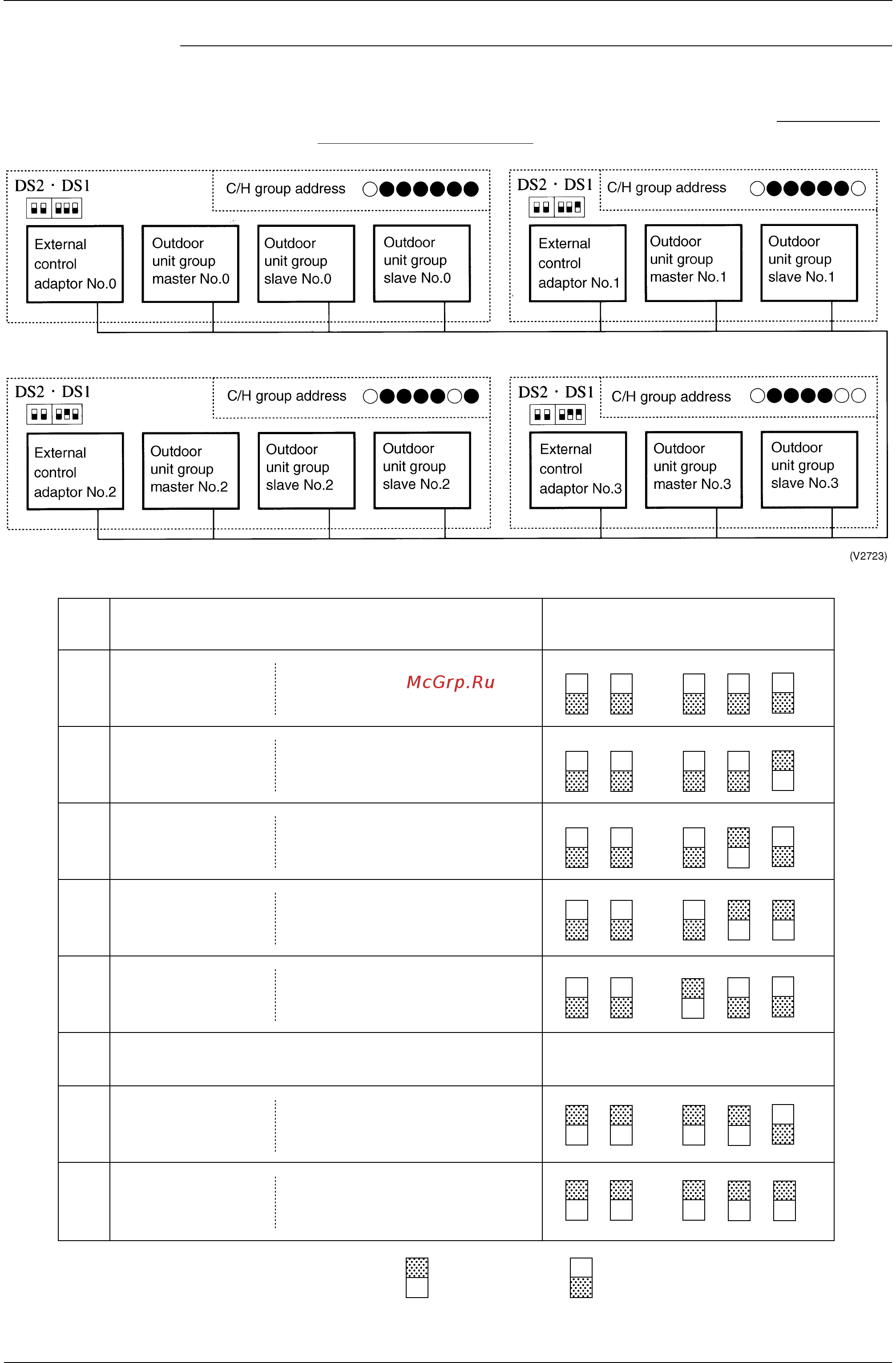

When switching cool/heat for each adapter PC board with the use of more than one adapter PC
board, set the address of the external control adaptor for outdoor unit PC board DS1 and DS2
so that it matches the unified cool/heat address of outdoor unit main PC board.
Address setting for
e
and
f
(Set lower 5 digits with binary number.) [No.0 to No.31]
Address
No.
Outdoor unit PC board LED
Set with setting mode 2
External control adaptor for outdoor unit
No 0
No 1
No 2
No 3
No 4
No 30
No 31
DS2
DS1
87 77777
87 77778
87 77787
87 77788
87 77877
87 88887
87 88888
0
1
2
3
4
30
31
0
1
2
3
4
30
31
~
~
~
8ON 7OFF
Upper position (ON) lower position (OFF)
(The shaded part shows knob)
(V2724)
