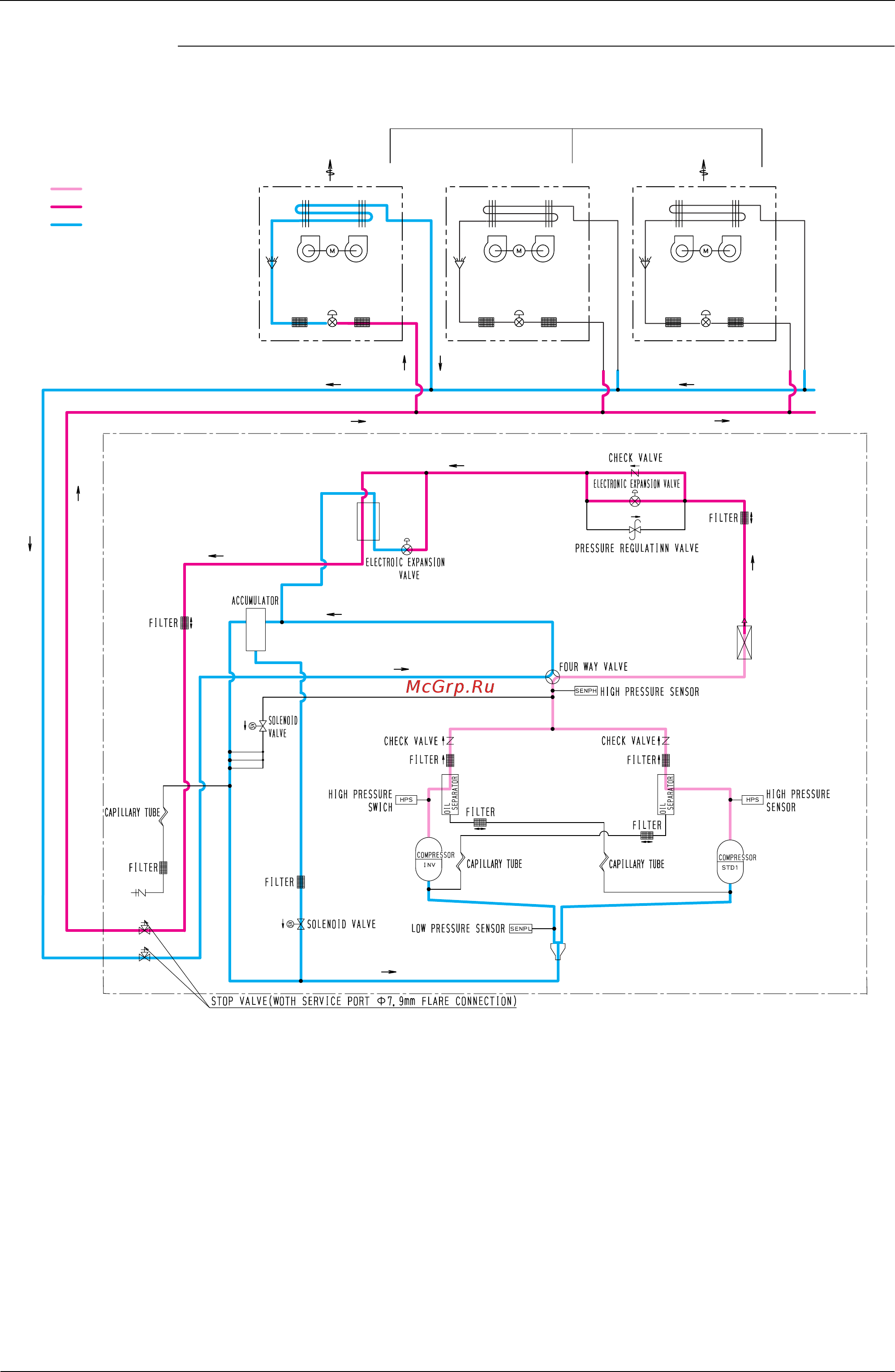

Refrigerant Flow for Each Operation Mode Si34-601A
82 Refirgerant Circuit
RXYQ10P, 12P
Cooling Operation
" OFF "" ON " " ON "
EV:0pls EV:0pls
FanFan
Thermostat "OFF"
Indoor unit
FilterFilter
Heat exchanger
Fan OFF
Indoor unit
FilterFilter
Heat exchanger
Fan ON Fan ON
Thermostat "ON"
Indoor unit
"High temperature, high pressure gas"
"High temperature, high pressure liquid"
"Low temperature, low pressure"
Heat exchanger
Electronic expansion valve
EV:Nomal
control
FilterFilter
Fan
Electronic expansion valve Electronic expansion valve
Indoor unit operation
