Troubleshooting by Indication on the Remote Controller Si34-601A
230 Troubleshooting
3.8
“AJ”
Indoor Unit: Malfunction of Capacity Determination
Device
Remote
controller display
AJ
Applicable
Models
All indoor unit models
Method of
Malfunction
Detection
Capacity is determined according to resistance of the capacity setting adaptor and the memory
inside the IC memory on the indoor unit PC board, and whether the value is normal or abnormal
is determined.
Malfunction
Decision
Conditions
Operation and:
When the capacity code is not contained in the PC board’s memory, and the capacity setting
adaptor is not connected.
Supposed
Causes
You have forgotten to install the capacity setting adaptor.
Defect of indoor unit PC board

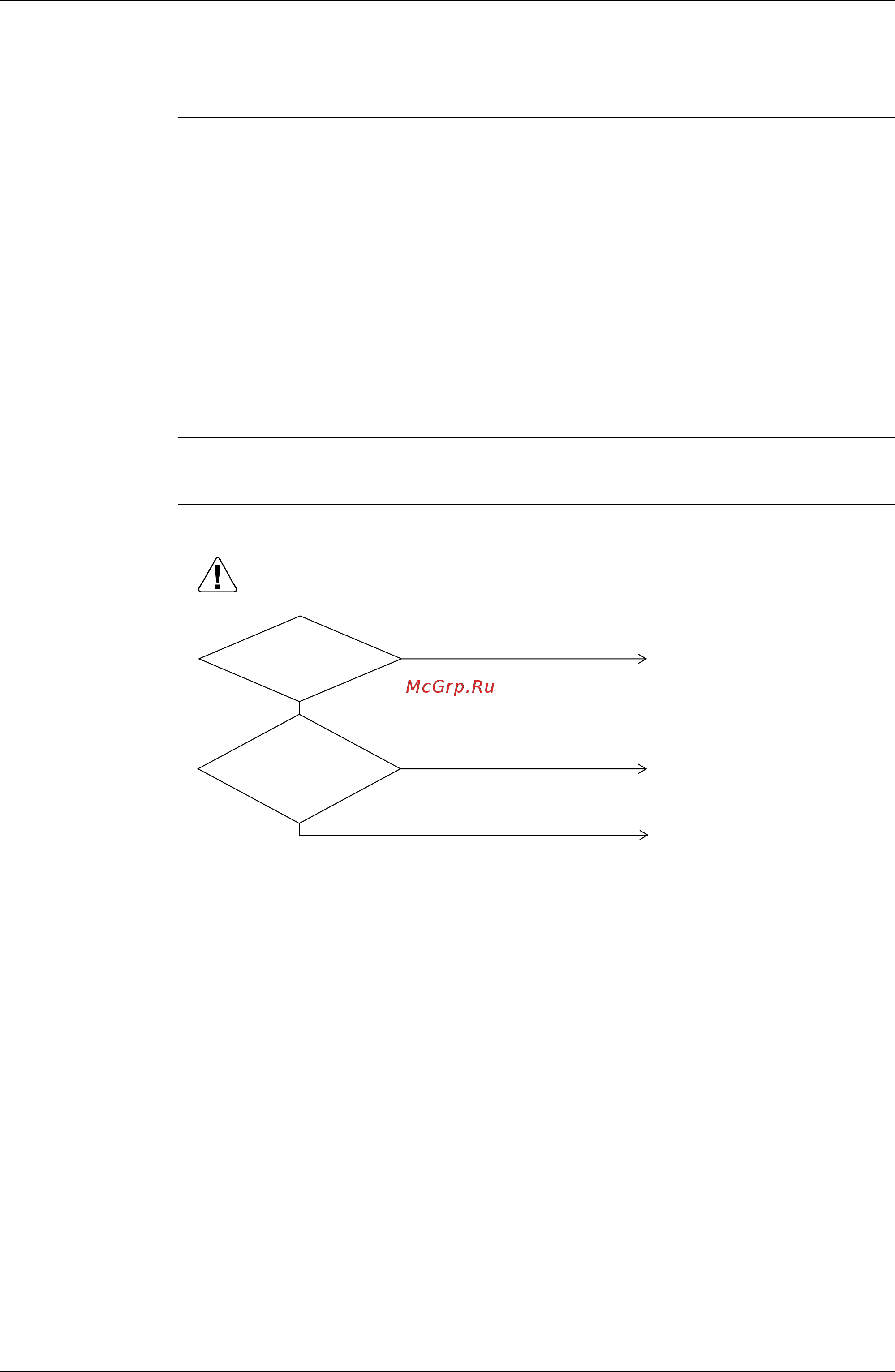

Troubleshooting
(V2783)
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Install a capacity setting adaptor.
Replace the indoor unit PC board.
NO
YES
YES
NO
Replace the indoor unit PC board.
The indoor
unit PC board was replaced
with a replacement
PC board.
Was the
capacity setting
adapter mounted when
replacing the
PC board?
