PLANET Mesh Network Manager Guide
PLANET Mesh Network Manager Guide
Page
120 of 126

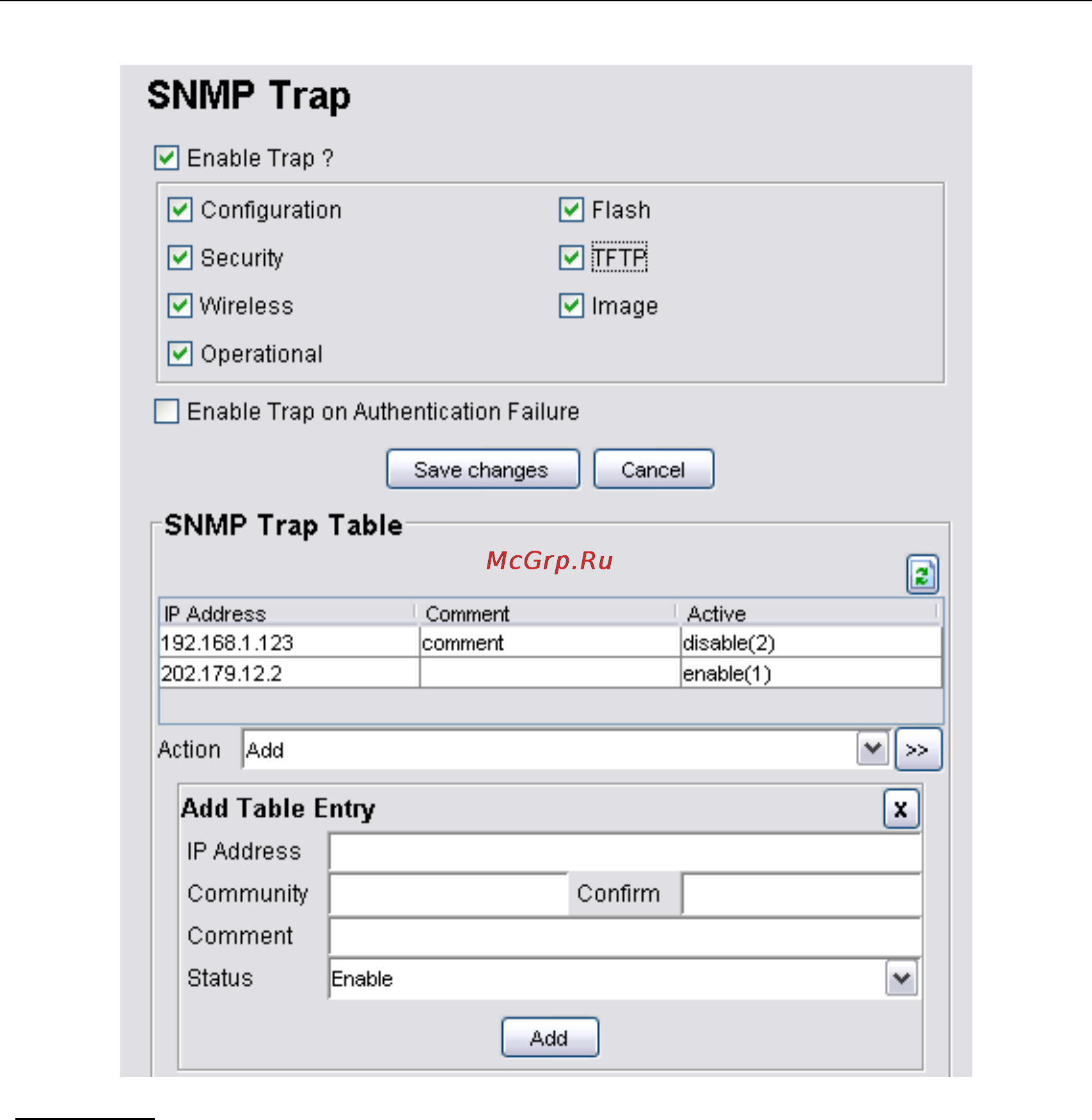

Parameters:
1) Enable Trap
• A checkbox to enable or disable the SNMP trap feature
2) Configuration
• A checkbox to enable or disable the system to send the traps regarding
configuration
3) Security
• A checkbox to enable or disable the system to send the security traps
4) Wireless
• A checkbox to enable or disable the system to send the traps regarding
wireless
