PLANET Mesh Network Manager Guide
PLANET Mesh Network Manager Guide
Page
54 of 126

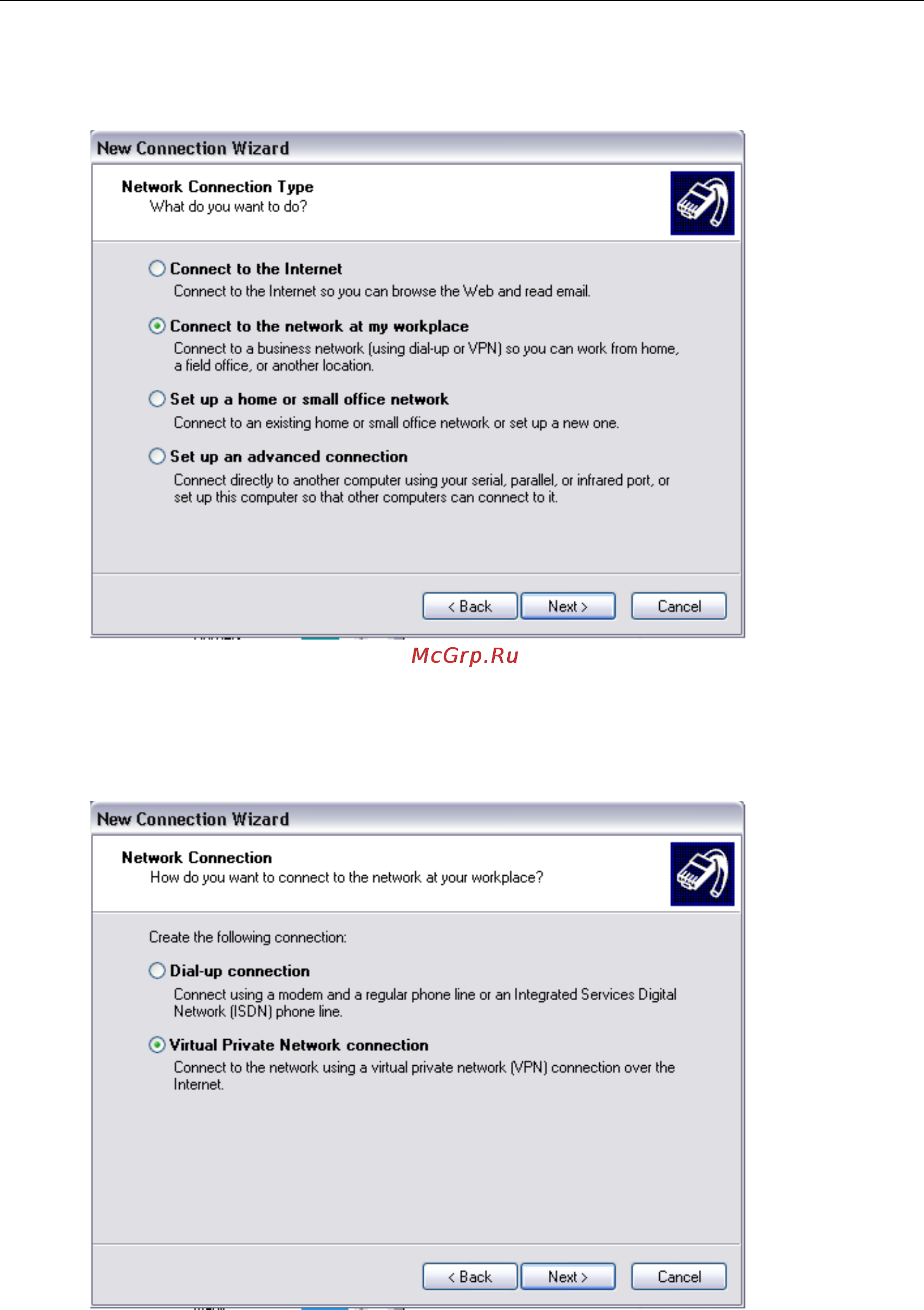

Network Connection Type – Select Connect to the network at my workplace and
click Next button
Network Connection – Select Virtual Private Network and click the Next button
