PLANET Mesh Network Manager Guide
PLANET Mesh Network Manager Guide
Page
55 of 126

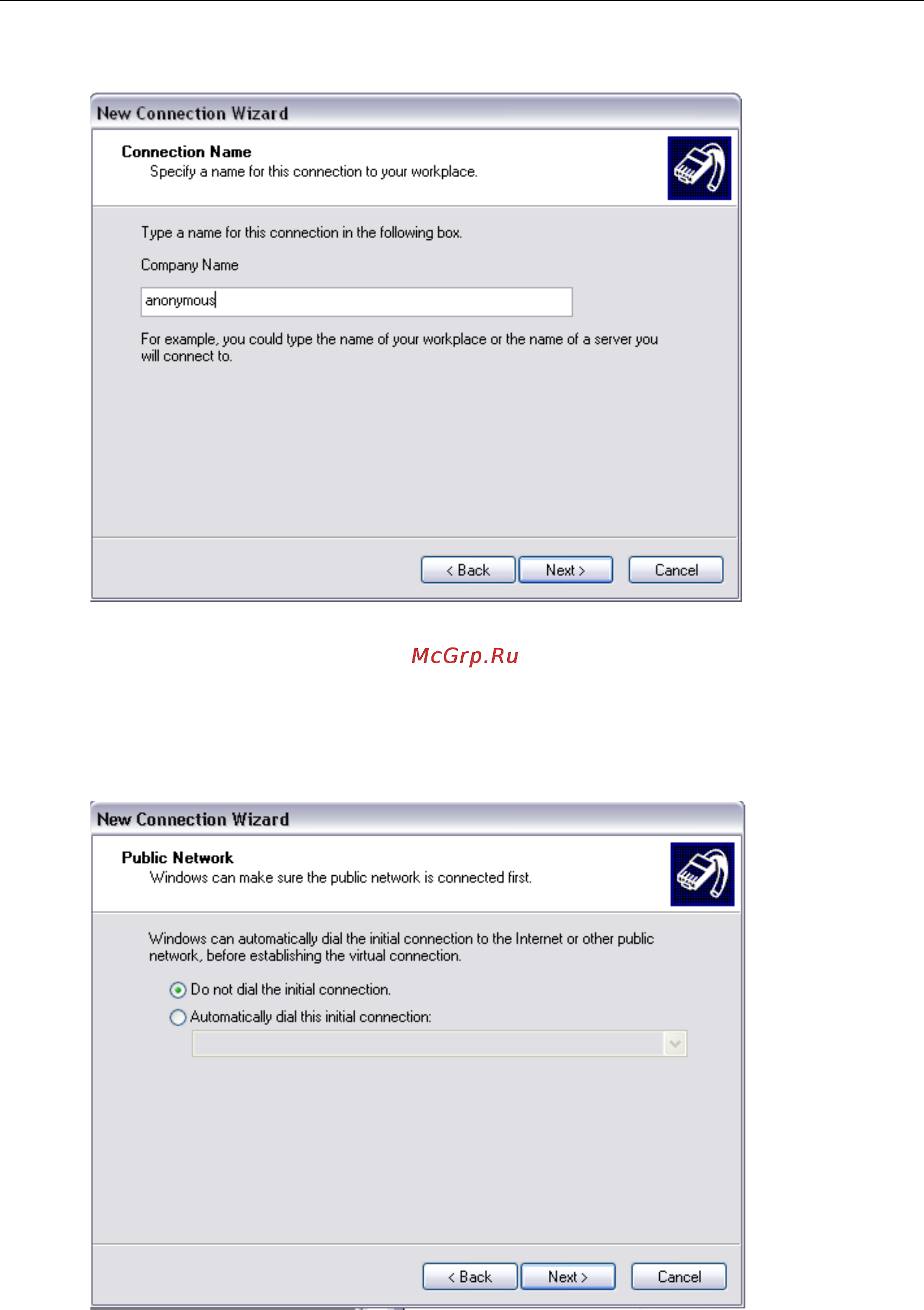

Connection Name – Enter a desired Connection Name and hit the Next button
Public Network – Select Do not dial initial connection and press Next button
