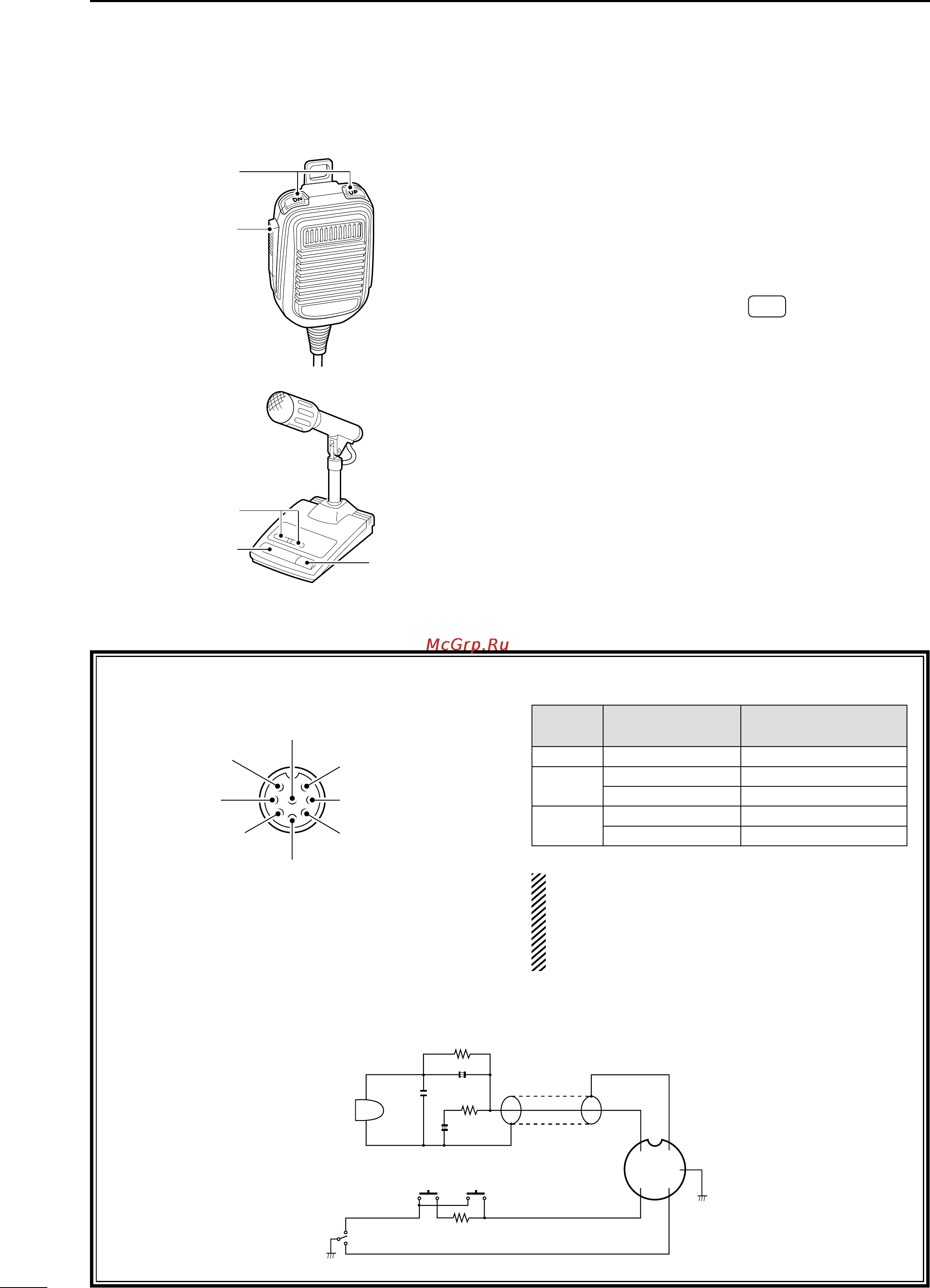

![Icom IC-7200 [16/104] Microphones](/views2/1074133/page16/bg10.png)
11
• MICROPHONE CONNECTOR
(Front view)
y GND (PTT ground)
t PTT
r Squelch switch
q Microphone input
w +8 V DC output
e Frequency up/down
i AF output
(varies with [AF])
u GND
(Microphone ground)
[MIC]
PIN NO.
FUNCTION DESCRIPTION
w
+8 V DC output Max. 10 mA
e
Frequency up Ground
Frequency down Ground through 470 ˘
r
Squelch open “LOW” level
Squelch close “HIGH” level
CAUTION: DO NOT short pin 2 to ground as
this can damage the internal 8 V regulator. DC
voltage is applied to pin 1 for microphone opera-
tion. Use caution when using a non-Icom micro-
phone.
• HM-36 SCHEMATIC DIAGRAM
+
q
w
e
r
t
y
u
i
4700pF
0.22µF
MICROPHONE
MIC
ELEMENT
22kø
470ø
DOWN UP
PTT
RECEIVE
TRANSMIT
MICROPHONE CABLE MICROPHONE PLUG
1kø
+
10µF
q UP/DOWN SWITCHES [UP]/[DN]
Change the selected readout frequency or memory
channel.
• Pushing the switch continuously changes the frequency
or memory channel number continuously.
• The
[UP]/[DN] switch can simulate a key paddle. Select
in set mode (U/D KEY; Mic Up/Down Keyer). (p. 81)
• W
hile pushing and holding
RIT
*, push the [UP]/[DN]
switch to control the transmit readout frequency while
in spilt frequency operation.
*
Available only when the XFC (transmit frequency
check) function is turned ON. (p. 76)
w PTT SWITCH
Push and hold to transmit; release to receive.
e PTT LOCK SWITCH (SM-20 only)
Push to lock the PTT switch to the transmission
codition.
q
w
q
w
e
■
Microphones
D HM-36
D SM-20
(Option)
1
PANEL DESCRIPTION
