■ Operating CW
q Connect a paddle, straight key or external elec-
tronic keyer as on page 18.
w
Push and hold
F-INP ENT
BAND
for 1 sec., then push a
band key to select the desired band.
e
Push
MODE
to select CW mode.
• After CW mode is selected, push and hold
MODE
for
1 sec. to toggle between CW and CW-R modes.
r Rotate [DIAL] to tune in a desired signal with the
desired tone frequency.
• The S-meter indicates received signal strength when
signal is received.
t Rotate the [AF] control to set audio to a comfort-
able listening level.
y Set CW break-in operation and the CW delay time
in the set mode. (p. 80)
q Push and hold
M-CH/RIT
SET
for 1 sec. twice to enter
the set mode.
w
Rotate [M-CH] to select “BK-IN” to set the CW
break-in operation.
e Rotate [DIAL] to select the CW break-in opera-
tion from full break-in, semi break-in or OFF.
• FL : full break-in
• SE
: semi break-in
• OF
: break-in OFF
r Rotate [M-CH] to select “BK-DELAY” to select
the CW delay time when semi break-in operation
is selected in step e.
t Rotate [DIAL] to set the desired delay time.
y Continue to set the keyer settings in the set
mode, if necessary. (pgs. 80, 81)
u
Push
M-CH/RIT
SET
to exit the set mode and return to
normal operation.
u
Keying to transmit, use the paddle, straight key or
external electronic keyer to send your CW signals.
• “ ” appears.
• The Po meter indicates the transmit power strength.
i Stop keying to return to receive.
MODE
TUNER
TS
FILTER
SPCH
V/M
A/B
SPLIT
M-CL
SCAN
SET
ATT
P
.
AMP
COMP
VOX
MNF
RIT
1
2
3
4
5 6
7
8
0
50
28
1814
10
21
24
=
7
3.5
1.8
F-INP
M-CH/RIT
ENT
BAND
GENE
9
.
AGC
MW
ANF
METER
NR
NB
Band keys
[DIAL]
[AF]

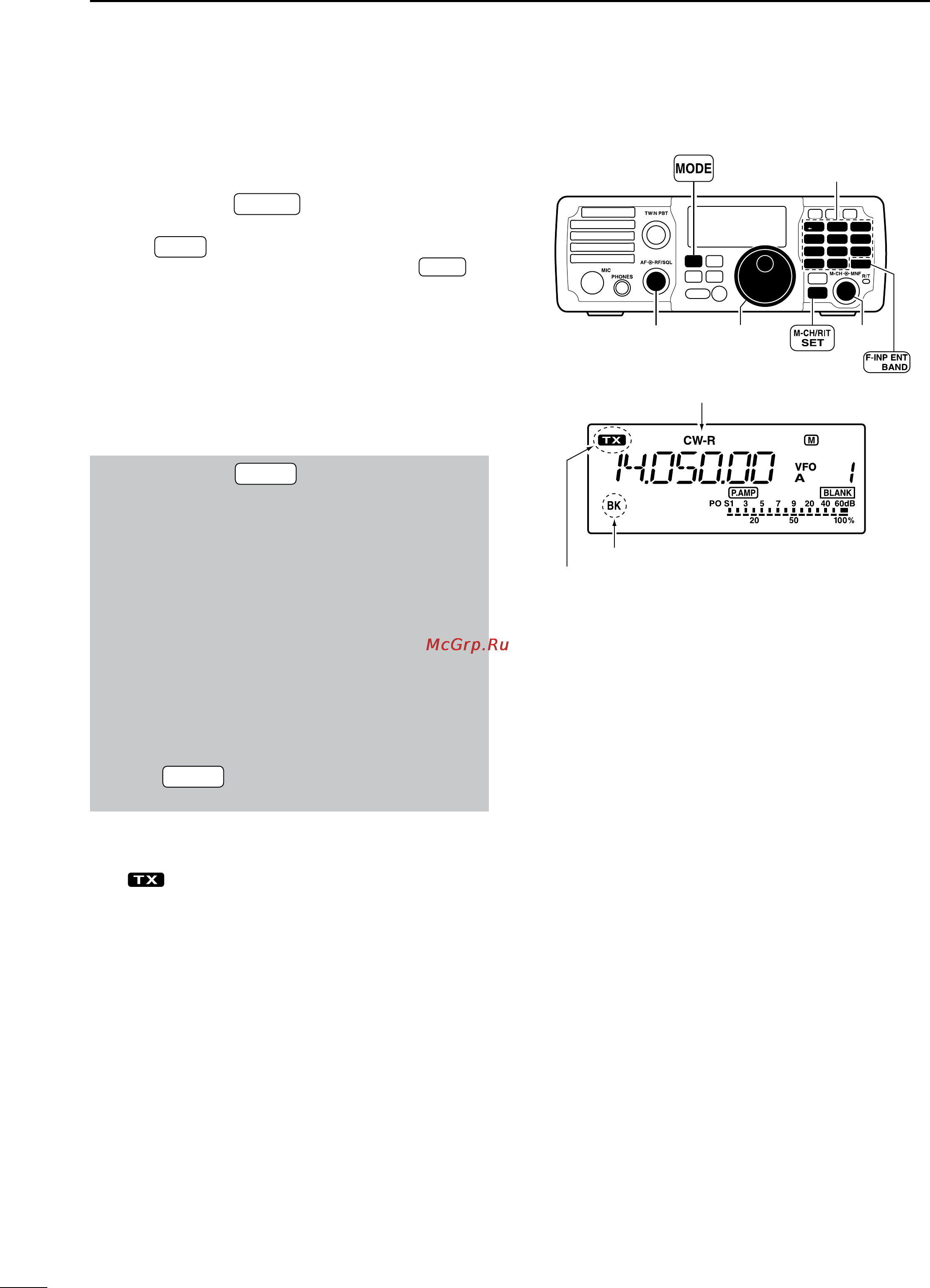

“CW” or “CW-R” appears.
Appears while transmitting.
[M-CH]
Appears when semi break-in is selected.
4
RECEIVE AND TRANSMIT
