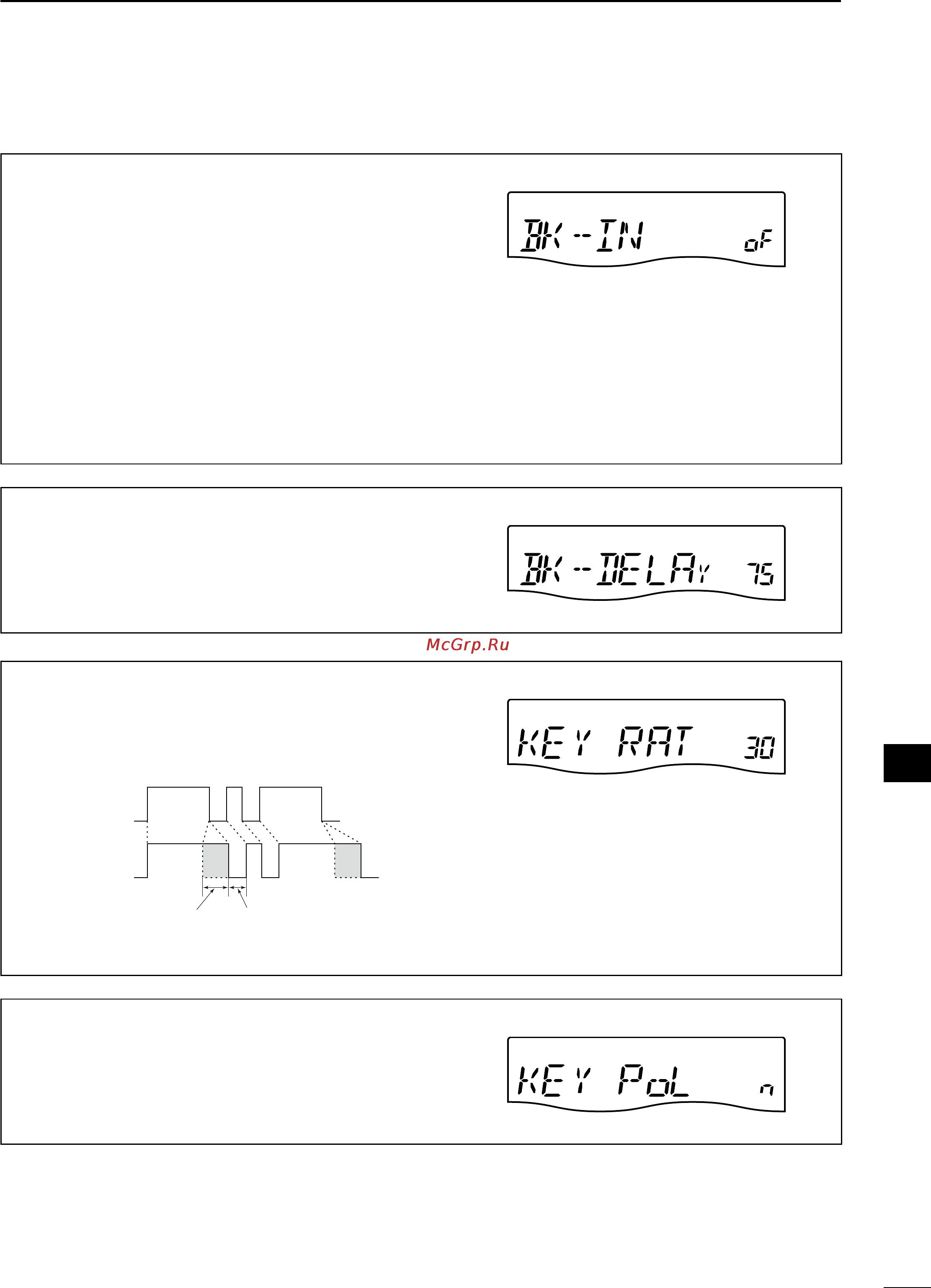

Break-In
This item selects break-in type for CW operation.
Full break-in (QSK) activates the receiver between trans-
mitted dots and dashes. This is useful when operating
contests, when “fast responses” are common.
Semi break-in keeps the receiver quiet between dots and
dashes and automatically returns to receive after a pre-
set time from when you stop keying.
When break-in is turned off, the key or paddle can gener-
ate side tones (selectable in quick set mode) but will not
transmit.
oF : No break-in operation.
SE (Semi) : Semi break-in operation.
FL (Full) : Full break-in operation
.
OFF (default)
Break-In Delay
This item adjusts break-in delay time for CW semi
break-in operation.
The delay time is selectable from 0.2 to 13.0 (dots) in 0.1
(dots) steps.
7.5 dots (default)
Dot/Dash Ratio
This item sets the internal electronic keyer dot/dash ratio.
1:1:2.8 to 1:1:4.5 (in 0.1 steps) can be selected.
Keying weight example: Morse code “K”
DASH
Weight setting:
1:1:3 (default)
Weight setting:
Adjusted
DASH
DOT (Fixed*)
Adjustable range SPACE (Fixed*)
*SPACE and DOT length can be adjusted with
“Key speed” only in the quick set mode.
1:1:3.0 (default)
Paddle Polarity
This item sets the paddle polarity.
n (Normal) : Normal polarity.
r (Reverse) : Reverse polarity.
Normal (default)
