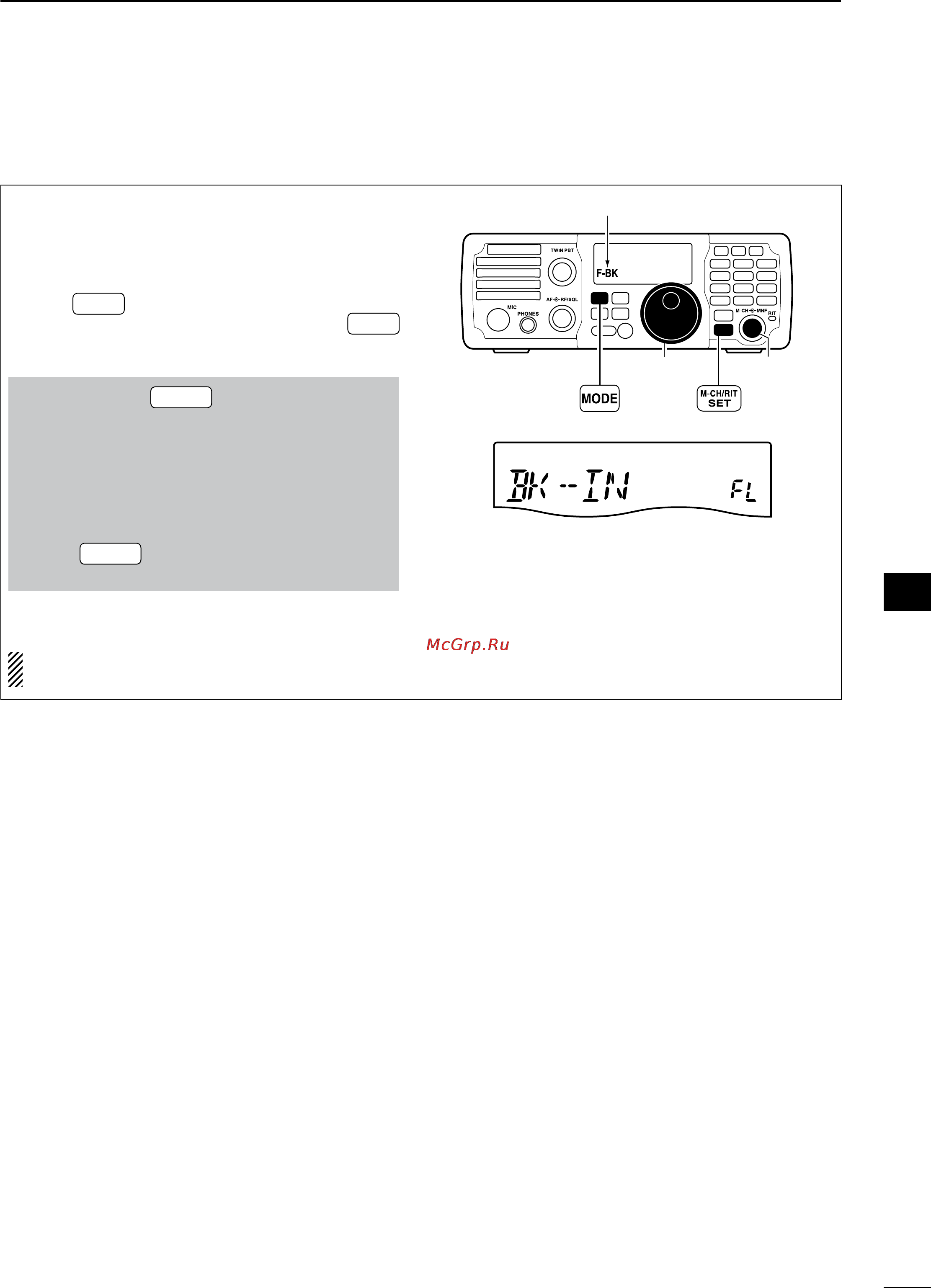

D Full break-in operation
During full break-in operation, the transceiver auto-
matically switches to receive between keying dots
and dashes so that the operator can hear activity on
the channel when transmitting.
q
Push
MODE
to select CW or CW-R mode.
• When CW mode is selected, push and hold
MODE
for 1 sec. to toggle between CW and CW-R modes.
w
Set the full break-in function ON in the set mode.
q Push and hold
M-CH/RIT
SET
for 1 sec. twice to enter
the set mode.
w
Rotate [M-CH] to select “BK-IN” to set the CW
break-in operation.
e Rotate [DIAL] to select “FL.”
• FL : full break-in
• SE
: semi break-in
• OF
: break-in OFF
r Push
M-CH/RIT
SET
to exit the set mode and return to
normal operation.
e “F-BK” appears on the LCD.
When using a paddle, set “KEY SPD” in the quick
set mode to adjust the keying speed. (p. 72)
MODE
TUNER
TS
FILTER
SPCH
V/M
A/B
SPLIT
M-CL
SCAN
SET
ATT
P
.
AMP
COMP
VOX
MNF
RIT
1
2
3
4
5 6
7
8
0
50
28
1814
10
21
24
=
7
3.5
1.8
F-INP
M-CH/RIT
ENT
BAND
GENE
9
.
AGC
MW
ANF
METER
NR
NB
[DIAL]
[M-CH]
Appears
Full break-in operation
