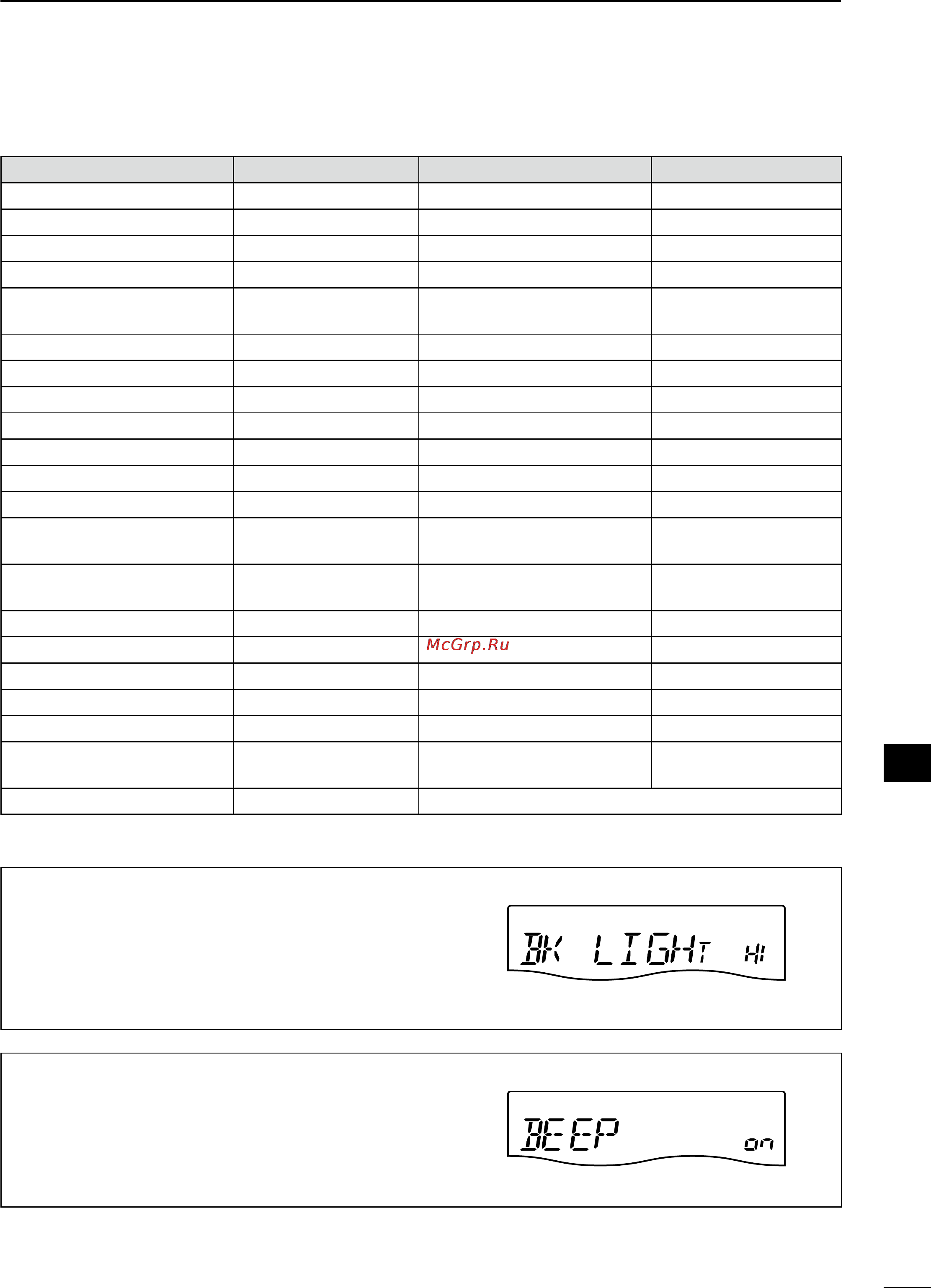

Icom IC-7200 [79/104] Set mode
![Icom IC-7200 [79/104] Set mode](/views2/1074133/page79/bg4f.png)
74
10
SET MODE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
■ Set mode
Set mode item Default setting Set mode item Default setting
LCD BACKLIGHT HIGH SCAN RESUME ON
BEEP ON MAIN DIAL AUTO TS HIGH
BAND EDGE BEEP ON DIAL
1
⁄
4
OFF
BEEP LEVEL 50% MIC UP/DOWN SPEED HIGH
BEEP LEVEL LIMIT ON
SSB/CW SYNCHRONOUS
TUNING
OFF
RF/SQL CONTROL RF + SQL CW NORMAL SIDE LSB
METER PEAK HOLD ON BREAK-IN OFF
QUICK SPLIT ON BREAK-IN DELAY 7.5 DOTS
SPLIT LOCK OFF DOT/DASH RATIO 1:1:3.0
XFC OFF PADDLE POLARITY NORMAL
AUTO TUNE OFF KEYER TYPE ELEC-KEY
PTT TUNE OFF MIC UP/DOWN KEYER OFF
MODULATION INPUT
(DATA OFF)
MIC/ACC MODE SELECT (SSB) ON
MODULATION INPUT
(DATA ON)
ACC MODE SELECT (CW) ON
USB LEVEL 50% MODE SELECT (RTTY) ON
SPEECH LEVEL 50% MODE SELECT (AM) ON
SPEECH LANGUAGE ENGLISH CI-V BAUD RATE AUTO
SPEECH SPEED HIGH CI-V ADDRESS 76H
SPEECH S-LEVEL ON CI-V TRANSCEIVE ON
SPEECH [MODE] KEY OFF
REFERENCE FREQUENCY
ADJUSTMENT
Default setting is differ-
ent for each transceiver.
SCAN SPEED HIGH
LCD Backlight
This item adjusts the brightness of the LCD from HI
(High), Lo (Low) or oF (Off).
High (default)
Beep
A beep sounds each time a key is pushed to confirm it.
This function can be turned OFF for silent operation.
on : Confirmation beep ON
oF : Confirmation beep OFF
The volume level can be set in “Beep Level” as below.
ON (default)
