77
10
SET MODE
■ Set mode (Continued)

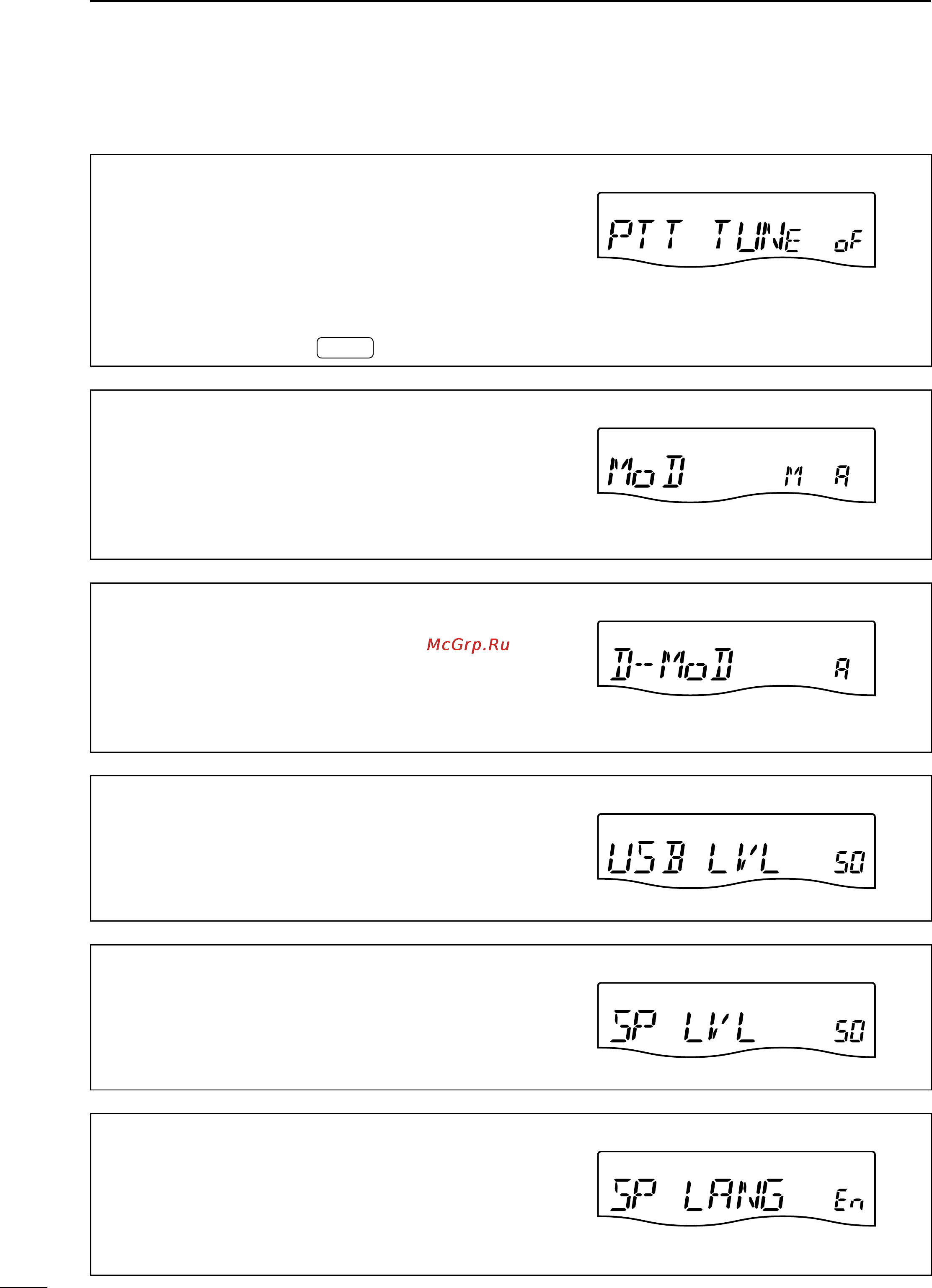

PTT Tune
Tuning of the internal antenna tuner can be started auto-
matically at the moment [PTT] is pushed after the operat-
ing frequency is changed (more than 1% from last-tuned
frequency).
When an optional AT-180 antenna tuner is connected,
the tuner function must be turned ON in advance.
on :
Tuning starts when [PTT] is pushed on a new frequency.
oF : Tuning starts only when
TUNER
is pushed.
OFF (default)
Modulation input (Data OFF)
Selects the desired connector(s) for modulation input
when SSB data/AM data mode is not in use.
M (MIC) : Use the signals from [MIC].
A (ACC) : Use the signals from [ACC] (pin11).
M A (MIC/ACC)
:
Use the signals from [MIC] and [ACC] (pin11).
U (USB) : Use the signals from [USB].
MIC/ACC (default)
Modulation input (Data ON)
Selects the desired connector(s) for modulation input
when SSB data/AM data mode is in use.
M (MIC) : Use the signals from [MIC].
A (ACC) : Use the signals from [ACC] (pin11).
M A (MIC/ACC)
:
Use the signals from [MIC] and [ACC] (pin11).
U (USB) : Use the signals from [USB].
ACC (default)
USB Level
Sets the input modulation level of the USB jack, within
0% to 100% in 1% steps.
50% (default)
Speech Level
This item adjusts the volume level for the speech function
from 0% to 100% in 1% steps.
50% (default)
Speech Language
This item selects language for the speech function.
You can select between English and Japanese as the
speech language.
En (English) : English announcement
JP (Japanese) : Japanese announcement
English (default)
