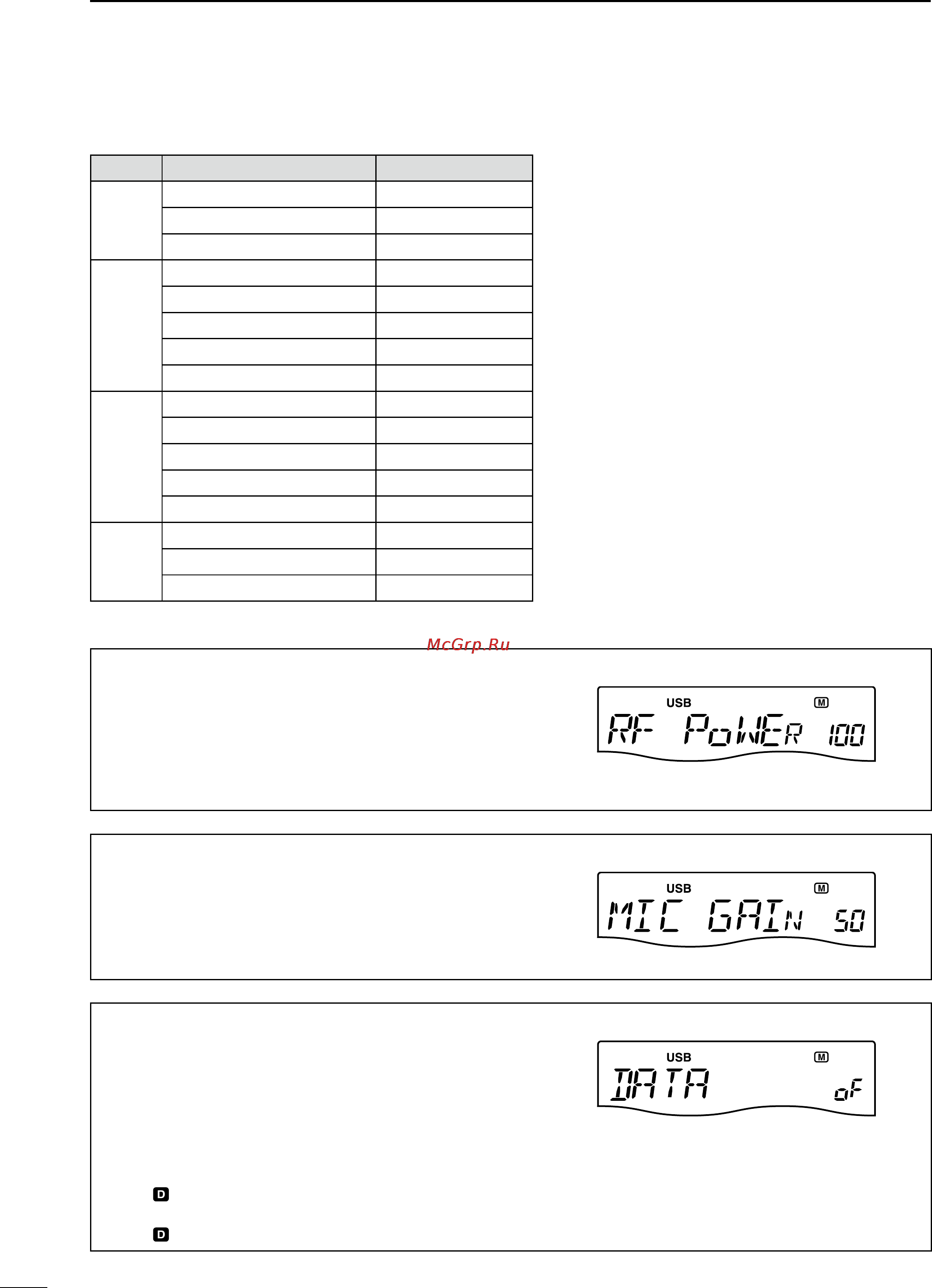

■ Quick set mode
Mode Set mode item Default setting
SSB
RF POWER 100%
MIC GAIN 50%
DATA MODE OFF
CW
RF POWER 100%
KEY SPEED 20WPM
CW PITCH 600Hz
SIDE TONE LEVEL 30%
SIDE TONE LIMIT ON
RTTY
RF POWER 100%
TWIN PEAK FILTER OFF
RTTY MARK TONE 2125Hz
RTTY SHIFT 170Hz
RTTY KEY POLARITY NORMAL
AM
RF POWER 100%
MIC GAIN 50%
DATA MODE OFF
RF power (all modes)
This item adjusts the RF output power. The RF output
power can be adjusted from L (Low), 1% to 100% in 1%
steps.
100% (default)
Mic gain (SSB/AM modes)
This item adjusts microphone gain from 0% to 100% in
1% steps.
50% (default)
Data mode (SSB/AM modes)
This item turns the data mode ON or OFF.
When the data mode is turned ON, the audio input from
the [ACC] connector* is used for transmission instead of
[MIC] connector and the speech compressor function is
turned OFF.
* The desired connector can be selected. (p. 77)
on : Data mode operation is enabled.
(“ ” appears.)
oF : Data mode operation is disabled.
(“ ” disappears.)
OFF (default)
