SET MODE

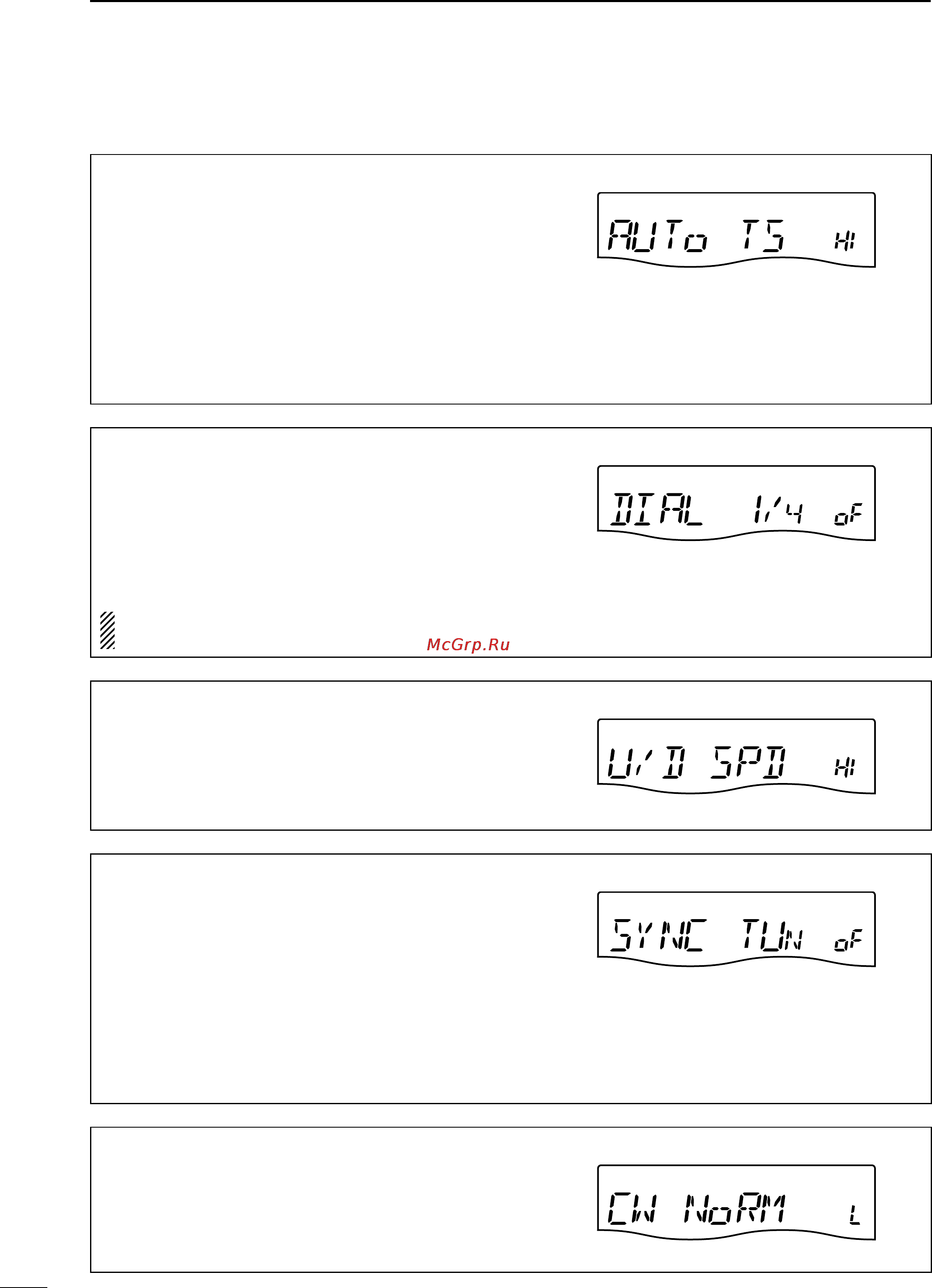

■ Set mode (Continued)
Main Dial Auto TS
This item sets the auto tuning step function. When ro-
tating [DIAL] rapidly, the tuning step rate adapts as se-
lected.
There are 2 type of auto tuning steps: HI (Fastest) and
Lo (Faster).
HI : Approx. 5 times faster when the tuning step is set to
1 kHz or smaller steps; approx. 2 times faster when
the tuning step is set to 5 kHz or larger steps.
Lo
: Approx. 2 times faster
oF : Auto tuning step is turned OFF.
High (default)
Dial ¼
This item turns the ¼-speed tuning function ON or OFF
in CW, RTTY and SSB data modes.
on : The ¼-speed tuning function ON for critical tuning.
While operating in CW/RTTY/SSB data, the dial
sensitivity is reduced to ¼ of normal.
oF
: The ¼-speed tuning function OFF.
NOTE: This function is only available when the pro-
grammable tuning step is OFF (p. 26).
OFF (default)
Mic Up/Down Speed
This item sets the rate at which frequencies are scanned
when the microphone [UP]/[DN] keys are pushed and
held.
HI : High speed (50 tuning steps/sec.)
Lo : Low speed (25 tuning steps/sec.)
High (default)
SSB/CW Synchronous Tuning
This item turns the displayed frequency shift function
from ON or OFF.
When this function is set to ON, the received signal
will remain the same even when the operating mode is
changed between SSB and CW.
The amount of frequency shift will change according to
the CW pitch setting.
on : The displayed frequency shifts when the operating
mode is changed between SSB and CW.
oF
: The displayed frequency does not shift.
OFF (default)
CW Normal Side
Selects the carrier point of CW mode from LSB and USB.
L (LSB) : LSB is the normal mode.
U (USB) : USB is the normal mode.
LSB (default)
