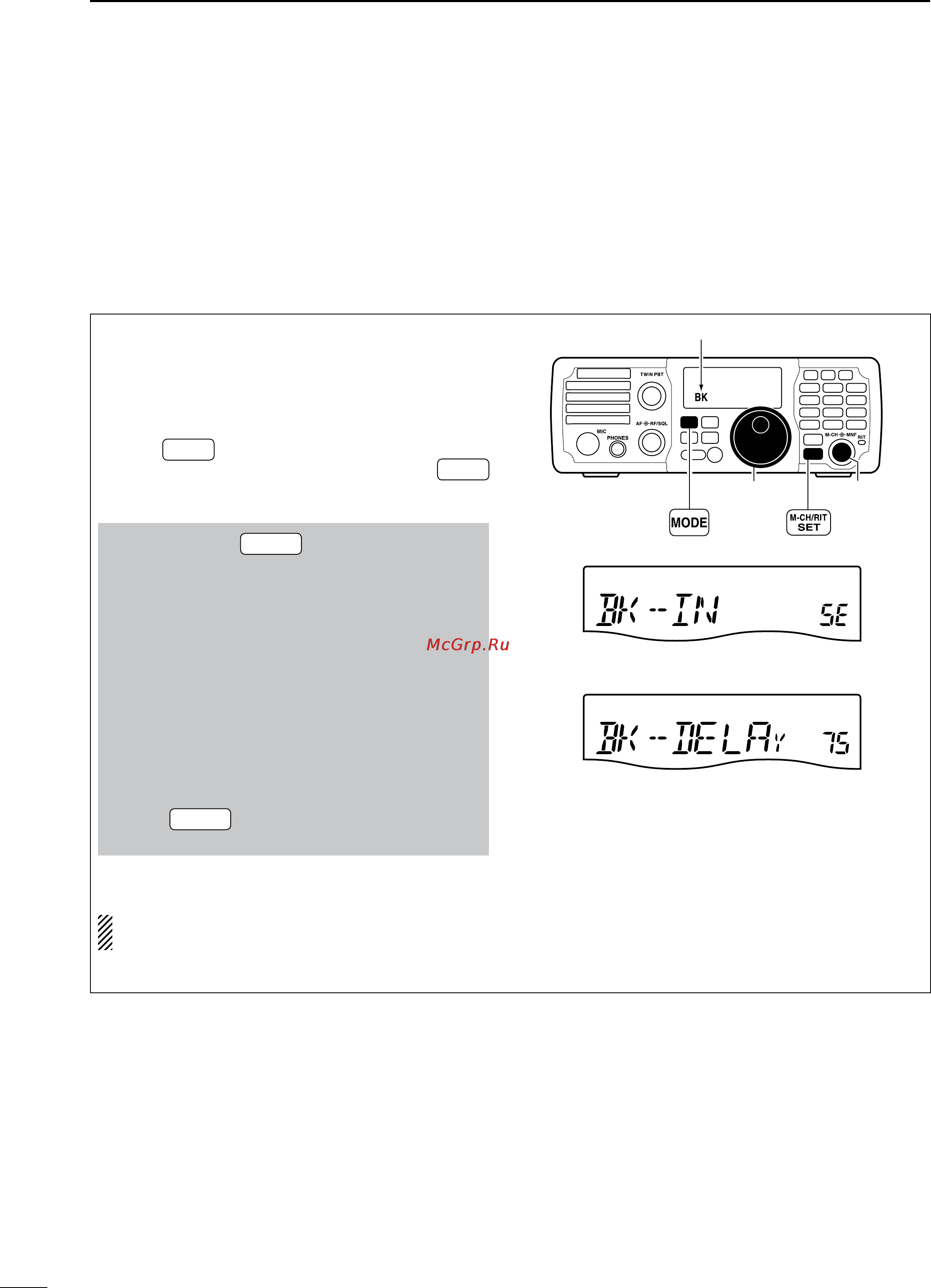

FUNCTIONS FOR TRANSMIT
■ Break-in function
The break-in function is used in CW mode to auto-
matically switch the transceiver between transmit and
receive when keying. The IC-7200 is capable of full
break-in or semi break-in. Break-in operation is also
referred to as QSK.
D Semi break-in operation
During semi break-in operation, the transceiver im-
mediately transmits when keying, then automati-
cally returns to receive after a pre-set delay time has
passed from when you stop keying. This is similiar to
VOX operation for voice.
q
Push
MODE
to select CW or CW-R mode.
• When CW mode is selected, push and hold
MODE
for 1 sec. to toggle between CW and CW-R modes.
w
Set the semi break-in function ON in the set mode.
q Push and hold
M-CH/RIT
SET
for 1 sec. twice to enter
the set mode.
w
Rotate [M-CH] to select “BK-IN” to set the CW
break-in operation.
e Rotate [DIAL] to select “SE.”
• FL : Full break-in
• SE
: Semi break-in
• OF
: Break-in OFF
r Rotate [M-CH] to select “BK-DELAY” to select
the CW delay time when semi break-in opera-
tion is selected in step e.
t Rotate [DIAL] to set the desired delay time.
• The delay time is selectable from 0.2 to 13.0 (dots)
in 0.1 (dots) steps.
y Push
M-CH/RIT
SET
to exit the set mode and return to
normal operation.
e “BK” appears on the LCD.
When using a paddle, set “KEY SPD” in the quick
set mode to adjust the keying speed. (p. 72)
MODE
TUNER
TS
FILTER
SPCH
V/M
A/B
SPLIT
M-CL
SCAN
SET
ATT
P
.
AMP
COMP
VOX
MNF
RIT
1
2
3
4
5 6
7
8
0
50
28
1814
10
21
24
=
7
3.5
1.8
F-INP
M-CH/RIT
ENT
BAND
GENE
9
.
AGC
MW
ANF
METER
NR
NB
[DIAL]
[M-CH]
Appears
7.5 dots
Semi break-in operation
