64
7
MEMORY OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

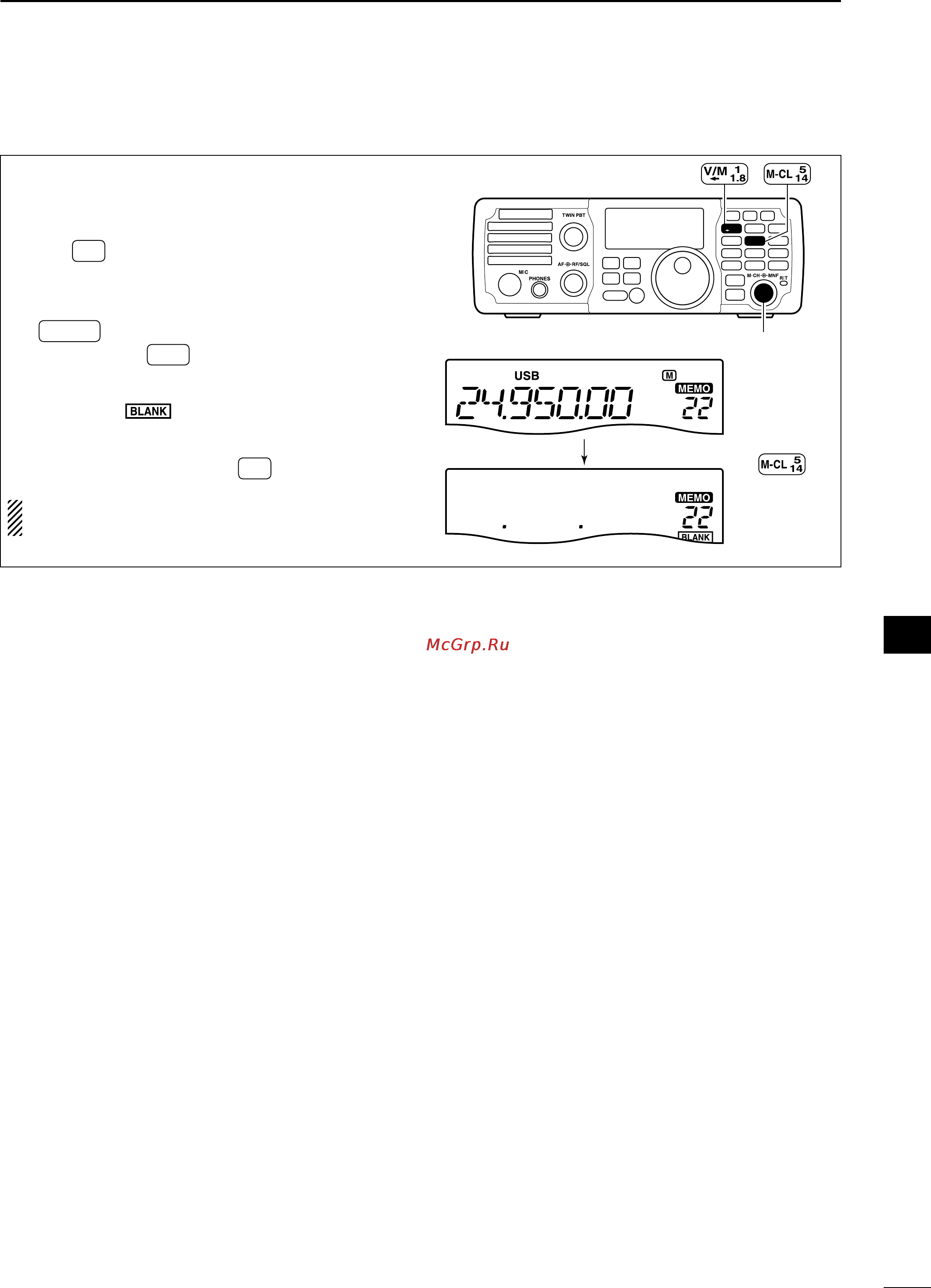

■Memory clearing
Any unnecessary memory channels can be cleared.
The cleared memory channels become blank chan-
nels.
q Push
V/M
➔
to select memory mode.
w
Rotate [M-CH] to select the desired memory
channel to be cleared.
• If the RIT control indicator lights orange, push
M-CH/RIT
SET
. (p. 61)
e Push and hold
M-CL
for 1 sec. to clear the con-
tents.
• The programmed frequency and operating mode dis-
appear and “
” appears.
• 3 beeps are emitted when memory clearing is suc-
cessful.
r
To return to VFO mode, push
V/M
➔
.
NOTE: Be careful!— the contents of cleared memo-
ries CANNOT be recalled.
MODE
TUNER
TS
FILTER
SPCH
V/M
A/B
SPLIT
M-CL
SCAN
SET
ATT
P
.
AMP
COMP
VOX
MNF
RIT
1
2
3
4
5 6
7
8
0
50
28
1814
10
21
24
=
7
3.5
1.8
F-INP
M-CH/RIT
ENT
BAND
GENE
9
.
AGC
MW
ANF
METER
NR
NB
[M-CH]
Push and hold
