Icom IC-7200 [65/104] Measuring swr
![Icom IC-7200 [65/104] Measuring swr](/views2/1074133/page65/bg41.png)
60
6
FUNCTIONS FOR TRANSMIT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

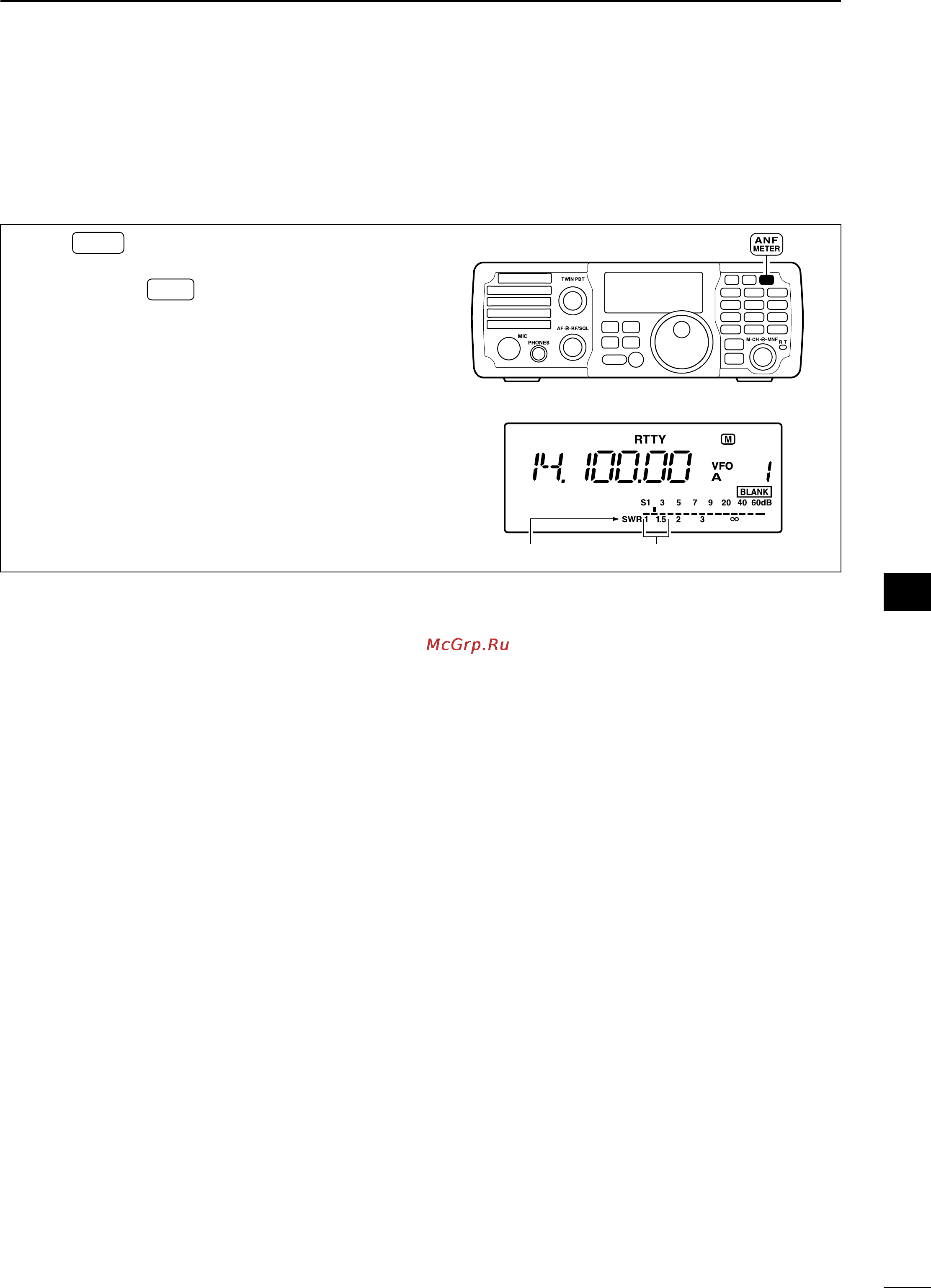

■Measuring SWR
The IC-7200 has a built-in circuit for measuring an-
tenna SWR—no external equipment is necessary.
q Push
MODE
to select RTTY mode.
w Confirm that the output power is over 30 W.
e
Push and hold
ANF
METER
for 1 sec. several times to
select the SWR meter.
r
Push [PTT] to transmit; then read the actual SWR
from the meter.
• ≤ 1.5 well-matched antenna
• >
1.5 may indicate an antenna out of its well-matched
frequency range. If much larger than 2.0, check an-
tenna and cable connections, etc.
MODE
TUNER
TS
FILTER
SPCH
V/M
A/B
SPLIT
M-CL
SCAN
SET
ATT
P
.
AMP
COMP
VOX
MNF
RIT
1
2
3
4
5 6
7
8
0
50
28
1814
10
21
24
=
7
3.5
1.8
F-INP
M-CH/RIT
ENT
BAND
GENE
9
.
AGC
MW
ANF
METER
NR
NB
Appears The best match is in this range.
