7
q TRANSMIT INDICATOR
Appears while transmitting.
w MODE INDICATORS
Shows the selected operating mode.
• “
” appears when SSB/AM data mode is se-
lected. (p. 71)
• “-R” appears when CW reverse or RTTY reverse
mode is selected. (pgs. 29, 35, 39)
e IF FILTER INDICATORS (p. 47)
Shows the selected IF filter.
➥ “
” appears when the wide IF filter is selected.
➥ “
” appears when the normal IF filter is se-
lected.
➥ “
” appears when the narrow IF filter is se-
lected.
r LOCK INDICA
TOR (p. 29)
Appears when the dial lock function is activated.
t MEMORY INDICATOR (p. 61)
Appears when memory mode is selected.
y MEMORY CHANNEL NUMBER READOUT
(p. 61)
Sho
ws the selected memory channel number.
u BLANK INDICA
TOR (p. 62)
Appears when the selected memory channel is
blank.
• This indicator appears both in VFO and memory mode.
i S/RF METER
➥
Shows receiving signal strength while receiving.
➥ Shows either transmit power meter (PO), SWR
or ALC while transmitting. (p. 30)
o NO
TCH INDICATORS (p. 51)
➥ “
” appears when the automatic notch func-
tion is activated.
➥ “ ” appears when the manual notch function
is activated.
!0 NOISE REDUCTION INDICA
TOR (p. 50)
Appears when the noise reduction is activated.
!1 NOISE BLANKER INDICATOR (p. 49)
Appears when the noise blanker is activated.
!2 TUNE INDICATOR (p. 67)
➥
Appears when the optional automatic antenna
tuner is activated.
➥ Blinks while tuning.
!3 RECEIVE INDICA
TOR
Appears while receiving a signal or when the
squelch is open.
!4 FREQUENCY READOUT
Shows the operating frequency.
■

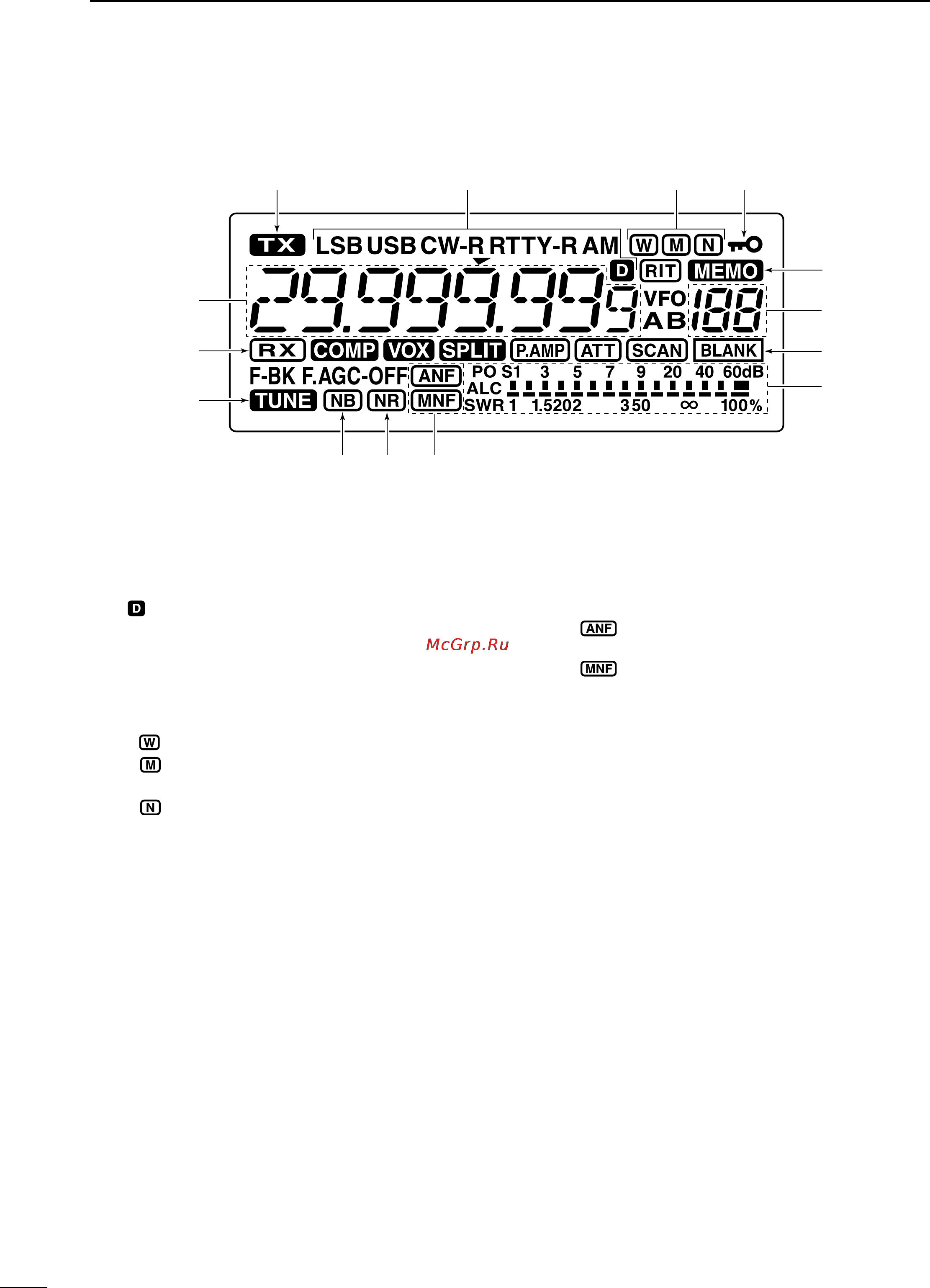

Function display
q w e r
t
i
u
y
!1 o!0
!2
!3
!4
1
PANEL DESCRIPTION
