Icom IC-7200 [86/104] Keyer type
![Icom IC-7200 [86/104] Keyer type](/views2/1074133/page86/bg56.png)
81
10
SET MODE
■ Set mode (Continued)

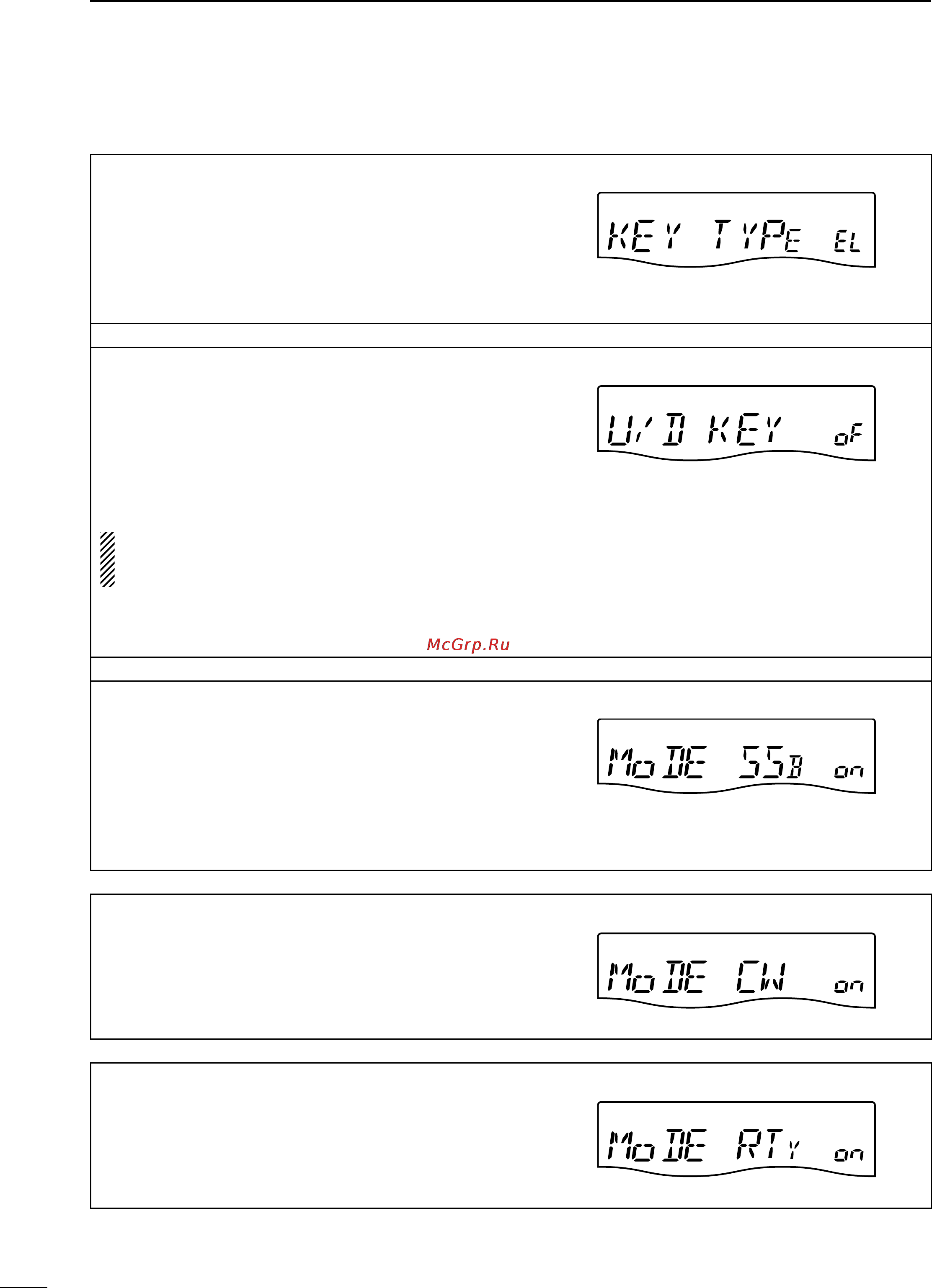

Keyer Type
This item selects the keyer type for the [KEY] connector
on the rear panel.
EL : Internal electronic keyer is selected.
bG : Internal electronic keyer is activated as BUG key.
St :
Internal electronic keyer is turned OFF, and a
straight key or external electronic keyer can be used.
ELEC-KEY (default)
Mic Up/Down Keyer
This item allows you to set the microphone [UP]/[DN]
switches to be used as a paddle.
on : [UP]/[DN] switches can be used as a paddle for CW
mode operation.
oF
: [UP]/[DN] switches cannot be used as a paddle for
CW mode operation.
NOTE: When “ON” is selected, the frequency and
memory channel cannot be changed using the [UP]/
[DN] switches.
See p. 82 for the CW paddle connection to the MIC con-
nector.
OFF (default)
Mode Select (SSB)
This item inhibits the selection of SSB (LSB/USB)
modes, and allows you to simplify operation.
For example if you are operating mobile and only plan on
using AM mode, set all other modes (SSB, CW, RTTY) to
OFF, thereby making selection of AM quick and easy.
on : SSB modes are selectable.
oF : SSB modes are inhibited.
ON (default)
Mode Select (CW)
This item inhibits the selection of CW/CW-R modes, and
allows you to simplify operation.
on : CW modes are selectable.
oF : CW modes are inhibited.
ON (default)
Mode Select (RTTY)
This item inhibits the selection of RTTY/RTTY-R modes,
and allows you to simplify operation.
on : RTTY modes are selectable.
oF : RTTY modes are inhibited.
ON (default)
