Icom IC-7200 [29/104] Selecting an operating band
![Icom IC-7200 [29/104] Selecting an operating band](/views2/1074133/page29/bg1d.png)
24
3
BASIC OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

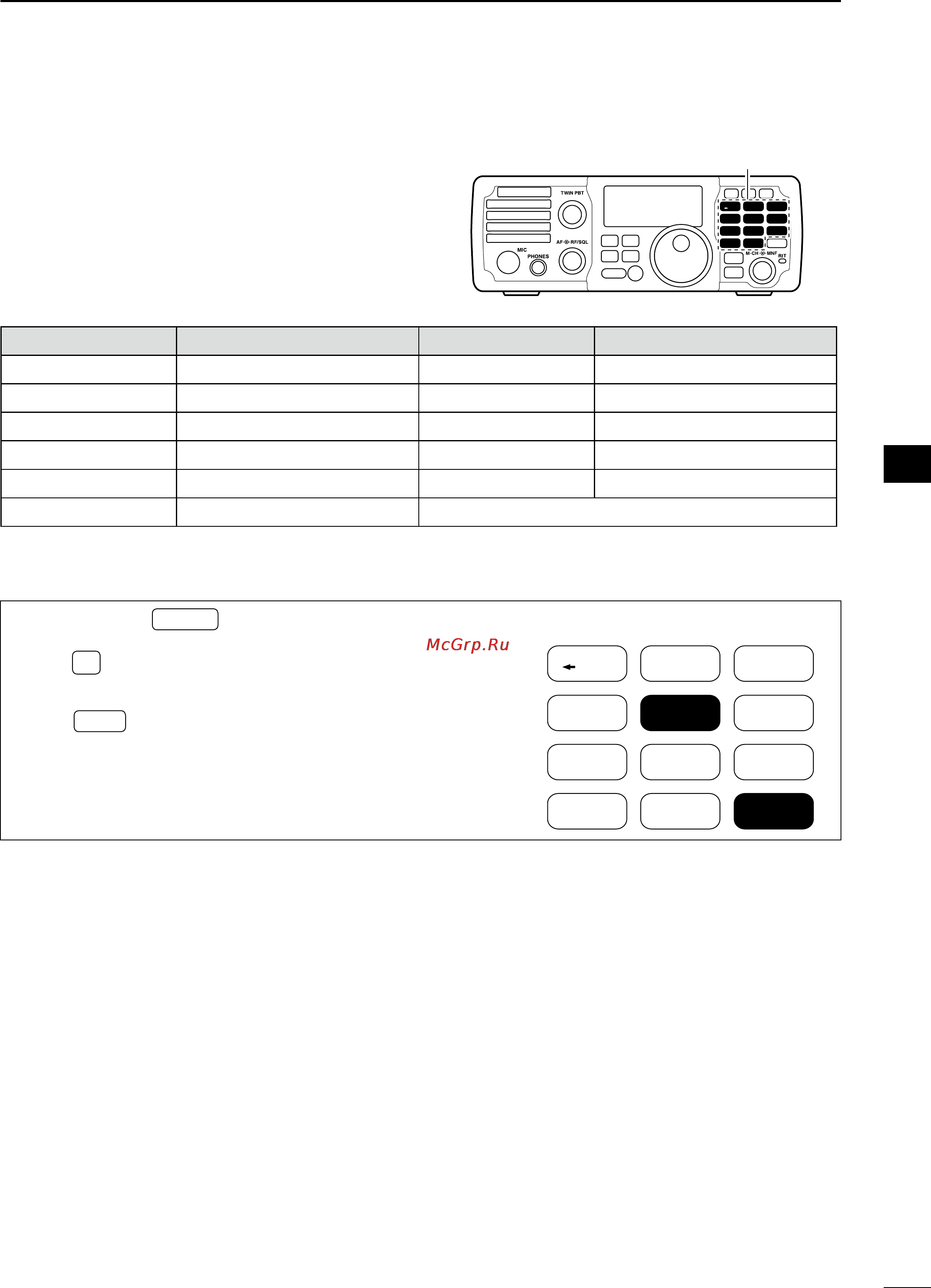

■ Selecting an operating band
The transceiver has a band stacking register. This
function automatically memorizes the last operating
frequency and mode used on a particular band.
This is convenient for contest operation.
See the table below for a list of the bands available
and the default settings for each register.
BAND REGISTER BAND REGISTER
1.8 MHz 1.900000 MHz CW 21 MHz 21.200000 MHz USB
3.5 MHz 3.550000 MHz LSB 24 MHz 24.950000 MHz USB
7 MHz 7.050000 MHz LSB 28 MHz 28.500000 MHz USB
10 MHz 10.120000 MHz CW 50 MHz 50.100000 MHz USB
14 MHz 14.100000 MHz USB General 15.000000 MHz USB
18 MHz 18.100000 MHz USB
D Using the band stacking register
q Push and hold
F-INP ENT
BAND
for 1 sec. to enter the
band selection mode.
w
Push
5
14
to select 14 MHz band.
• The last operated frequency and mode are memo-
rized.
e Push
MODE
to select an operating mode; rotate
[DIAL] to select an operating frequency.
V/M
A/B
SPLIT
M-CL
SCANCOMP
VOX
MNF
RIT
1
2
3
4
5 6
7
8
0
50
28
1814
10
21
24
=
7
3.5
1.8
F-INP ENT
BAND
GENE
9
.
AGC
MW
[Example]: 14 MHz band
MODE
TUNER
TS
FILTER
SPCH
V/M
A/B
SPLIT
M-CL
SCAN
SET
ATT
P
.
AMP
COMP
VOX
MNF
RIT
1
2
3
4
5 6
7
8
0
50
28
1814
10
21
24
=
7
3.5
1.8
F-INP
M-CH/RIT
ENT
BAND
GENE
9
.
AGC
MW
ANF
METER
NR
NB
Band keys
