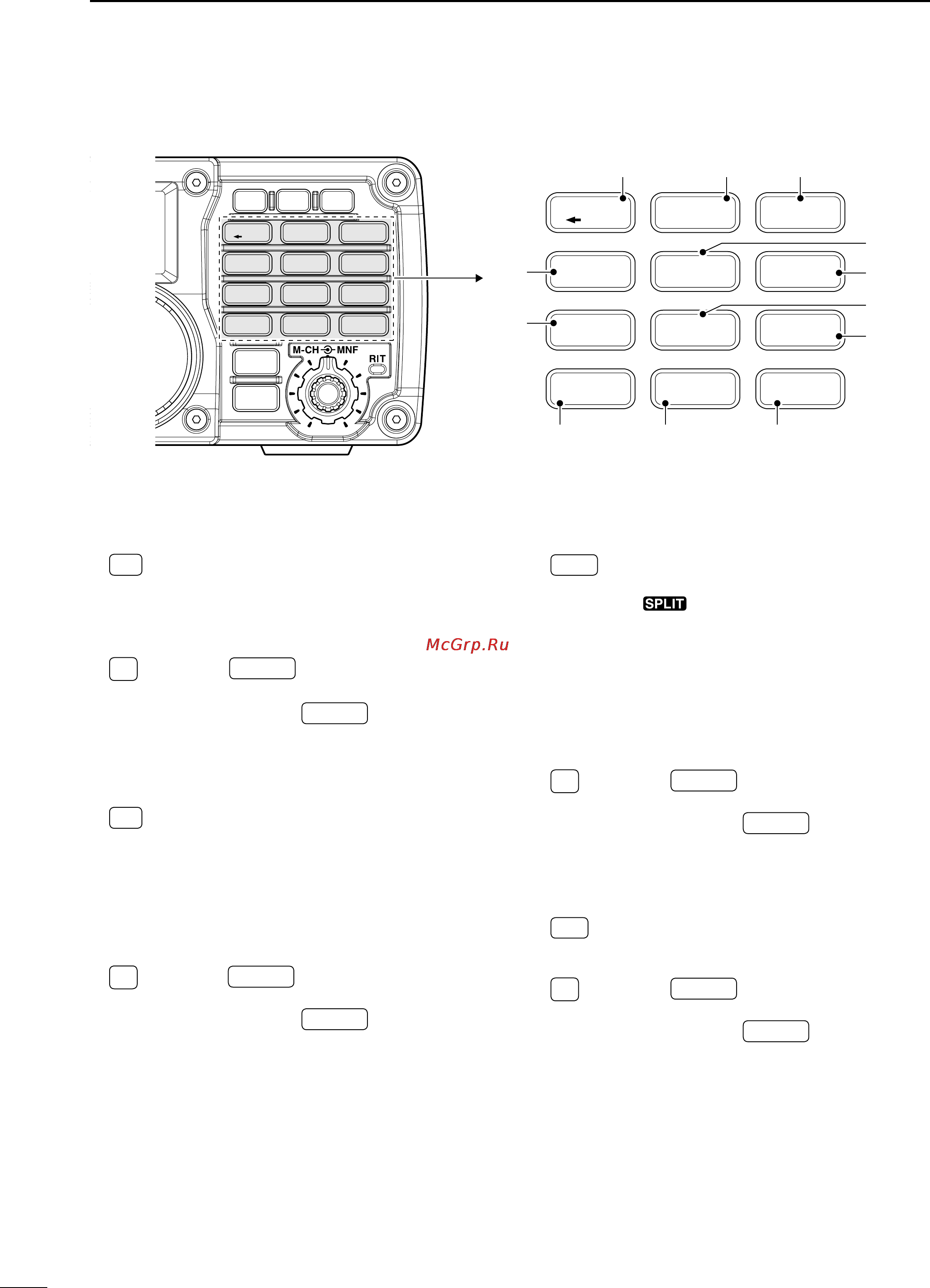

PANEL DESCRIPTION
@2 VFO/MEMOR
Y/1/1.8 MHz BAND KEY
V/M
➔
➥ Push to toggle the operating mode be-
tween VFO mode or memory mode.
(pgs. 23, 61)
➥ Push and hold for 1 sec. to copy the
memory contents to VFO. (p. 63)
1
1.8
➥ Push
F-INP ENT
BAND
, then push this key to in-
put the number ‘1.’ (p. 25)
➥
Push and hold
F-INP ENT
BAND
for 1 sec., then
push this key to select the 1.8 MHz band.
(p. 24)
@3
VFO SELECT/EQUALIZATION/2/3.5 MHz BAND KEY
A/B
=
➥ Push to toggle between VFO A and
VFO B. (p. 22)
➥ Push and hold for 1 sec. to equalize the
frequency and operating mode of the two
VFO’s. (p. 22)
• The undisplayed VFO frequency and operat-
ing mode are set the same as the displayed
VFO frequency and operating mode.
2
3.5
➥ Push
F-INP ENT
BAND
, then push this key to in-
put the number ‘2.’ (p. 25)
➥
Push and hold
F-INP ENT
BAND
for 1 sec., then
push this key to select the 3.5 MHz band.
(p. 24)
@4 SPLIT/3/7 MHz BAND KEY
SPLIT
➥ Push to toggle the split function ON and
OFF. (p. 58)
• “ ” appears on the display when the
split function is turned ON.
➥Push and hold for 1 sec. to activate the
quick split function. (p. 59)
• The VFO B frequency and operating mode
are set the same as the VFO A frequency
and operating mode.
• The quick split function can be turned OFF
in the set mode. (p. 76)
3
7
➥ Push
F-INP ENT
BAND
, then push this key to in-
put the number ‘3.’ (p. 25)
➥
Push and hold
F-INP ENT
BAND
for 1 sec., then
push this key to select the 7 MHz band.
(p. 24)
@5 MEMORY WRITE/4/10 MHz BAND KEY
MW
Push and hold for 1 sec. to store the dis-
played VFO frequency and operating mode
into the selected memory channel. (p. 62)
4
10
➥ Push
F-INP ENT
BAND
, then push this key to in-
put the number ‘4.’ (p. 25)
➥
Push and hold
F-INP ENT
BAND
for 1 sec., then
push this key to select the 10 MHz band.
(p. 24)
i7200
MODE
TUNER
TS
FILTER
SPCH
V/M
A/B
SPLIT
M-CL
SCAN
SET
ATT
P
.
AMP
COMP
VOX
MNF
RIT
1
2 3
4 5 6
7
8
0
50
28
1814
10
21
24
=
7
3.51.8
F-INP
M-CH/RIT
ENT
BAND
GENE
9
.
AGC
MW
ANF
METER
NRNB
V/M
A/B
SPLIT
M-CL
SCANCOMP
VOX
MNF
RIT
1
2 3
4 5 6
7
8
0
50
28
1814
10
21
24
=
7
3.51.8
F-INP ENT
BAND
GENE
9
.
AGC
MW
@9
@4@3@2
#0
#3
@6
@7
#2 #1
@8
@5
D Keypad
