8
3
PREPARATION
New2001

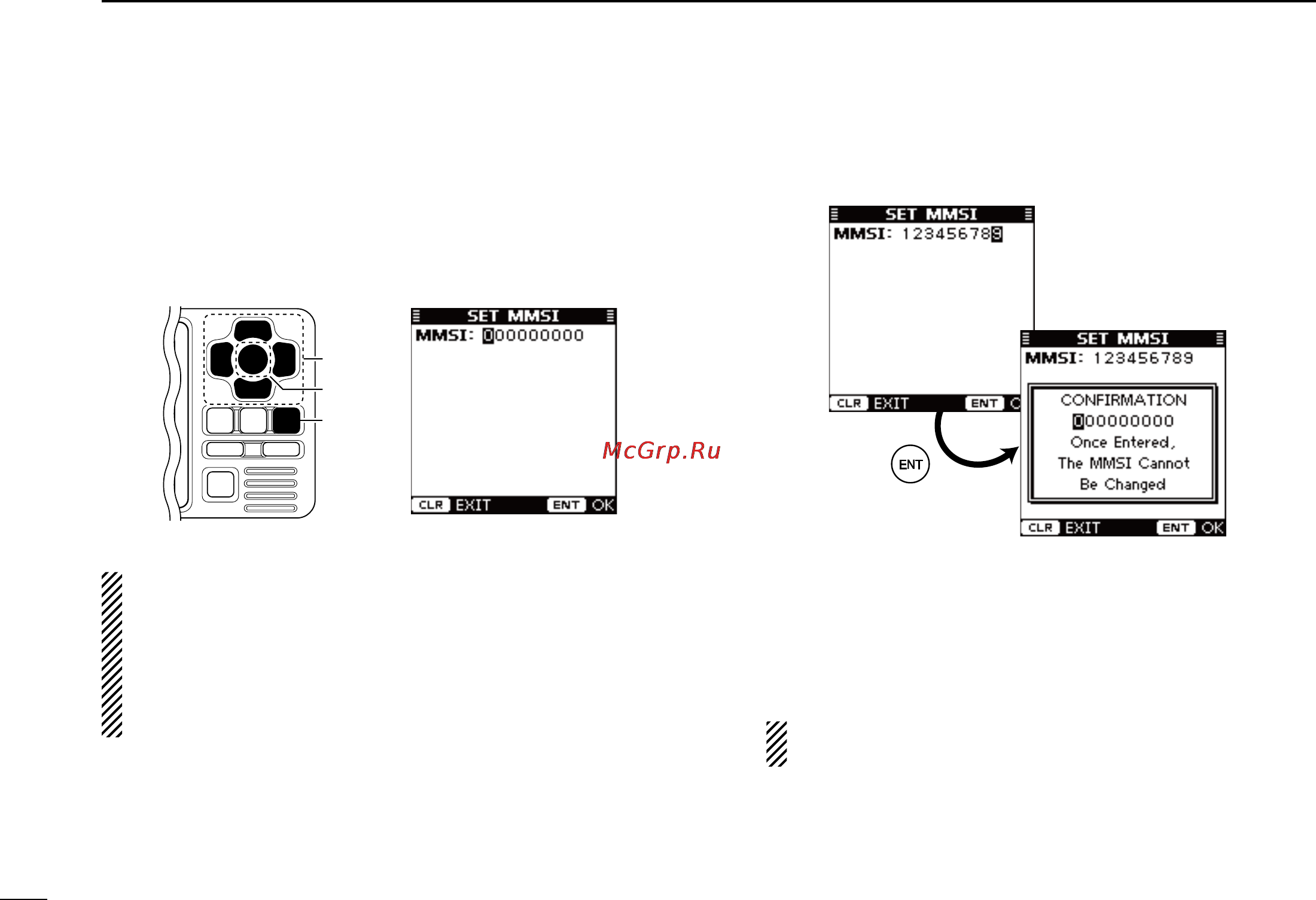

■ MMSI code setting (Continued)
r
Push [ENT] to enter the MMSI code setting mode.
t Push [∫] or [√]
to input
the specific 9-digit MMSI code.
•Push[≈] to move the cursor forward.
•Push[Ω] to move the cursor backward.
•Push[CLEAR] to cancel, and go to the plotter display. In this
case, the transponder operates as just an AIS receiver.
[CLEAR]
[ENT]
[∫], [√],
[Ω], [≈]
NOTE: The coast station ID or the group ID cannot be en-
tered as your MMSI code.
•GroupID :Therstonedigitis“0.”
•CoaststationID:Thersttwodigitsare“0.”
If you enter a code that starts with “0” or “00,” an error beep
sounds after pushing [ENT] in step y.
y After inputting the 9-digit code, push [ENT].
•TheMMSIconfirmationscreenappears.
u Input the same MMSI code which was entered in steps t
and y for the confirmation. Then, push [ENT] to save.
i After the MMSI code has been saved, the transponder au-
tomatically enters the Initial setting mode. See pages 9 to
13 for setting details.
The Initial setting mode can also be entered from the
Menu mode. (p. 9)
