27
5
OTHER FUNCTIONS
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

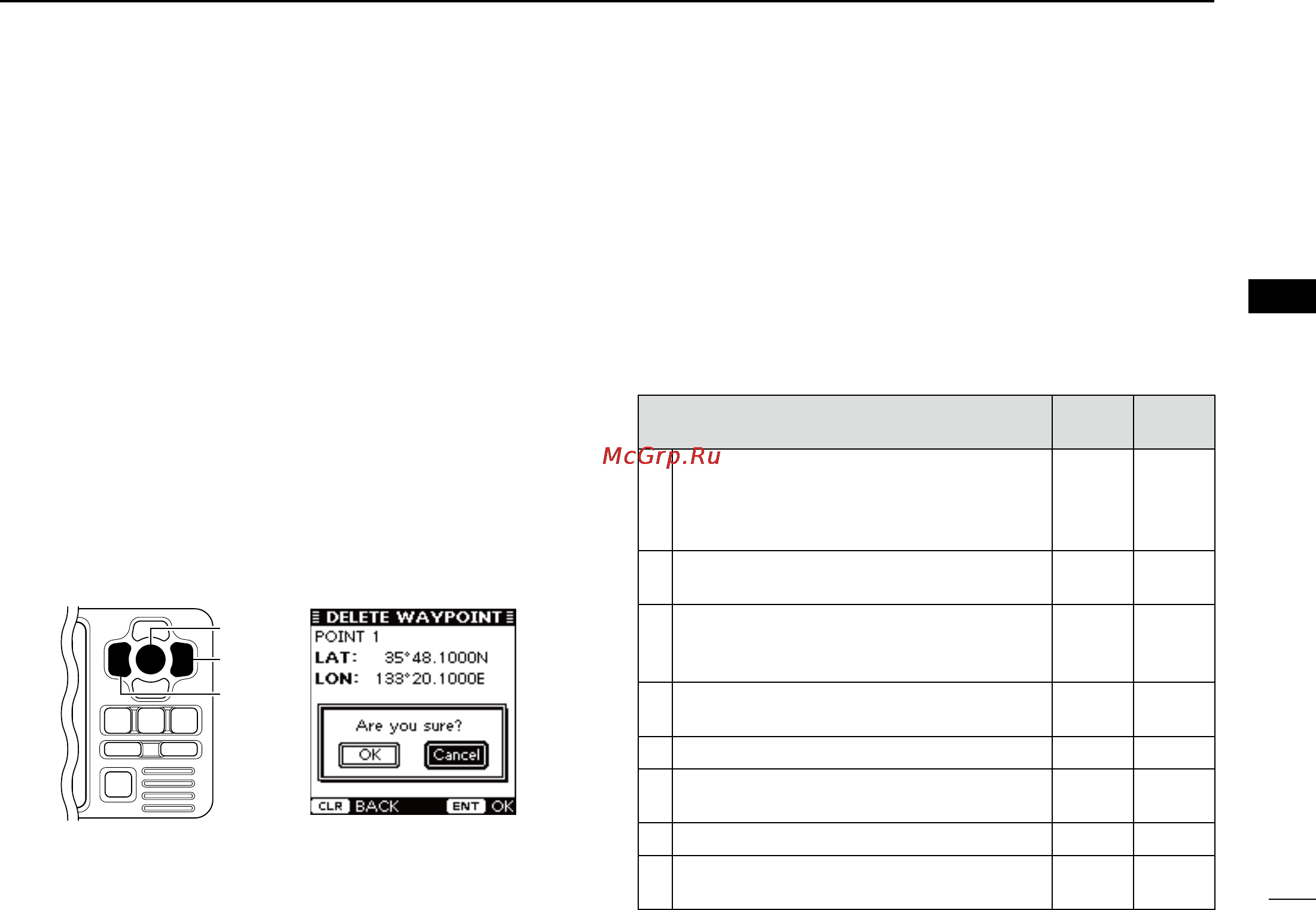

D Delete a waypoint
A waypoint can be deleted from the waypoint list.
q Push [MENU] to enter the Menu mode.
w Push [∫] or [√] to select “Waypoint,” then push [ENT].
e Push [∫] or [√] to select “Delete,” then push [ENT].
•The “DELETE WAYPOINT” list is displayed.
r Push [∫] or [√] to select the desired waypoint.
•Push [Ω] to sort the waypoint data by Name.
•Push [≈] to sort the waypoint data by Range.
t
Push [ENT] to display the detail screen of the selected way-
point.
y Push [ENT] to display the confirmation screen.
u Push [Ω] or [≈] to select “OK,” then push [ENT] to de-
lete the selected waypoint data and return to the “DELETE
WAYPOINT” list screen.
•Select“Cancel”tocanceldeleting.
[ENT]
[≈]
[Ω]
i Push [CLEAR] three times to exit the Menu mode.
■ Lost target
A vessel is regarded as a “Lost target” after a specified period
of time has passed since the vessel last transmitted data, as
described below.
The “Lost target” icon disappears from the plotter display
6minutesand40secondsafterthevesselwasregardedasa
“Lost target.” Ask your dealer for details.
The criteria to become a Lost target:
Vesseltype
Except
Class B
Class B
1
Except Class B :
Vessel is at anchor, moored
and moving less than 3 knots
ClassB :Vesselismoving lessthan
2 knots
18 min. 18 min.
2
Vessel is at anchor, moored and moving
more than 3 knots
1 min. N/A
3
Vesselis movingbetween 0and 14 knots
(ExceptClassB),orbetween2and14knots
(Class B)
1 min. 3 min.
4
Vesselis movingbetween 0and 14 knots
while changing course
1 min. N/A
5
Vesselismovingbetween14and23knots
36 sec. 90 sec.
6
Vesselismovingbetween14and23knots
while changing course
36 sec. N/A
7
Vesselismovingmorethan23knots
12 sec. 30 sec.
8
Vesselismovingmorethan23knotswhile
changing course
12 sec. N/A
