■ Plotter display operation (Continued)

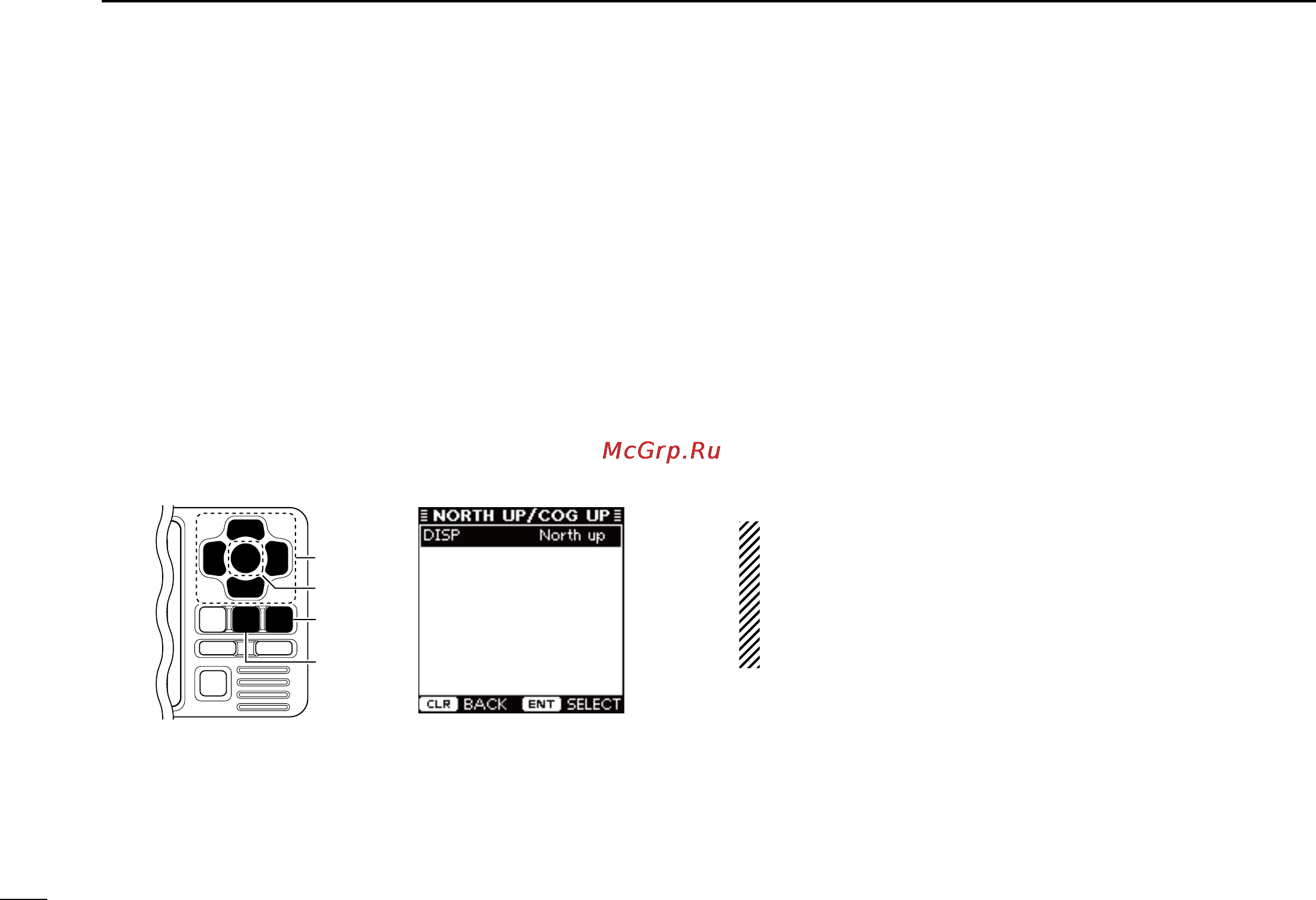

D Setting the display type (North up/COG up)

Select the display type between “North up” and “COG up.”

q Push [MENU] to enter the Menu mode.

w Push [∫] or [√]toselect“Northup/COGup,”thenpush

[ENT].

e Push [ENT] to select either “North up” or “COG up.”

 •Youcanalsoselecttheoptionbypushing[Ω] or [≈].

North up : The top of the plotter display represents North.

COG up : The top of the plotter display represents the di-

rection your course is heading.

r Push [CLEAR] to save and return to the Menu mode.

t Push [CLEAR] to exit the Menu mode.

[CLEAR]

[ENT]

[MENU]

[∫], [√],

[Ω], [≈]

■ Target list display operation

The target list display shows all AIS targets being detected

by the transponder, including their range and bearing infor-

mation.

The AIS target data is sorted by the distance from your ves-

sel, and the closest target is located on the top of the list.

Their range and bearing information is automatically updated

every 5 seconds, then the AIS target data is sorted.

qPush [DISP MODE] several times to select the target list

display.

w Push [∫] or [√] to select the desired AIS target.

e Push [ENT] to display it’s detail screen. (p. 17)

NOTE: The alarm buzzer sounds when a malfunction oc-

curs or an AIS target is closer than your CPA and TCPA

settings,dependingonthepresetting.(pp.29,30,33,44)

➥ To stop the alarm buzzer, push [CLEAR].

 •Ifthepopupscreenisdisplayed,push[CLEAR] again to turn

it OFF.
