BASIC OPERATION
4

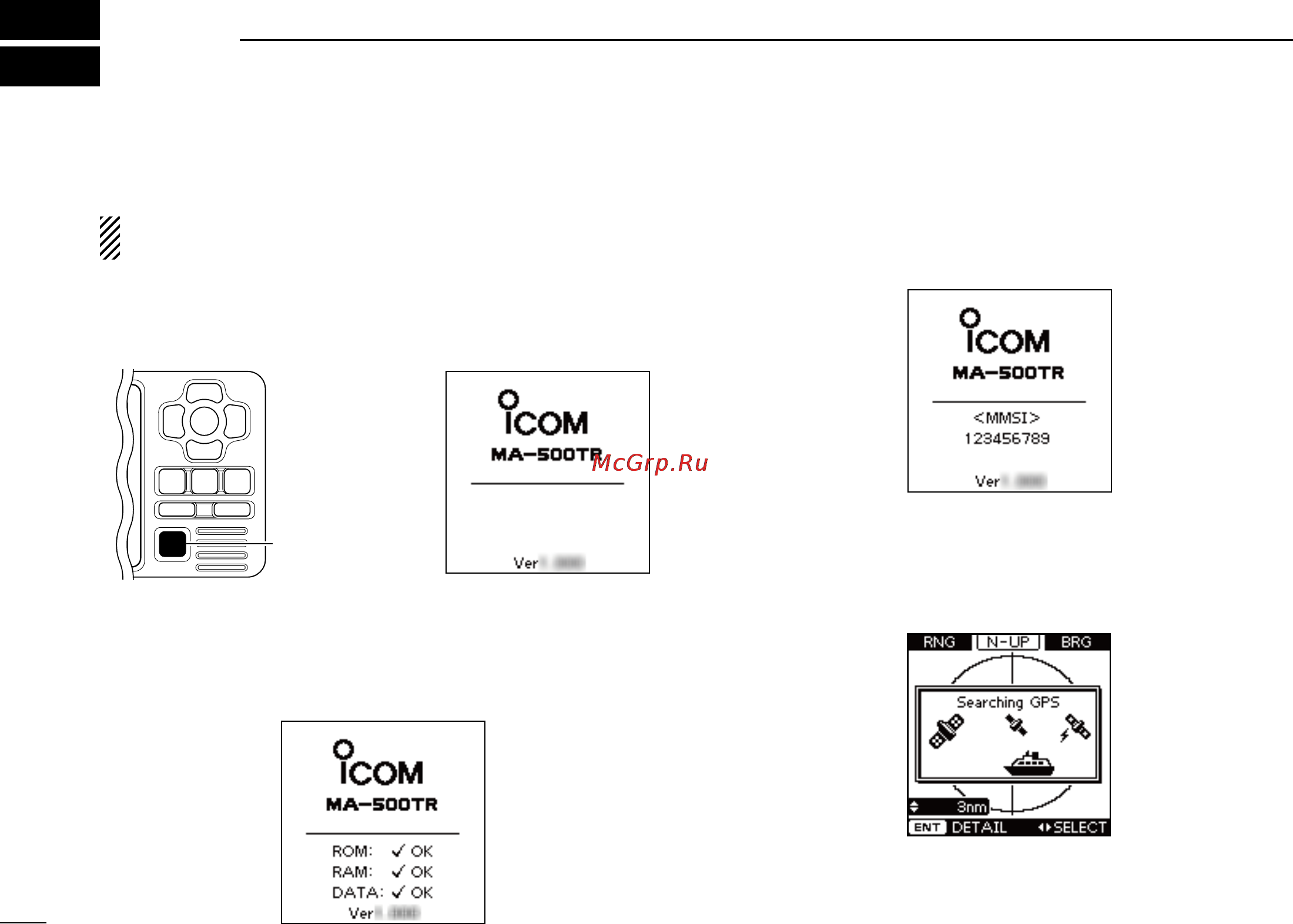

■ Turning power ON
IMPORTANT: BE SURE to connect the GPS receiver to
the transponder before turning the power ON. (p. 35)
q Hold down [POWER•BRILL] for 1 second to turn ON the
power.
•A long beep sounds, and the opening screen appears.
[POWER•BRILL]
w The opening screen displays the results of the ROM, RAM
and backup data test, “OK” or “NG” (No Good).
•
If “NG” is displayed, hold down [POWER•BRILL] for 1 second to turn
OFF the power, then ON again to reset the transponder. If there is no
change, contact your dealer or service center.
e After the opening test is completed, the MMSI code ap-
pears, if the code has already been set.
•“NoMMSI”appearswhennoMMSIcodeisset. (p. 7)
r The GPS search display appears while searching for a
GPS satellite.
•Whilesearching,theGPSinformationscreencanbedisplayed
by pushing [ENT], or you can enter the Menu mode by pushing
[MENU]. (pp. 28, 31)
t When the GPS receiver receives signals from a satellite,
the transponder automatically displays the position data
on the plotter display. (p. 15)
