MENU MODE OPERATION
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

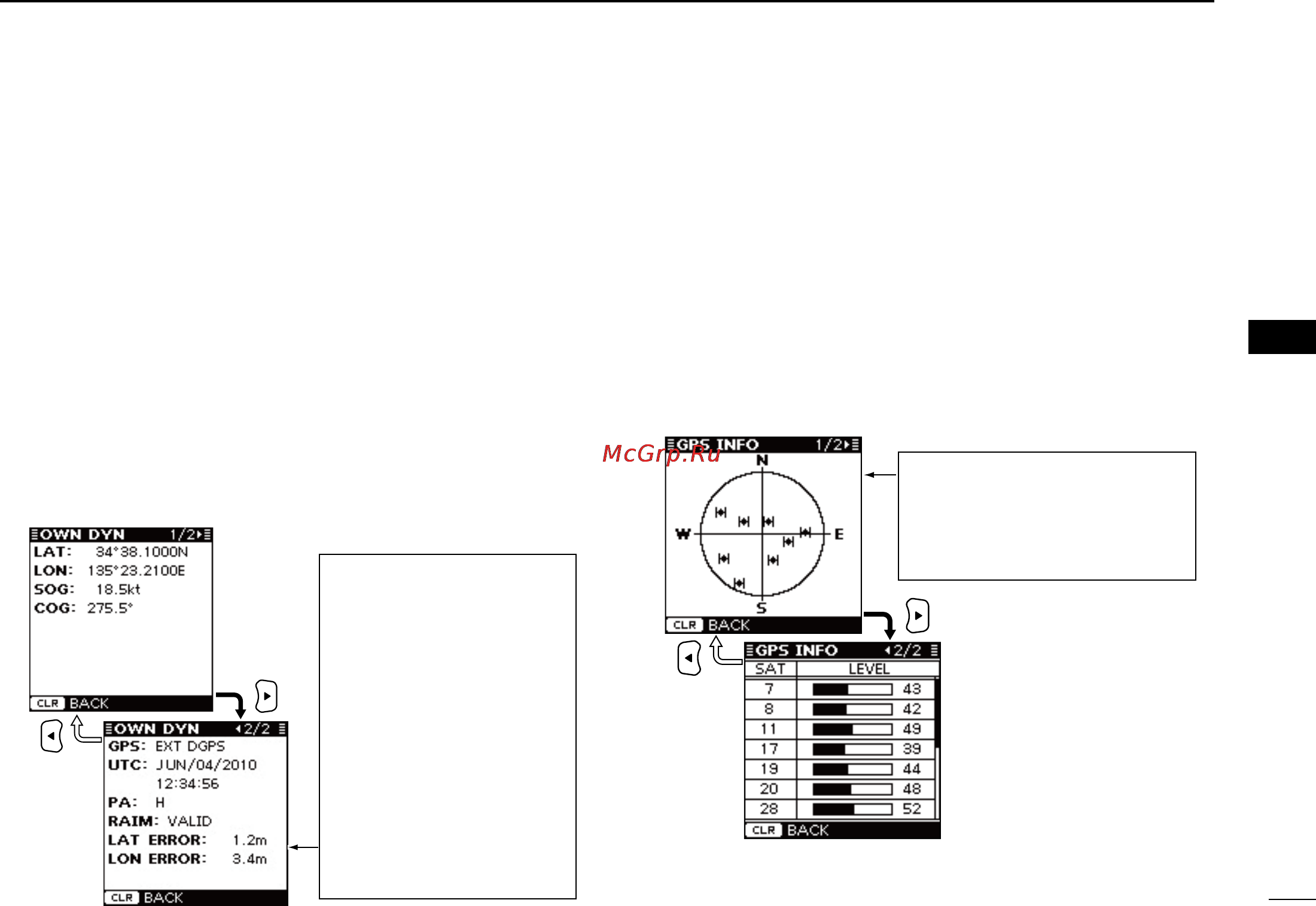

D Own Dynamic
This screen shows your dynamic vessel information such as
Latitude and Longitude data, SOG, COG, GPS receiver type,
UTC date and time, PA, RAIM (Receiver Autonomous Integ-
rity Monitoring) function availability and Latitude and Longi-
tude error data.
•AninternalGPShasnoRAIMfunction.When theinternalGPS is
used, “RAIM,” “LAT ERROR” and “LON ERROR” are not displayed.
•AnexternalGPSrequiresaRAIM
function
. When the external GPS
is used, “RAIM,” “LAT ERROR” and “LON ERROR” are displayed.
q When the Own Dynamic screen is displayed, push [≈] to
select the next page, or push [Ω] to select the previous
page.
w Push [CLEAR] to return to the Menu mode.
D GPS Information
The GPS Information screen shows the viewable GPS satel-
lite’s information, when the internal or external* GPS receiver
is connected.
* Only when the transponder receives the sentence format
“GSA”or“GSV”fromtheexternalGPSreceiver.
q When the GPS Information screen is displayed, push [≈]
to select the next page, or push [Ω] to select the previous
page.
•Theiconsofthesatellites being used, blink.
w Push [CLEAR] to return to the Menu mode.
SAT : Satellite number
LEVEL : Signal strength level
The GPS antenna of your vessel is
located in the center of the
North,
South, East and West screen
, and
the visible GPS satellite icons are
displayed.
When a non-differential GPS
receiver is connected, PA is
normally ‘L.’ However, if the
values of “LAT ERROR” and
“LON ERROR” are less than
5.0 meters (16.4 feet), PA
changes to ‘H.’
When a differential GPS re-
ceiver is connected, PA is
normally ‘H.’ However, if the
values of “LAT ERROR” and
“LON ERROR” are more
than15.0meters(49.2feet),
PA changes to ‘L.’
