30
6
MENU MODE OPERATION
New2001
■ Menu mode items
DCPA/TCPA(Continued)
• CPA, TCPA
Enter CPA (Closest Point of Approach) and TCPA (Time to
CPA) values.
These settings help you find a dangerous target to avoid a
collision. The icon blinks on the plotter display and/or the
alarm buzzer sounds, when the AIS target is closer than your
CPA and TCPA settings.
q Push [∫] or [√] to select either “CPA” or “TCPA.”
w Push [Ω] or [≈] to input the value into that item.
•CPA :Between0.1and6.0nm(in0.1nmsteps)
(default: 1.5 nm)
•TCPA:Between1and60minutes(in1minutesteps)
(default: 20 min)
e Repeat steps q and w to input the value into the other
item.
r Push [CLEAR] to save and return to the Menu mode.
[CLEAR]
[ENT]
[∫], [√],
[Ω], [≈]

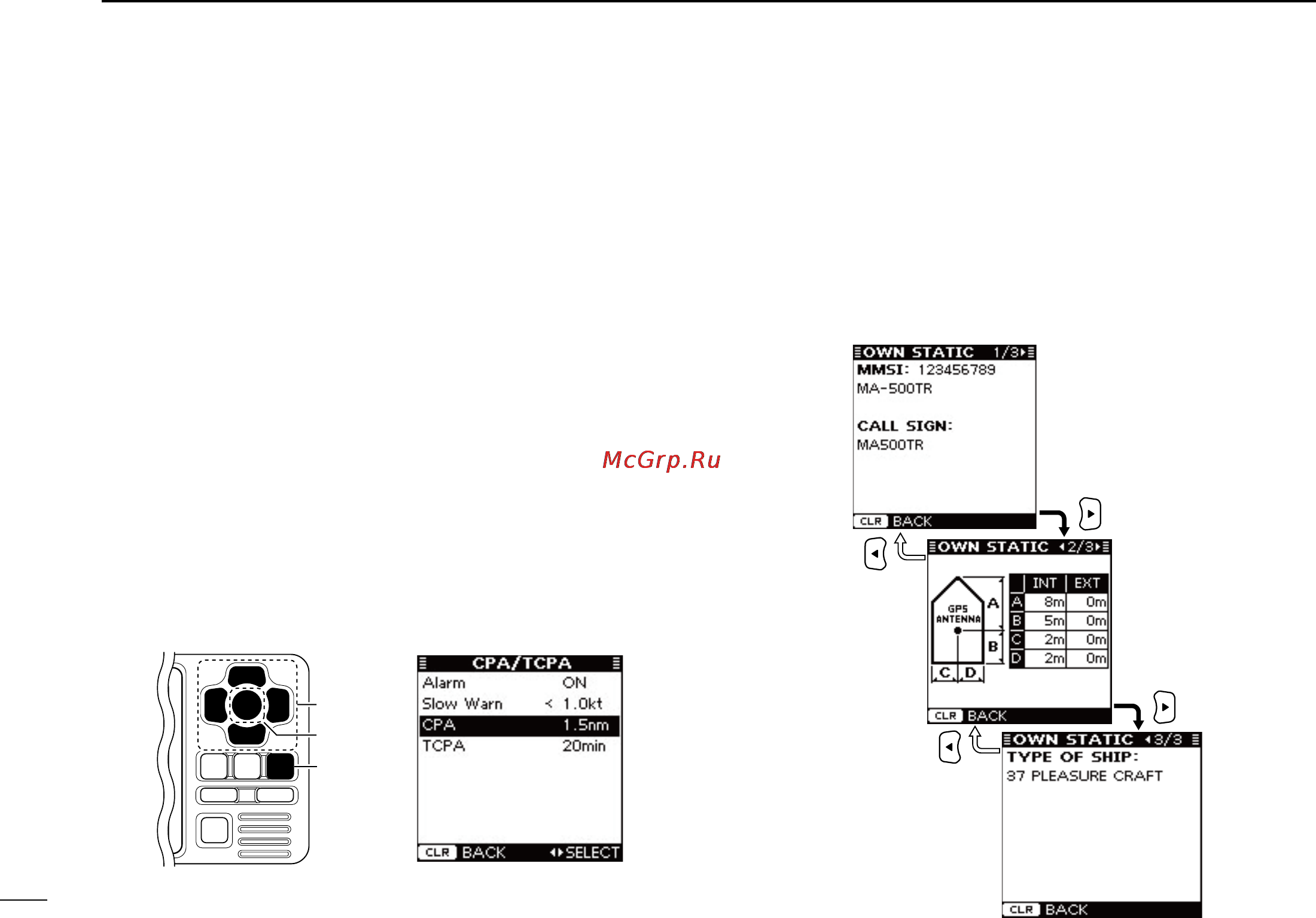

D Own Static
This screen shows your static vessel information such as
MMSIcode,VesselName,CallSign,Internal/ExternalGPS
antenna position and Type of Ship.
q
When the Own Static screen is displayed, push [≈] to se-
lect the next page, or push [Ω] to select the previous page.
w Push [CLEAR] to return to the Menu mode.
