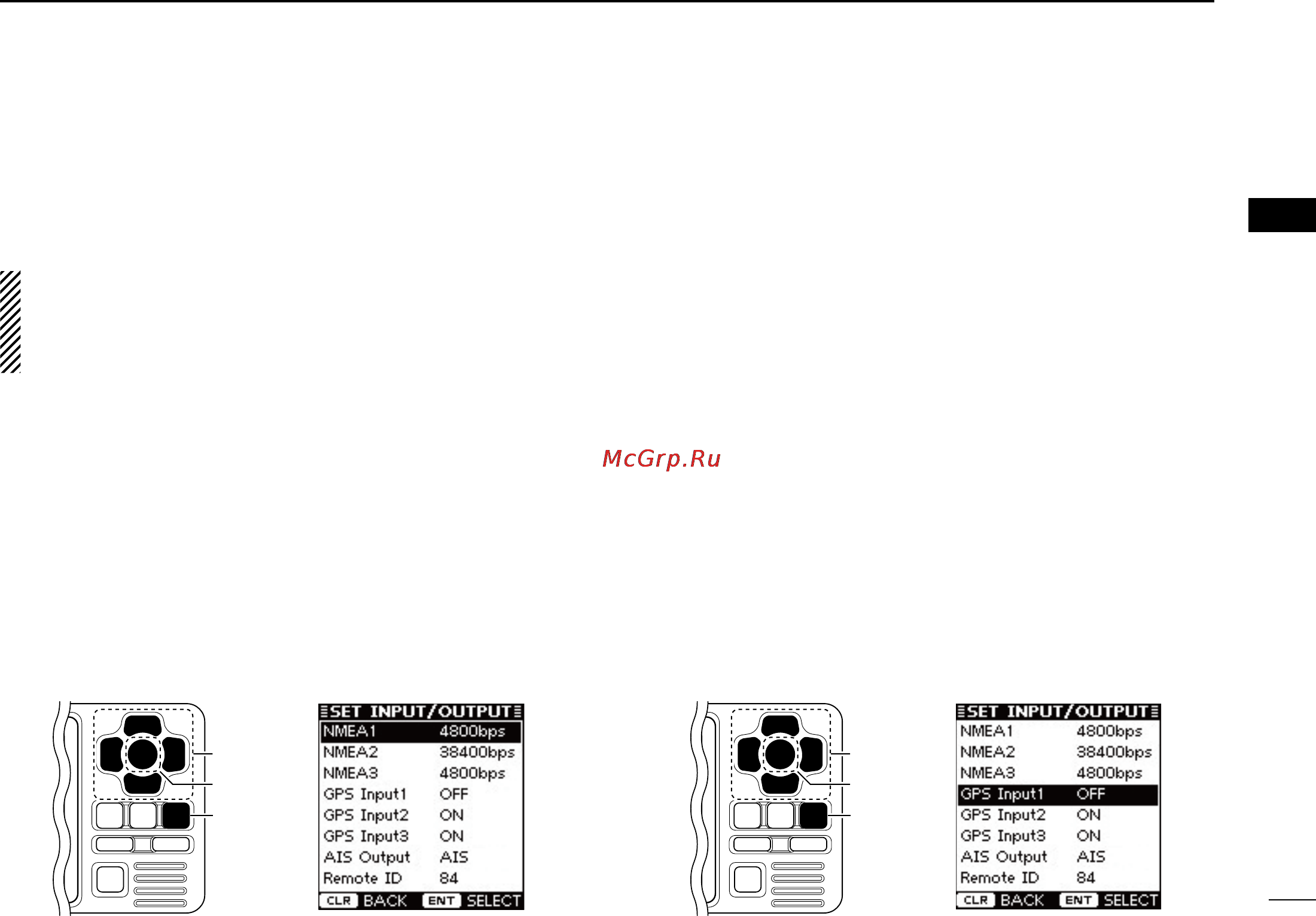

D NMEA Input/Output ports
• NMEA1/NMEA2/NMEA3 data speed
The data communication speed (baud rate) can be set for
eachInput/Outputport;NMEA1andNMEA3.
NOTE: The data communication speed of NMEA2 is fixed
to38400bps.NMEA2isused for communication between
the transponder and the Icom MarineCommander™ sys-
tem or a GPS receiver.
q P
ush [∫] or [√] to select “NMEA1” or “NMEA3.”
•NMEA1 : Used for communication between the transponder and
atransceiveroraGPSreceiver.(Default:4800bps)
•NMEA3 : Used for communication between the transponder and
a navigational equipment or a GPS receiver.
(Default:4800bps)
•Youcannotselect“NMEA2.”
w Push [ENT] to select the data communication speed be-
tween4800bpsand38400bpsintothatitem.
•Youcanalsoselecttheoptionbypushing[Ω] or [≈].
e Repeat steps q and w to set another port.
r
Push [CLEAR] to save and return to the Initial setting mode.
[CLEAR]
[ENT]
[∫], [√],
[Ω], [≈]
• GPS Input1/GPS Input2/GPS Input3
Set the NMEA1, NMEA2 and NMEA3 Input ports’ capability.
q P
ush [∫] or [√] to select “GPS Input1,” “GPS Input2” or
“GPS Input3.”
•
“GPS Input1” is for the NMEA1, “GPS Input2” is for the NMEA2
and “GPS Input3” is for the NMEA3 ports setting.
w Push [ENT] to toggle this function ON or OFF.
•Youcan alsoturnthe functionON bypushing[≈], or OFF by
pushing [Ω].
ON : The GPS information that is received from the ex-
ternal GPS receiver of the selected port is sent to
the transponder.
(Default for
“GPS Input2” and “GPS Input3”
)
OFF : The GPS information that is received from the ex-
ternal GPS receiver of the selected port is not sent
to the transponder. (Default for
“GPS Input1”
)
e Repeat steps q and w to set other ports’ capability.
r Push [CLEAR] to save and return to the Initial setting
mode.
[CLEAR]
[ENT]
[∫], [√],
[Ω], [≈]
