Icom MA-500TR [54/60] Specifications and option
![Icom MA-500TR [54/60] Specifications and option](/views2/1074305/page54/bg36.png)
New2001
46
New2001
SPECIFICATIONS AND OPTION
9
■ Specications
D General
•Frequencycoverage :161.975,162.025MHz(default)
156.025–162.025 MHz
•Typeofemission :
16K0GXW (GMSK)
•Currentdrain(at12Vnominal) :TX:1.5A,RX:0.7A
•Powersupplyrequirement :9.6to15.6VDC
(negative ground)
•Operatingtemperaturerange :
–20°Cto+60°C;–4°Fto+140°F
•Antennaimpedance :50ø nominal
•Intermediatefrequency
AIS1 :
1st:21.700MHz,2nd:450kHz
AIS2 :
1st:30.875MHz,2nd:450kHz
•Dimensions :165(W)× 110(H) × 123(D) mm,
(Projections not included) 6
1
⁄2(W) ×4
11
⁄32(H) ×4
27
⁄32(D) in
•Weight :Approximately1.0kg;2lb20oz
•I/Oconnector :High-densityD-sub15pin
D Transmitter
•Outputpower :2W
•Modulationsystem :GMSK
•
Conducted
Spurious emissions : Less than –36 dBm
D Receiver
•Sensitivity(20% Packet Error Rate) : –110 dBm
•Intermodulationrejectionratio :Morethan65dB
•
Spurious response rejection ratio
:Morethan74dB(AIS)
More than 70 dB (DSC)
•Adjacentchannelselectivity :Morethan70dB
•
Conducted spurious emission
: Less than –57 dBm (AIS)
This equipment meets IEC 62287-1 specifications.

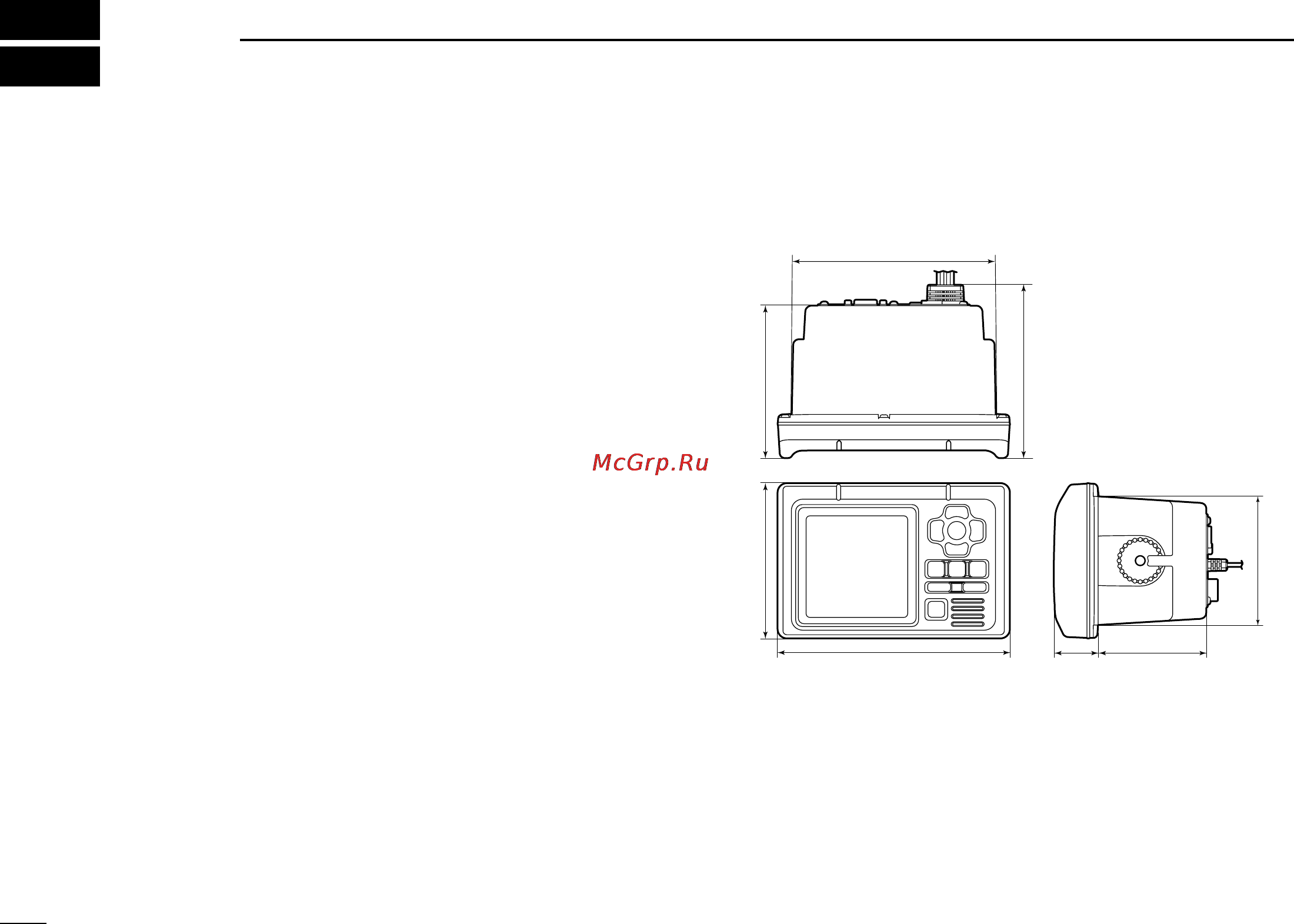

D Dimensions
Unit: mm (inch)
110 (4
11
⁄32) 108.4 (4
9
⁄32)
165 (6
1
⁄2)
145 (5
23
⁄32)
31.4
(1
1
⁄4)
91.4 (3
19
⁄32)
77 (3
1
⁄32)
123 (4
27
⁄32)
All stated specifications are subject to change without notice or obligation.
■ Option
• MB-75 f l u s h m o u n t k i t
Used to mount the transponder to a panel.
