40
7
INSTALLATION AND CONNECTIONS
New2001

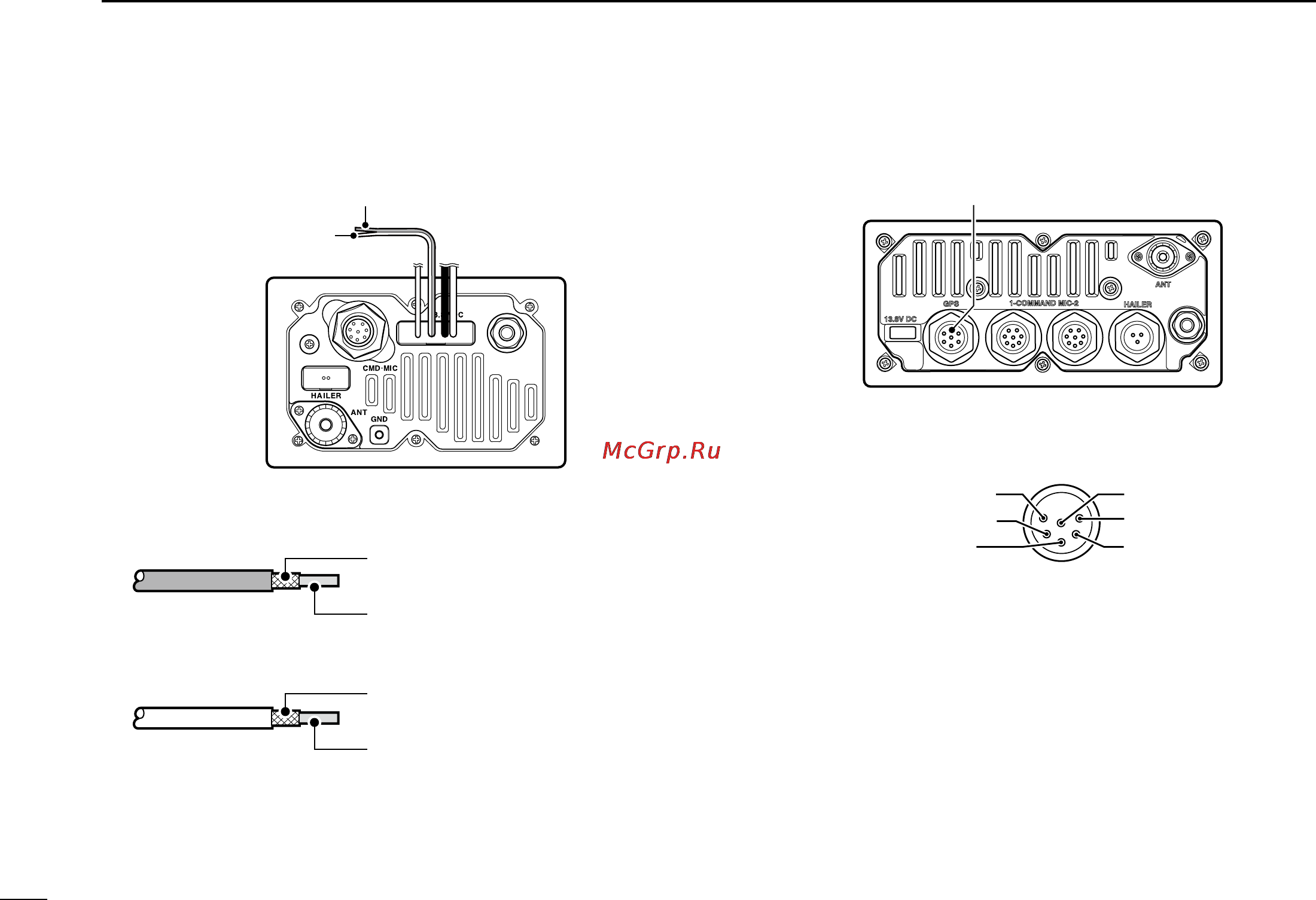

■ Transceiver connection (Continued)
D IC-M504/M505
Inner conductor: NMEA OUT (+)
Connects to lead 5 of OPC-2014.
Outer conductor: NMEA OUT (−)
Connects to lead 4 of OPC-2014.
Inner conductor: NMEA IN (+)
Connects to lead 3 of OPC-2014.
Outer conductor: NMEA IN (−)
Connects to lead 2 of OPC-2014.
NMEA IN LEAD (Red)
NMEA OUT LEAD
(White)
• NMEA IN LEAD (Red)
• NMEA OUT LEAD (White)
Transceiver’s rear panel
D IC-M603/M604
r NMEAOUT (+)
e NMEAOUT (–)
w NMEAIN (+)q NMEAIN (–)
SP (+)
SP (–)
r NMEA OUT (+)
Connects to lead 5 of OPC-2014.
e NMEA OUT (−)
Connects to lead 4 of OPC-2014.
w NMEA IN (+)
Connects to lead 3 of OPC-2014.
q NMEA IN (−)
Connects to lead 2 of OPC-2014.
GPS receiver/External speaker connector
• GPS receiver/External speaker connector
Transceiver’s rear panel
