18
4
BASIC OPERATION
New2001
■ About the detail screen (Continued)

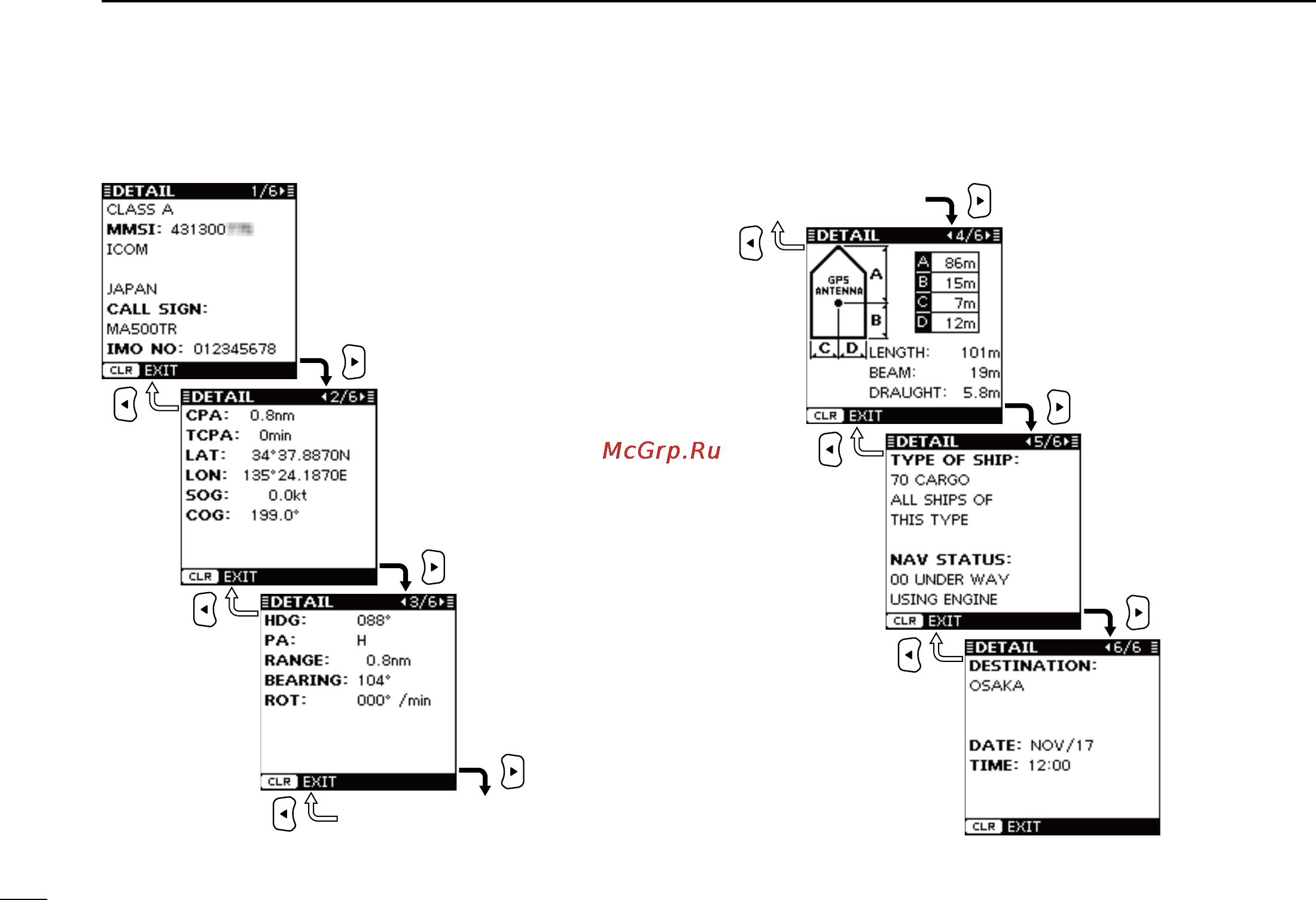

D The detail screens of “Class A” vessels
Detail screen 4/6
Detail screen 3/6
•AISClass
•MMSICode
•ShipName
•CountryName
•CallSign
•IMONumber
•CPA
•TCPA
•Latitude
•Longitude
•SpeedOverGround
•CourseOverGround
•Heading
•PositionAccuracy
(H: High, L: Low)
•Range
•Bearing
•RateOfTurn
•A:BowtoAntenna
•B:SterntoAntenna
•C:PortsidetoAntenna
•D:StarboardsidetoAntenna
•Length
•Beam
•Draught
•TypeofShip
•NavigationStatus
•Destination
•Date
•Time
